  • Passive Freq. Multiplier X3 (OUTPUT 300-450 MHz)

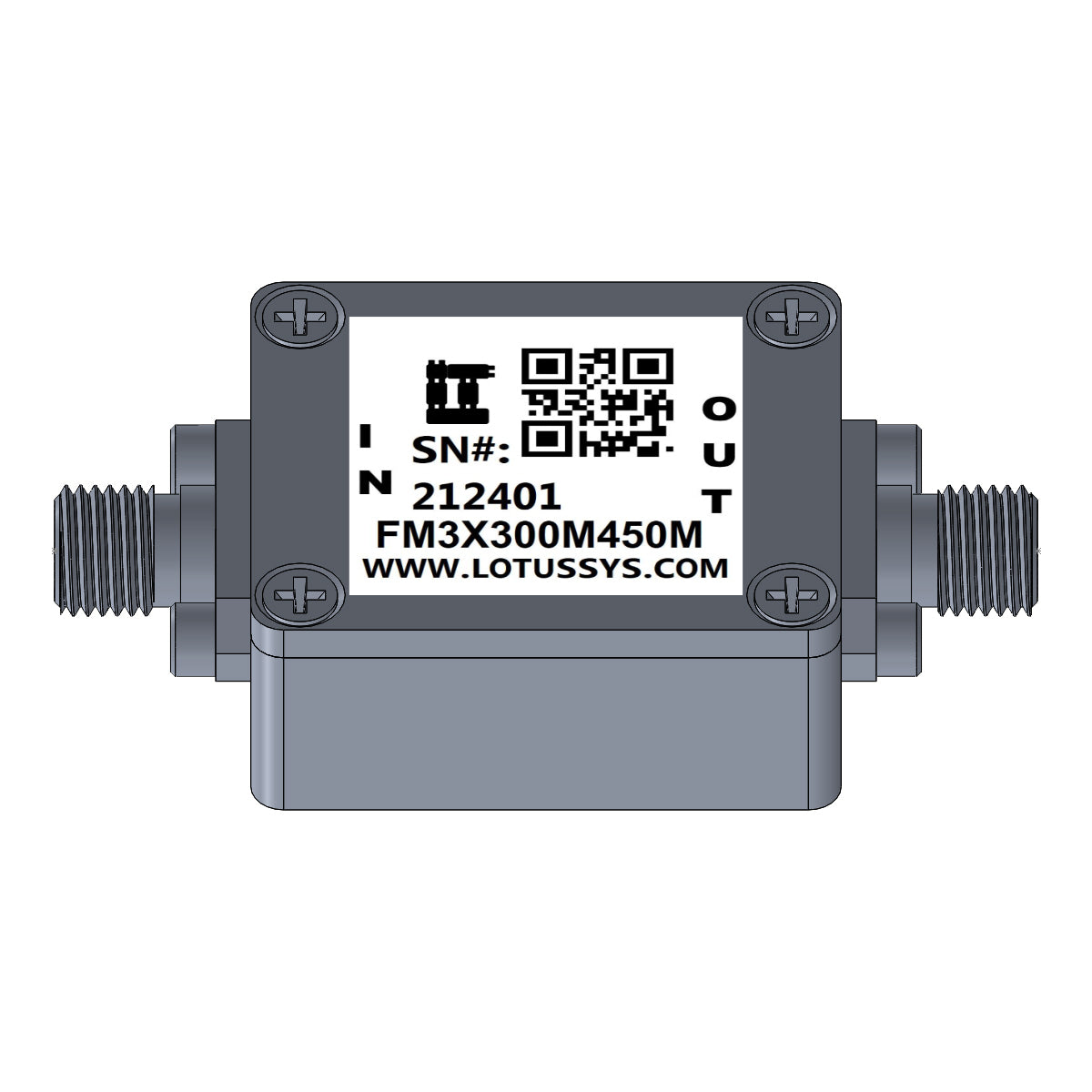

    Part Number#: FM3X300M450M Frequency Multiplier X3 with input frequency range from 100-150 MHz and output frequency range from 300-450 MHz.
    Enclosure is using RF Design Kit 6UED2W6H41SMAA2 with dimension 1.125"x0.9375x0.48".

    EMI Shielding (includes Weatherproofing)

    Features

    • Multiply by M: (M=3)
    • Input Power: +12 to +17 dBm
    • Input Frequency Range: 100-150 MHz
    • Output Frequency Range: 300-450 MHz
    • Conversion Loss: 13.2dB Typ.
    • Operating Temperature -40 to +85°C
    • EMI Shield (& Weatherproof) Option Available PN#: FM3X300M450MW (SKU#: AK20-021K)

    Applications

    • Synthesizer, Local Oscillators
    • Microwave Radio
    • Test Instrumentation
    • Satellite Communication/Software Defined Radio/Ham Radio

    Resources

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png FM3X300M450M Datasheet
