Passive Freq. Multiplier X3 (OUTPUT 27-36 MHz)

Passive Freq. Multiplier X3 (OUTPUT 27-36 MHz)

Passive Freq. Multiplier X3 (OUTPUT 27-36 MHz)

$ 169.00 USD

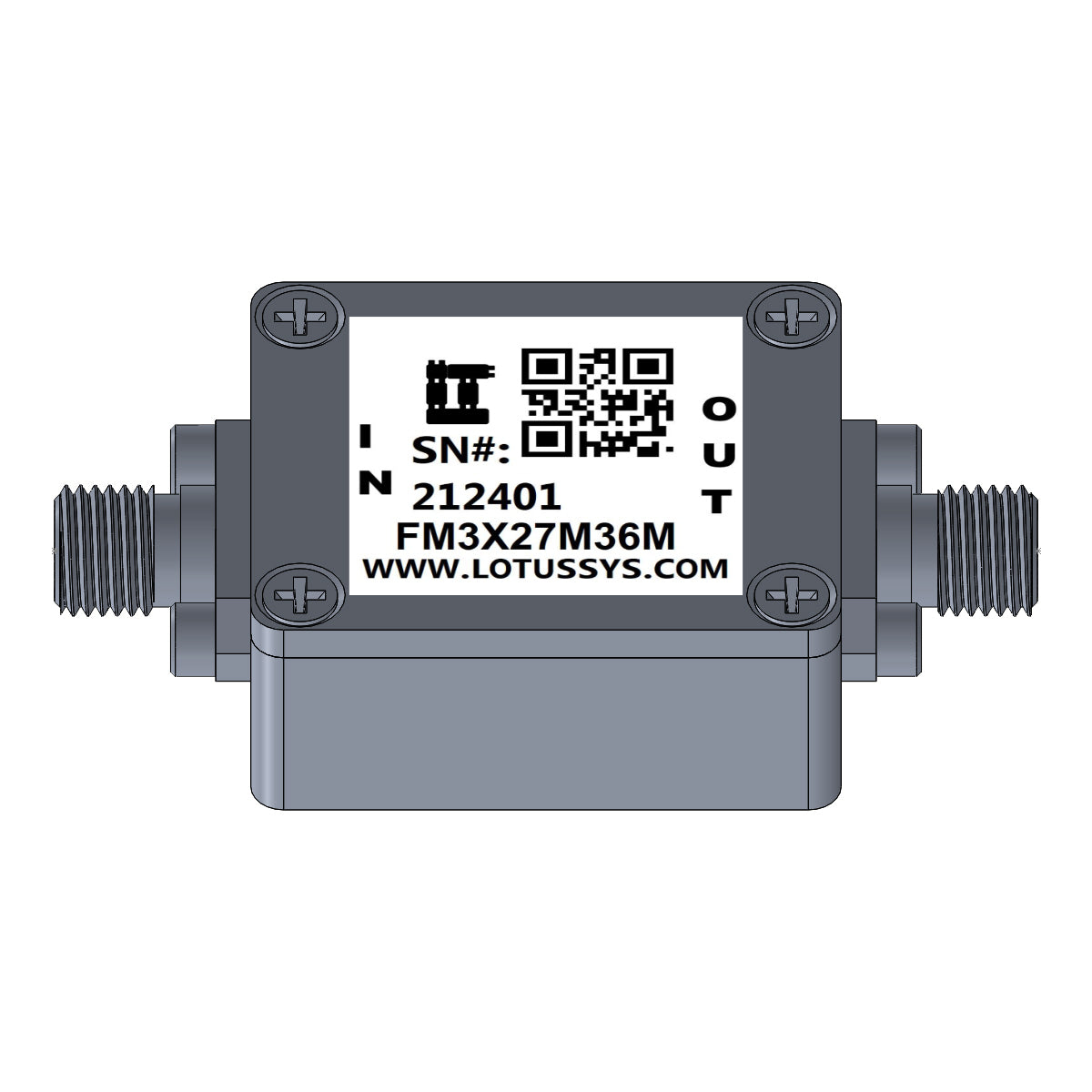

Part Number#: FM3X27M36M Frequency Multiplier X3 with input frequency range from 9-12 MHz and output frequency range from 27-36 MHz.
Enclosure is using RF Design Kit 6UED2W6H41SMAA2 with dimension 1.125"x0.9375x0.48". SKU#: AK20-014H.

Collections: Frequency Multipliers

Features

Multiply by M: (M=3)
Input Power: +12 to +17 dBm
Input Frequency Range: 9-12 MHz
Output Frequency Range: 27-36 MHz
Conversion Loss: 14dB Typ.
Operating Temperature -40 to +85°C
EMI Shield (& Weatherproof) Option Available. PN#: FM3X27M36MW

Applications

Synthesizer, Local Oscillators
Microwave Radio
Test Instrumentation
Satellite Communication/Software Defined Radio/Ham Radio

Resources

FM3X27M36M Datasheet
