  • Freq. Multiplier X2 (OUTPUT 2.6G to 7.2GHz) FM2X2P6G7P2G

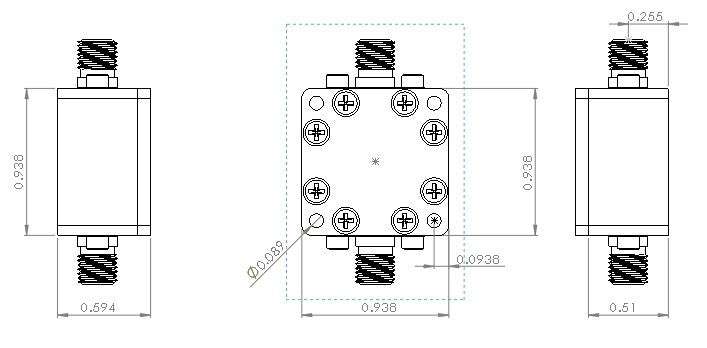

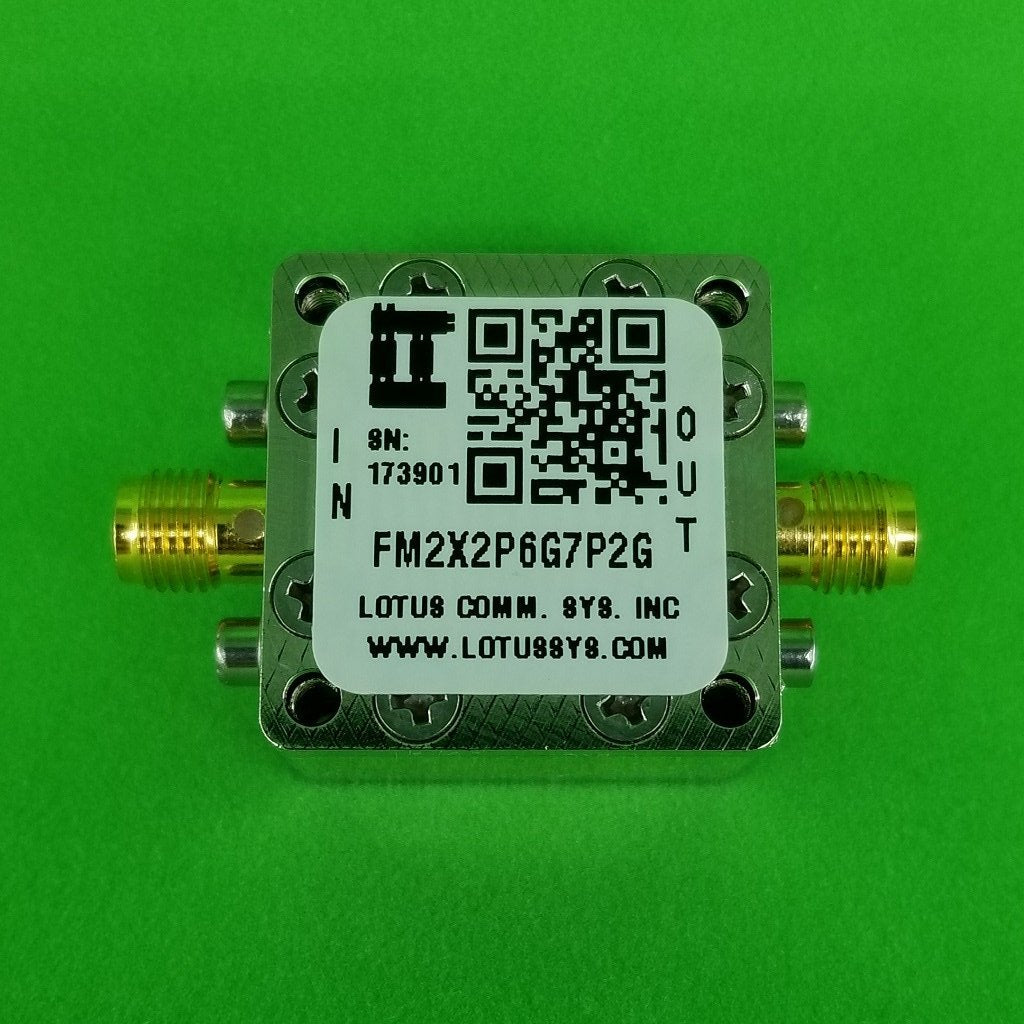

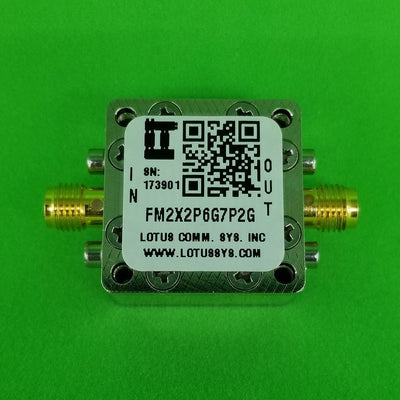

    PN#: FM2X2P6G7P2G Frequency Multiplier X2 with input frequency range from 1.3 GHz to 3.6 GHz. Enclosure is using RF Design Kit 6UDD2W6S1P2 with dimension 0.9375"x0.9375x0.59". The frequency divider includes the RF Enclosure as shown in picture.  SKU#: AK20-001K.

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).

    6 items left

    Features

    • Multiply by M: (M=2)
    • Input Frequency Range: 1.3 GHz to 3.6 GHz
    • Output Frequency Range: 2.6 GHz to 7.2 GHz
    • Input Power Range: Min. +9 dBm, Max. +13 dBm
    • Operating Temperature -40 to +85C

    Applications

    • Synthesizer, Local Oscillators
    • Microwave Radio
    • Test Instrumentation
    • Satellite Communication/Software Defined Radio/Ham Radio

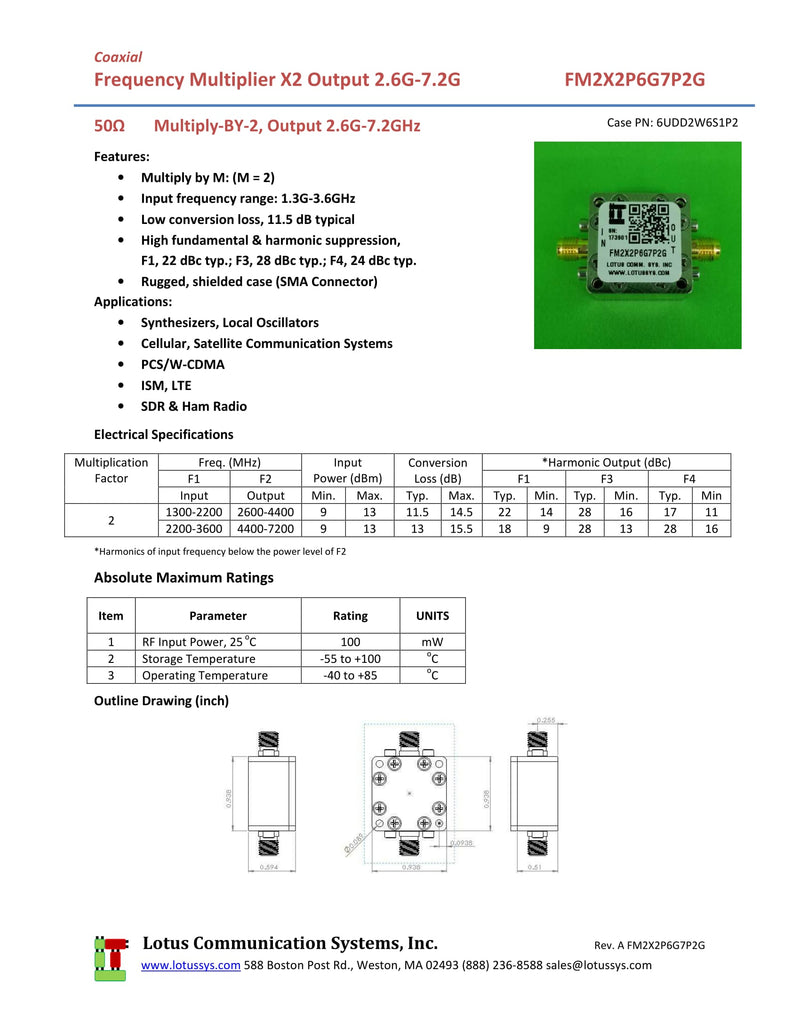

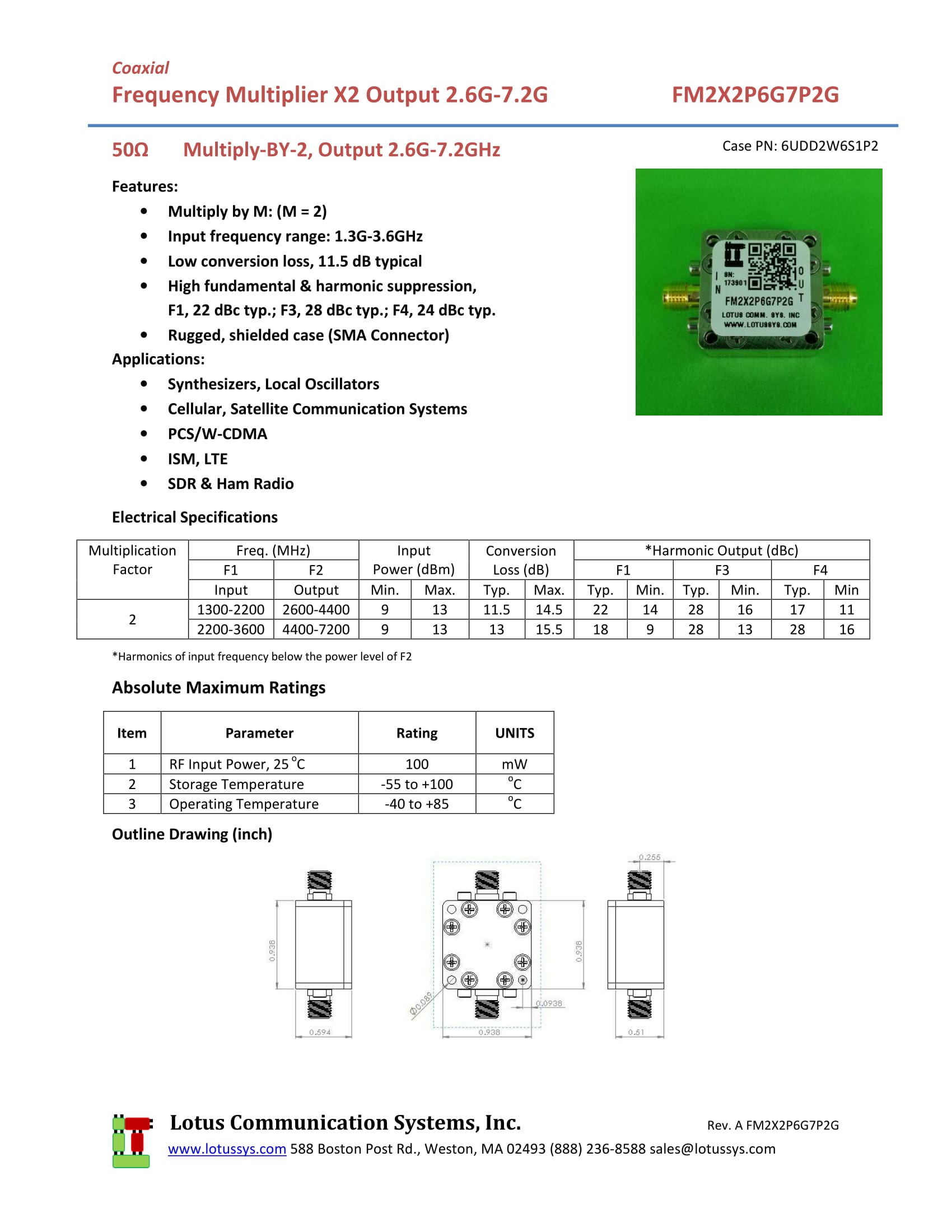

    Resources (PDF Datasheet)

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png FM2X2P6G7P2G Datasheet
