FM2X10G20G

Freq. Multiplier X2 (OUTPUT 10G to 20G Hz) FM2X10G20G

9 items left

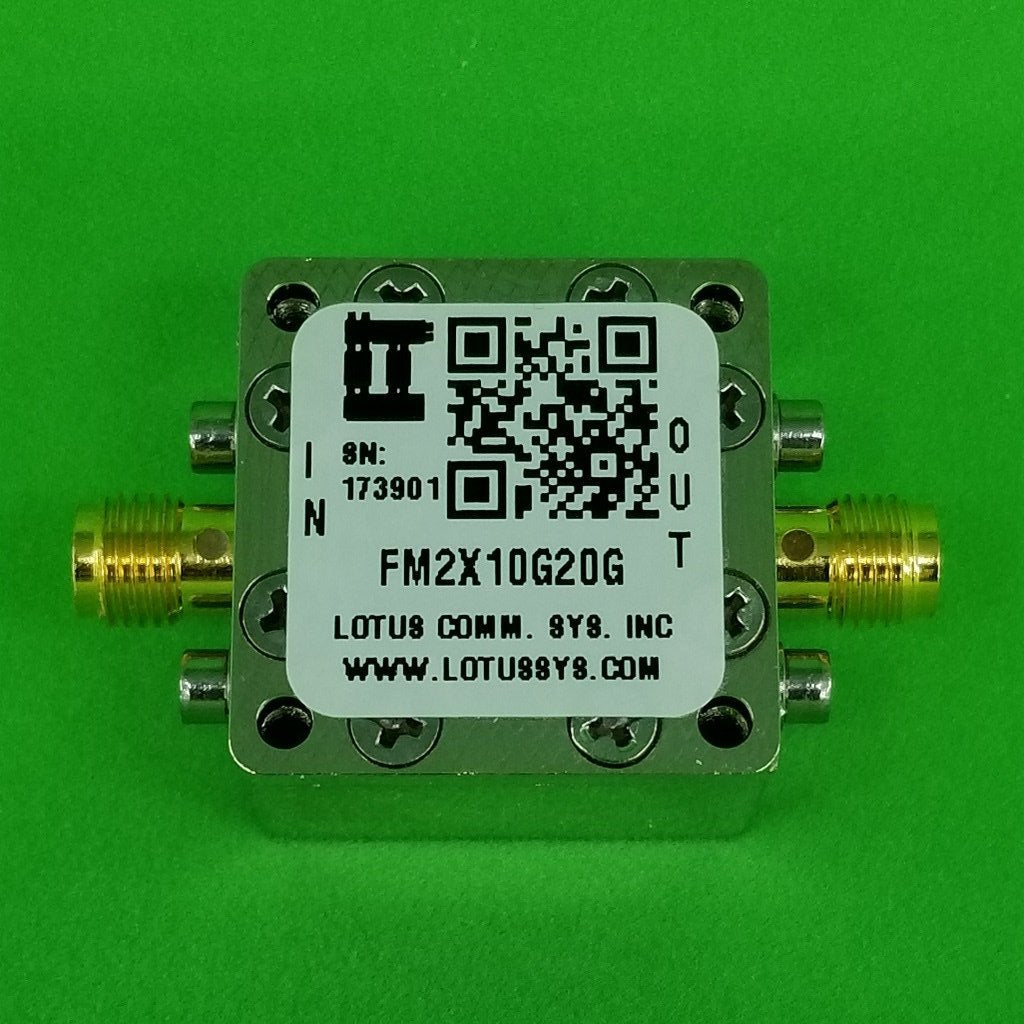

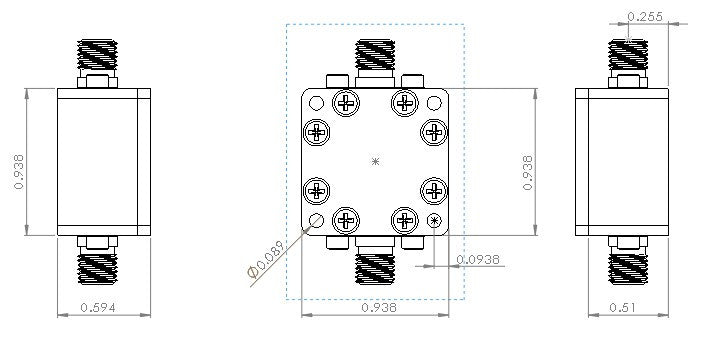

FM2X10G20G Frequency Multiplier X2 with input frequency range from 5 GHz to 10 GHz. Enclosure is using RF Design Kit 6UDD2W6S1P2 with dimension 0.9375"x0.9375x0.59". The frequency divider includes the RF Enclosure as shown in picture. SKU#: AK20_001K.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).


Features

  • Multiply by M: (M=2)
  • Input Frequency Range: 5 GHz to 10 GHz
  • Input Power Range: Min. +10 dBm, Max. +16 dBm
  • Operating Temperature -40 to +85C

Applications

  • Synthesizer, Local Oscillators
  • Microwave Radio
  • Test Instrumentation
  • Satellite Communication/Software Defined Radio/Ham Radio

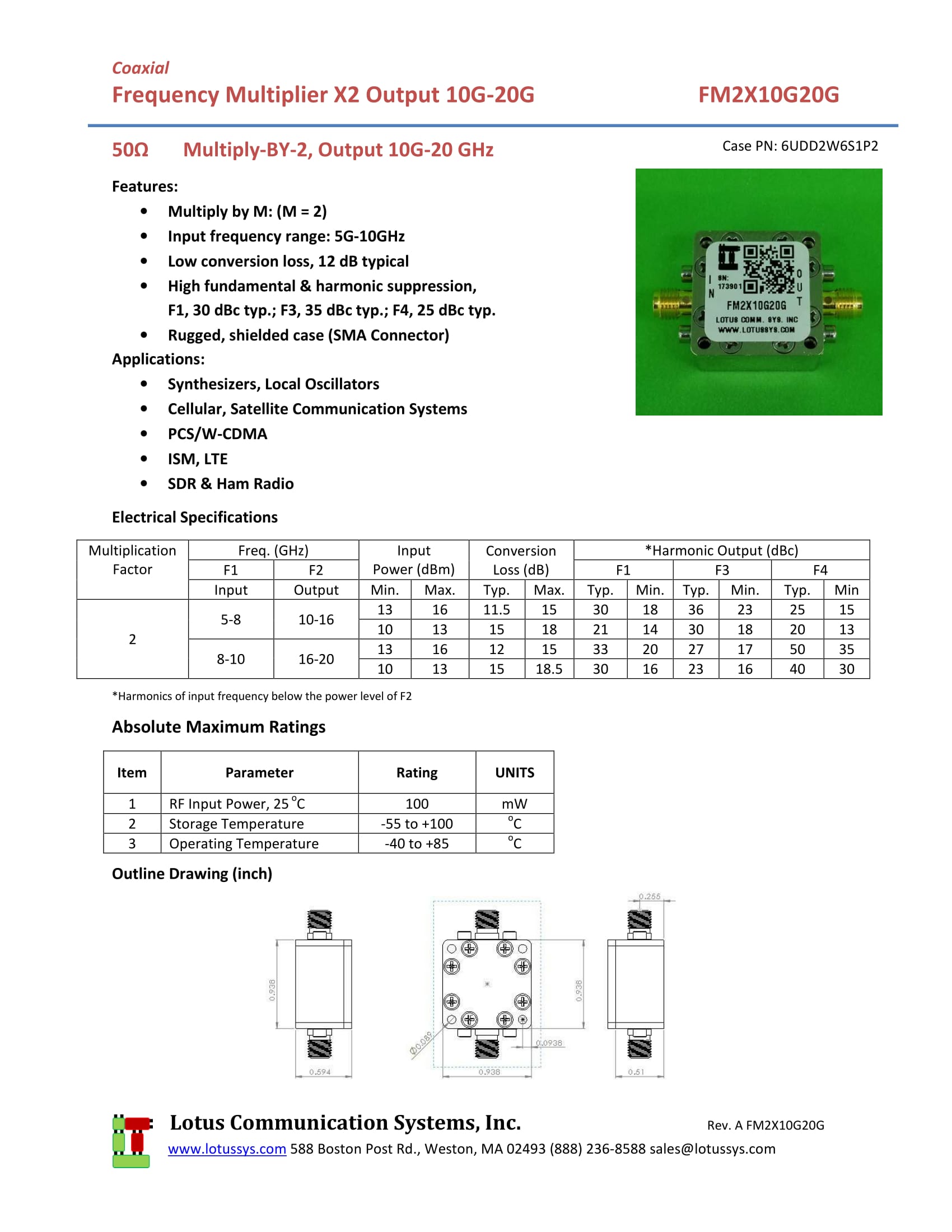

Resources (PDF Datasheet)

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png FM2X10G20G Datasheet
