  • Filter - Band Pass Filter Center Freq: 1945MHz, Pass band (1850-2040 MHz)

    BPF1945M200M LTCC Band Pass Filter.

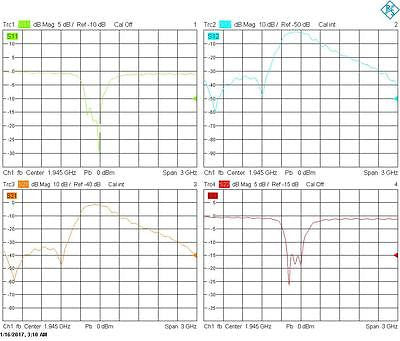

    Enclosure is using RF Design Kit with dimension 0.9375"x0.75x0.59". S-Parameter of the Part measured on VNA is shown in second picture.

    • Operational Temperature: -55 ~ 100C
    • Temperature Stable
    • Center Frequency: 1945 MHz
    • RF Power Input: 1.5W max. at 25C, derate linearly to 0.25W at 100C
    • 3dB Pass Band: 1850-2040 MHz
    • Insertion Loss: (2.0dB typical)
    • High Quality Stainless Steel SMA Female Connector


    • Harmonic Rejection
    • Transmitters / Receivers / SDR
    • Test Instrumentation

    This BPF Module includes the RF Enclosure as shown in picture.

    Proudly MADE IN USA.
