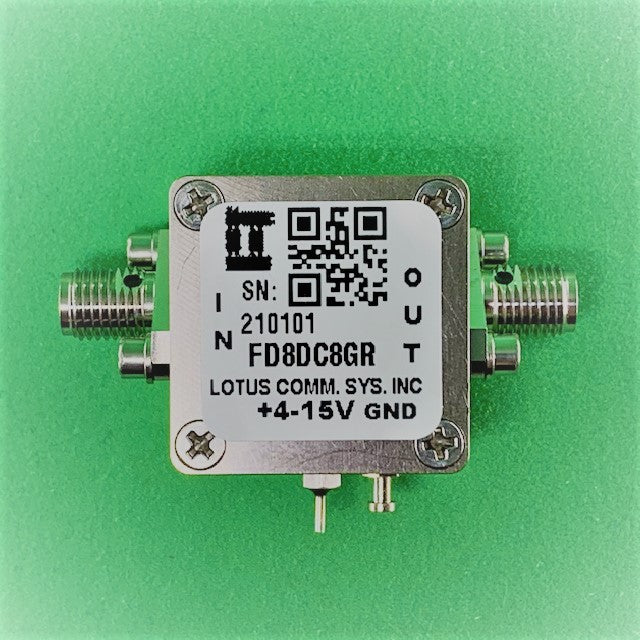

Frequency Divider by 8 (DC Hz to 8 GHz) Wide Voltage FD8DC8GR

EMI Shielding (includes Weatherproofing)
5 items left

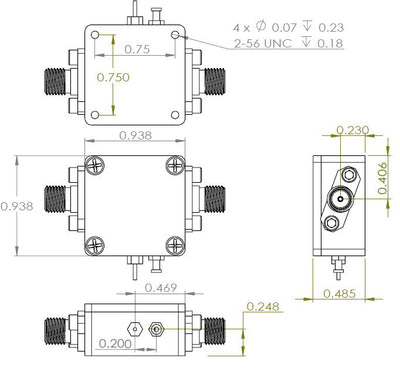

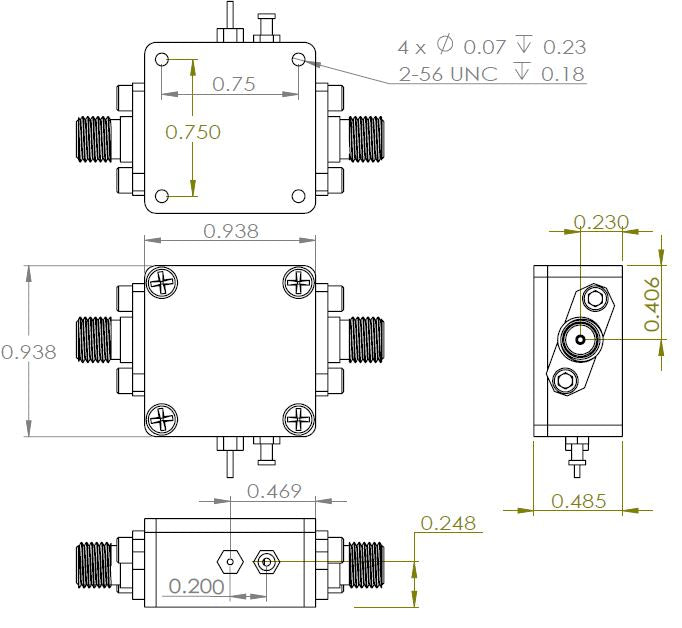

Part Number: FD8DC8GR is a Divide by M=8 Frequency divider with input frequency range from 100 MHz to 8 GHz. Enclosure is using RF Design Kit: 6UDD4W6H53SA2O with dimension 0.9375"x0.9375x0.60". The FD8DC8GR can be powered from a single supply +4V~15V. SKU#: AK20-005N.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).


Features

  • Frequency Range: DC to 8 GHz
  • Divide by M: (M=8)
  • Operating Temperature -40 to +85°C
  • Input Power Range: Fin = 1-3 GHz Min. -10 dBm, Max. +10 dBm
  • Input Power Range: Fin = 3-8 GHz Min. 0 dBm, Max. +10 dBm
  • Output Power Fin = 1~8GHz, -2.0 dBm typ.
  • SSB Phase Noise (100 KHz offset) at Fin =4 GHz, Pin=0 dBm, -150 dBc/Hz
  • Supply current (Icc) typical 62 mA
  • Wide Supply Voltage Vcc=4.0~15V
  • High Quality Stainless Steel SMA Connector
  • EMI Shield & Weatherproof Option Available ($90 Extra)
  • ROHS Compliant

Applications

  • Microwave Radio
  • Test Instrumentation
  • Satellite Communication/Software Defined Radio/Ham Radio

Resources (PDF Datasheet)

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png FD8DC8GR Datasheet
