FD8DC8G

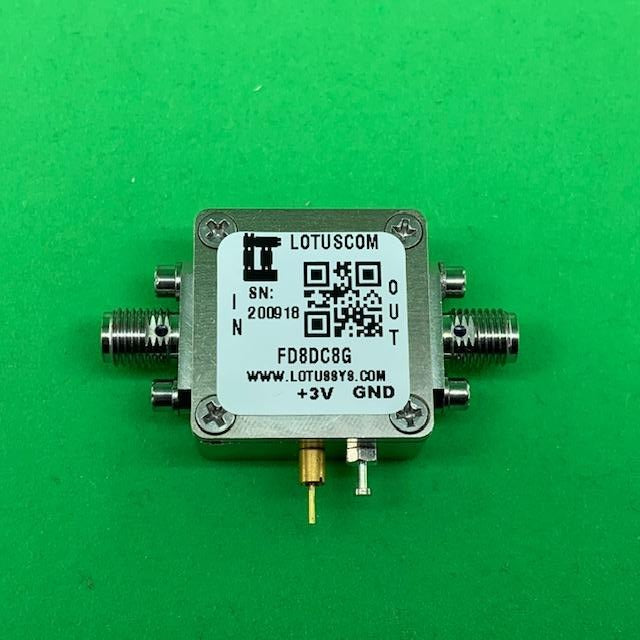

Frequency Divider by 8 (DC to 8 GHz) FD8DC8G

8 items left

FD8DC8G is a Divide by M=8 Frequency divider with input frequency range from DC to 8 GHz. Enclosure is using RF Design Kit 6UDD2W6S1A2 with dimension 0.9375"x0.9375x0.59". The FD8DC8G can be powered from a single supply +3V. SKU#: AK20_002O.


Features

  • Frequency Range: DC to 8 GHz
  • Divide by M: (M=8)
  • Operating Temperature -40 to +85°C
  • Input Power Range: Fin = 1 to 3 GHz Min. -10 dBm, Max. +10 dBm
  • Input Power Range: Fin = 3 to 8 GHz Min. 0 dBm, Max. +10 dBm
  • Output Power Fin = 1 GHz to 8 GHz, -2.0 dBm typ.
  • SSB Phase Noise (100 KHz offset) at Fin =4 GHz, Pin=0 dBm, -150 dBc/Hz
  • Supply current (Icc) typical 62 mA
  • Supply Voltage Vcc=3.0 V (Maximum 3.15V)
  • High Quality Rogers RO4350 RF PCB
  • ROHS Compliant

Applications

  • Microwave Radio
  • Test Instrumentation
  • Satellite Communication/Software Defined Radio/Ham Radio

Resources

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png FD8DC8G Datasheet
