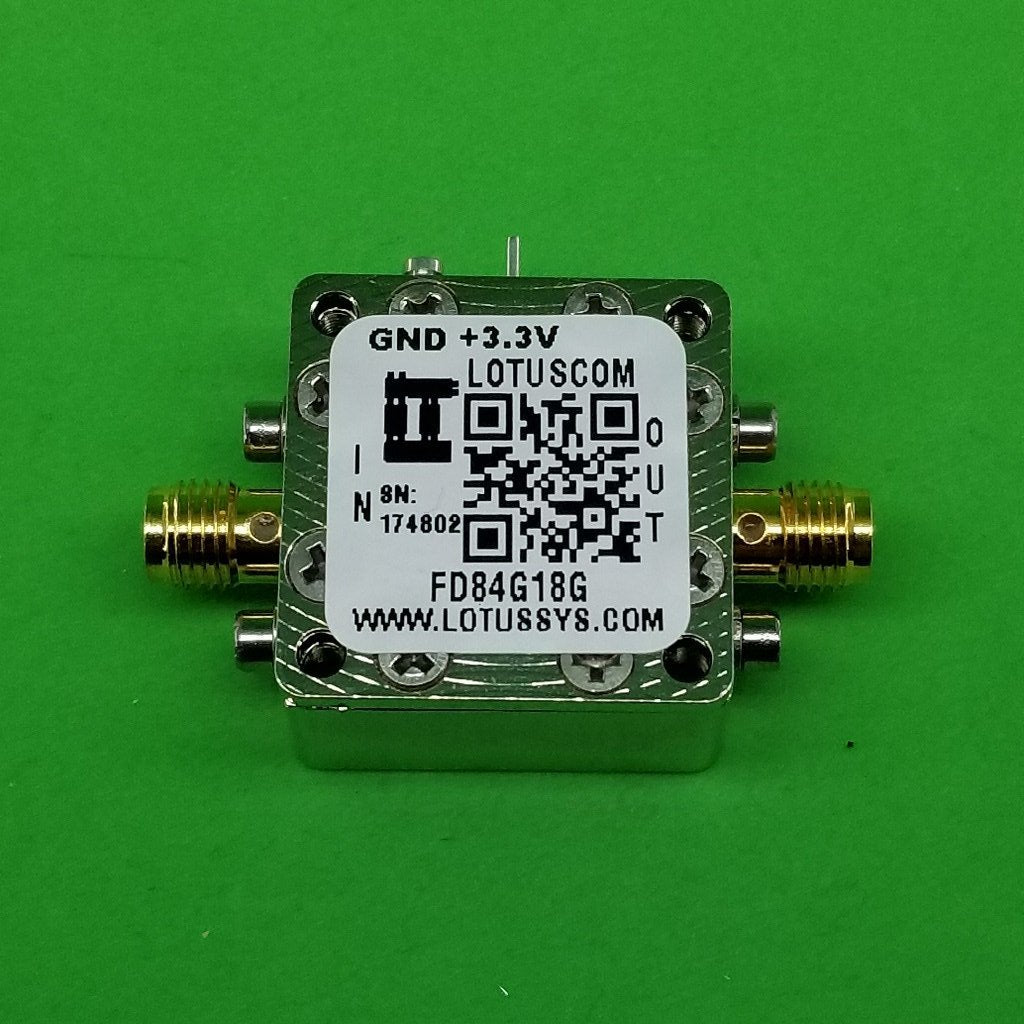

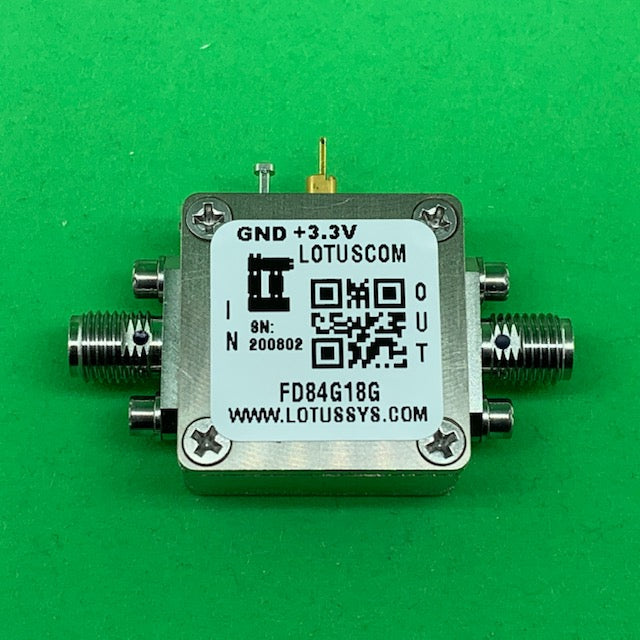

Frequency Divider by 8 (4G to 18 GHz)
$ 327.80 USD

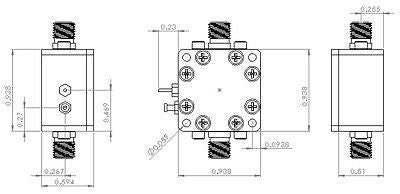

FD84G18G is a Divide by M=8 Frequency divider with input frequency range from high frequency 4G to 18 GHz with a single +3.3 DC Supply. The low additive SSB Phase Noise of -153 dBc/Hz at 100 kHz offset helps the user maintains good system noise performance.. Enclosure is using RF Design Kit 6UDD2W6S1A2 with dimension 0.9375"x0.9375x0.59". SKU#: AK20_001H
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).
Features
- Frequency Range: 4 to 18 GHz
- Divider by M: (M=8)
- Operating Temperature -40 to +105C
- Input Power Range: Min. -10 dBm, Max. +10 dBm
- SSB Phase Noise (100 KHz offset) at Fin =12 GHz, Pin=0 dBm, -153 dBc/Hz
- Supply current (Icc) typical 30 mA
- Supply Voltage Vcc=+3.3 V
- High Quality Stainless Steel SMA Female Connector
- High Quality Rogers RO4350 RF PCB
- ROHS Compliant
Applications
- Microwave Radio
- Test Instrumentation
- Satellite Communication/Software Defined Radio/Ham Radio
Resources (PDF Datasheet)
FD84G18G Datasheet
