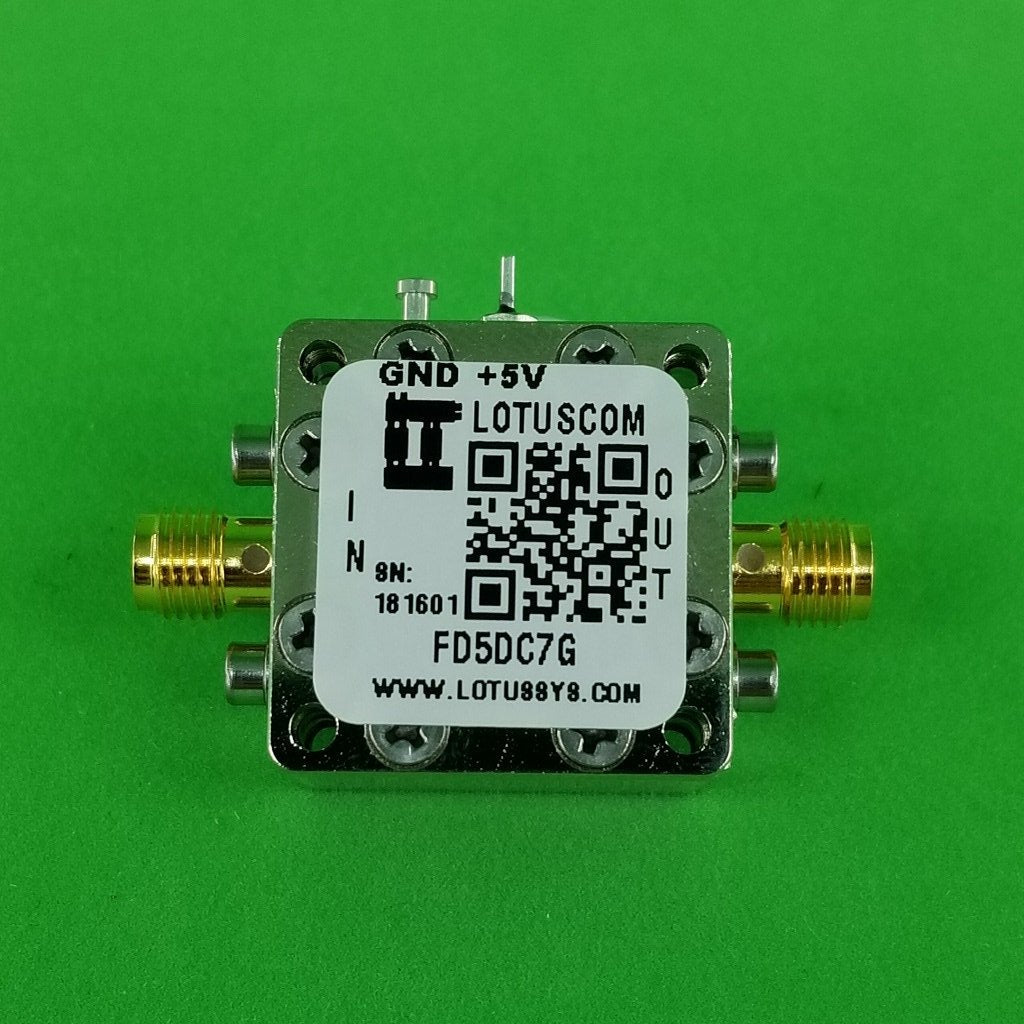

Frequency Divider/Prescaler Divide by 5 (DC to 7 GHz) FD5DC7G

9 items left

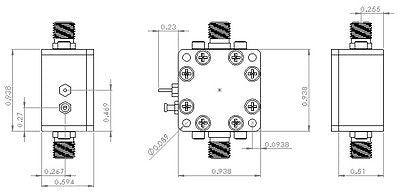

FD5DC7G is a Divide by M=5 Frequency divider with input frequency range from DC to 7 GHz. Enclosure is using RF Design Kit 6UDD2W6S1A2 with dimension 0.9375"x0.9375x0.59". The FD5DC7G can be powered from a single supply +5V.

    * Frequency Range: DC to 7G MHz
    * Divide by M: (M=5)
    * Operating Temperature -40 to +85C
    * Input Power Range: Fin = 1 to 5 GHz Min. -15 dBm, Max. +12 dBm
    * Input Power Range: Fin = 5 to 6 GHz Min. -15 dBm, Max. +10 dBm
    * Input Power Range: Fin = 6 to 7 GHz Min. -15 dBm, Max. +5 dBm
    * Output Power -1 dBm typ.
    * SSB Phase Noise (100 KHz offset) at Fin =6 GHz, Pin=0 dBm, -153 dBc/Hz
    * Supply current (Icc) typical 80 mA
    * Supply Voltage Vcc=5.0 V
    * High Quality Stainless Steel SMA Female Connector
    * High Quality Isola-Tera RF PCB
    (very low loss and high thermal performance)
    * ROHS Compliant

    * Microwave Radio
    * Test Instrumentation
    * Satellite Communication/Software Defined Radio/Ham Radio

Proudly MADE IN USA by Lotus Communication Systems, INC. in Massachusetts.

Click https://cdn.shopify.com/s/files/1/1592/7469/files/FD5DC7G.pdf to see detailed specification.

SKU#: AK20_002O
