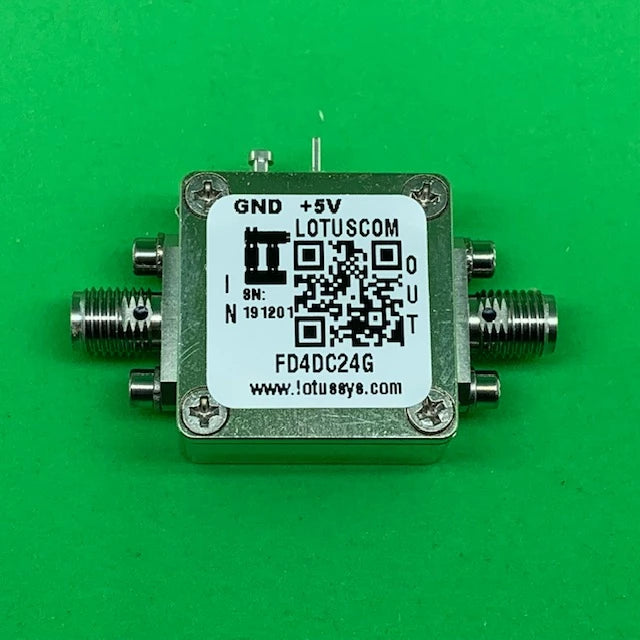

  • Frequency Divider/Prescaler Divide by 4 (DC to 24 GHz) FD4DC24G

    Part Number: FD4DC24G is a Divide by M=4 Frequency divider with input frequency range from frequency DC to 24 GHz with a single +5 DC Supply. The low additive SSB Phase Noise of -154 dBc/Hz at 100 kHz offset helps the user maintains good system noise performance.

    Enclosure is using RF Design Kit 6UDD2W6S1A2 with dimension 0.9375"x0.9375x0.59".

    SKU#: AK20-020R.

    Proudly Made in USA by Lotus Communication Systems, INC. in Weston, MA.

    17 items left

    Features

    • Frequency Range: DC to 24 GHz
    • Divider by M: (M=4)
    • Operating Temperature -40 to +85C
    • Input Power Range: Min. -15 dBm, Max. +10 dBm
    • Supply current (Icc) typical 78 mA
    • Supply Voltage Vcc=+5 V
    • High Quality Stainless Steel SMA Female Connector
    • High Quality Rogers RO4350 RF PCB (very low loss and high thermal performance)
    • ROHS Compliant

    Applications

    • Microwave Radio
    • Test Instrumentation
    • Communication/Software Defined Radio/Ham Radio

    Resources

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png FD4DC24G Datasheet
