FD410G26G

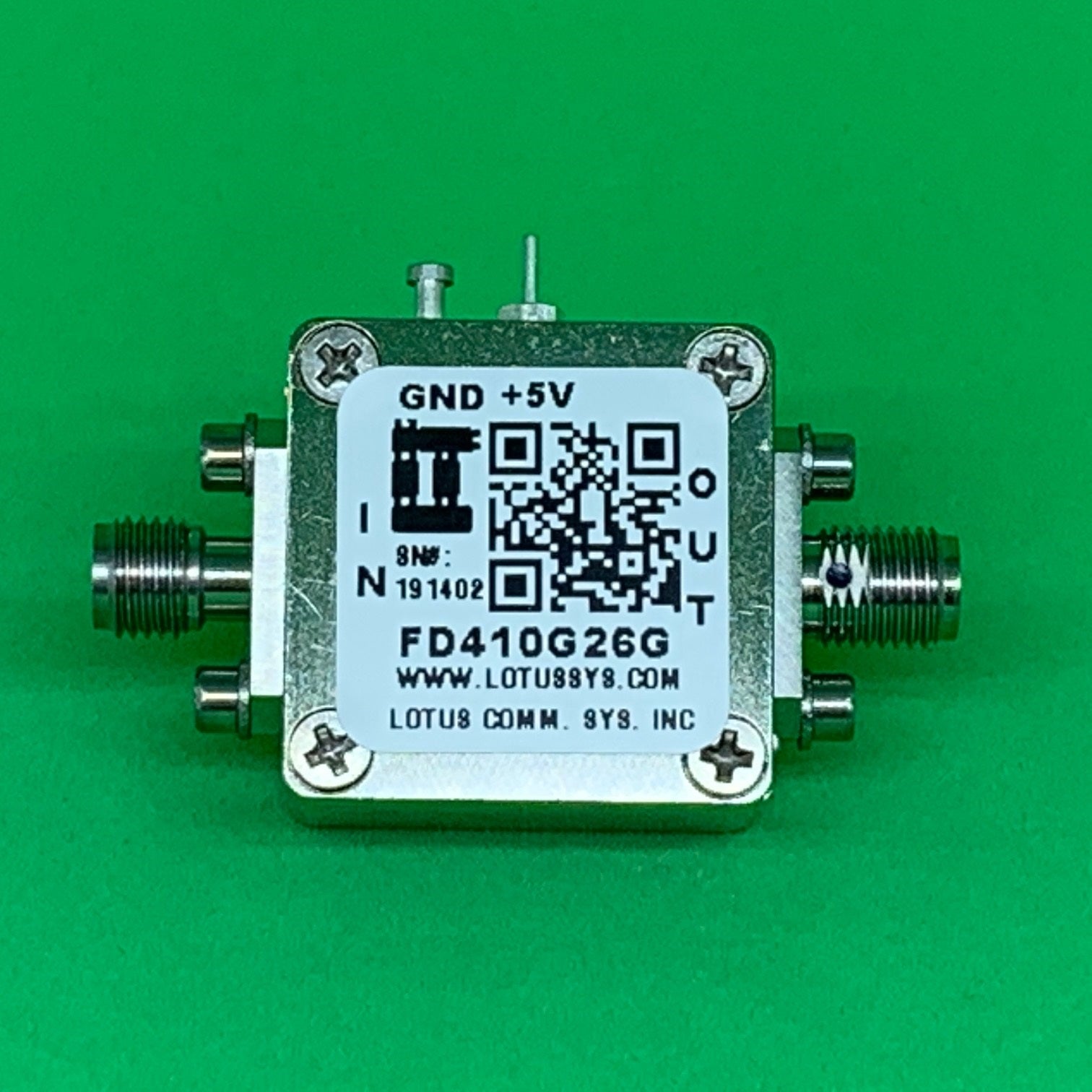

Frequency Divider/Prescaler Divide by 4 (10 to 26 GHz) FD410G26G

2 items left

FD410G26G is a low noise divide-by-4 active broadband frequency divider GaAs HBT technology.  This wideband divider operates with input frequency from 10 to 26 GHz and accepts very wide range of input power level from -15 to 10 dBm.  The divider exhibits a very low SSB Phase noise of -150 dBc/Hz at 100 kHz offset, making it ideal for use in high frequency PLL and LO applications.

The divider consumes only 96mA from single power supply of +5V. The input connector is 2.92mm Steel Connector and Output connector is SMA Steel Connector.

Enclosure is using RF Design Kit 6UDD2W6O5A2 with dimension 0.9375"x0.9375x0.47".

SKU#: AK20_004L


Features

  • Divide by M: (M = 4)
  • Ultra Low SSB Phase Noise -150 dBc/Hz
  • Input frequency range: 10-26 GHz
  • Output Power: -4 dBm
  • Single DC Supply: +5V
  • Low Power Consumption: 96 mA
  • Rugged, shielded case (Input 2.92mm connector,
    Output SMA Connector)

Applications

  • Cellular, Satellite Communication Systems
  • PCS, W-CDMA, ISM, LTE
  • SDR & Ham Radio/Fiber Optic/Test Equipment
  • Test Instrumentation

Resources

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.pngFD410G26G Datasheet
