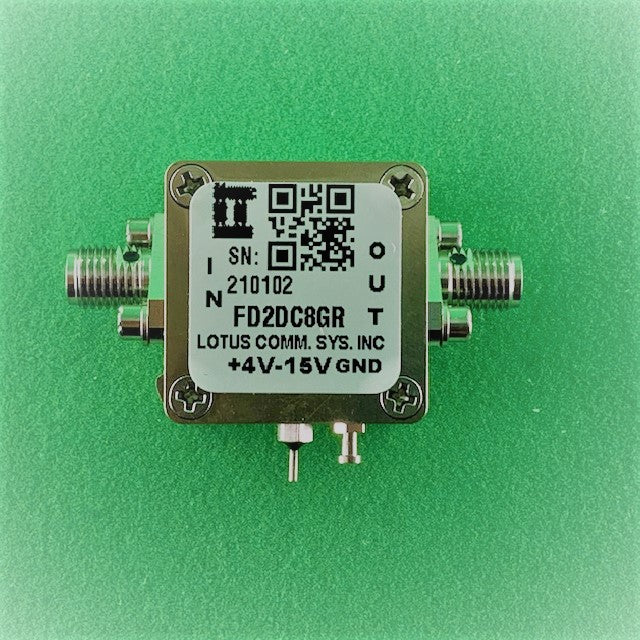

  • Frequency Divider by 2 (DC Hz to 8 GHz) Wide Voltage FD2DC8GR

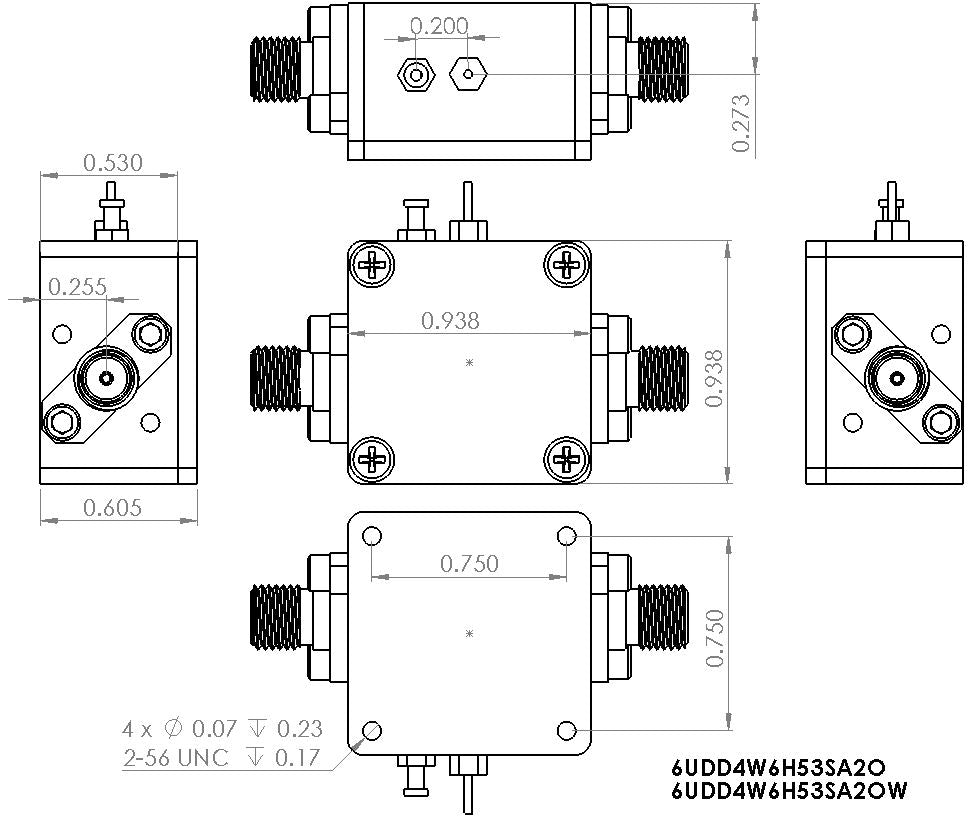

    Part Number: FD2DC8GR is a Divide by M=2 Frequency divider with input frequency range from 100 MHz to 8 GHz. Enclosure is using RF Design Kit: 6UDD4W6H53SA2O with dimension 0.9375"x0.9375x0.60". The FD2DC8GR can be powered from a single supply +4V~15V. SKU#: AK20-005N.

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).

    EMI Shielding (includes Weatherproofing)
    35 items left


    • Frequency Range: DC to 8 GHz
    • Divide by M: (M=2)
    • Operating Temperature -40 to +85°C
    • Input Power Range: Fin = 1-7 GHz Min. -12 dBm, Max. +12 dBm
    • Input Power Range: Fin = 7-8 GHz Min. -4 dBm, Max. +10 dBm
    • SSB Phase Noise (100 KHz offset) at Fin =4 GHz, Pin=0 dBm, -148 dBc/Hz
    • Supply current (Icc) typical 42 mA
    • Wide Supply Voltage Vcc=4.0~15V
    • High Quality Stainless Steel SMA Connector
    • EMI Shield & Weatherproof Option Available ($90 Extra)
    • ROHS Compliant


    • Microwave Radio
    • Test Instrumentation
    • Satellite Communication/Software Defined Radio/Ham Radio

    Resources (PDF Datasheet)

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png FD2DC8GR Datasheet
