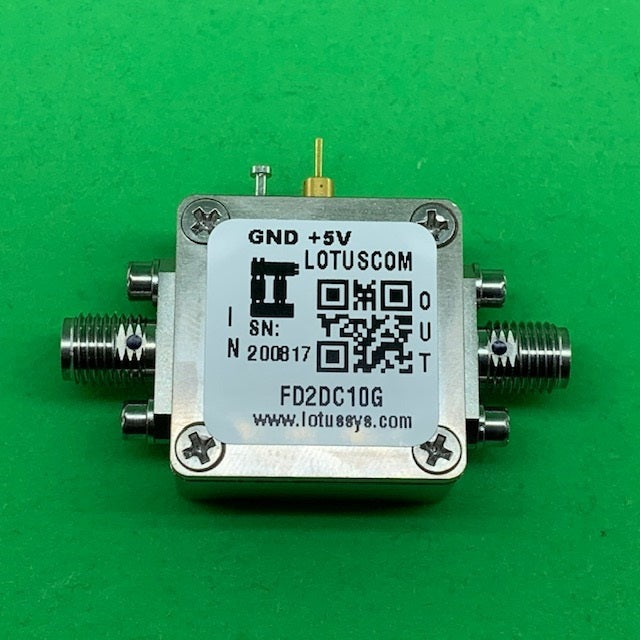

  • FD2DC10G Frequency Divider by 2 (DC to 10 GHz)

    PN#: FD2DC10G is a Divide by M=2 Frequency divider with input frequency range from DC (with a square wave input) to 10 GHz with a single +5 DC Supply. The low additive SSB Phase Noise of -148 dBc/Hz at 100 kHz offset helps the user maintains good system noise performance.

    Enclosure is using RF Design Kit 6UDD2W6S1A2 with dimension 0.9375"x0.9375x0.59". SKU#: AK20-001H.

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).

    9 items left

    Features

    • Frequency Range: 0.4 to 10 GHz Sinewave Input
    • Divider will operate to near DC for square-wave Input
    • Divider by M: (M=2)
    • Operating Temperature -40 to +85C
    • Input Power Range: Fin = 0.4 to 1 GHz Min. -5 dBm, Max. +10 dBm
    • Input Power Range: Fin = 1 to 8 GHz Min. -15 dBm, Max. +10 dBm
    • Input Power Range: Fin = 8 to 10 GHz Min. -10 dBm, Max. +2 dBm
    • SSB Phase Noise (100 KHz offset) at Fin =6 GHz, Pin=0 dBm, -148 dBc/Hz
    • Supply current (Icc) typical 83 mA
    • Supply Voltage Vcc=+5.0 V
    • High Quality Stainless Steel SMA Female Connector
    • High Quality Rogers RO4350 RF PCB
    • ROHS Compliant

    Applications

    • Microwave Radio
    • Test Instrumentation
    • Satellite Communication/Software Defined Radio/Ham Radio

    Resources (PDF Datasheet)

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png FD2DC10G Datasheet
