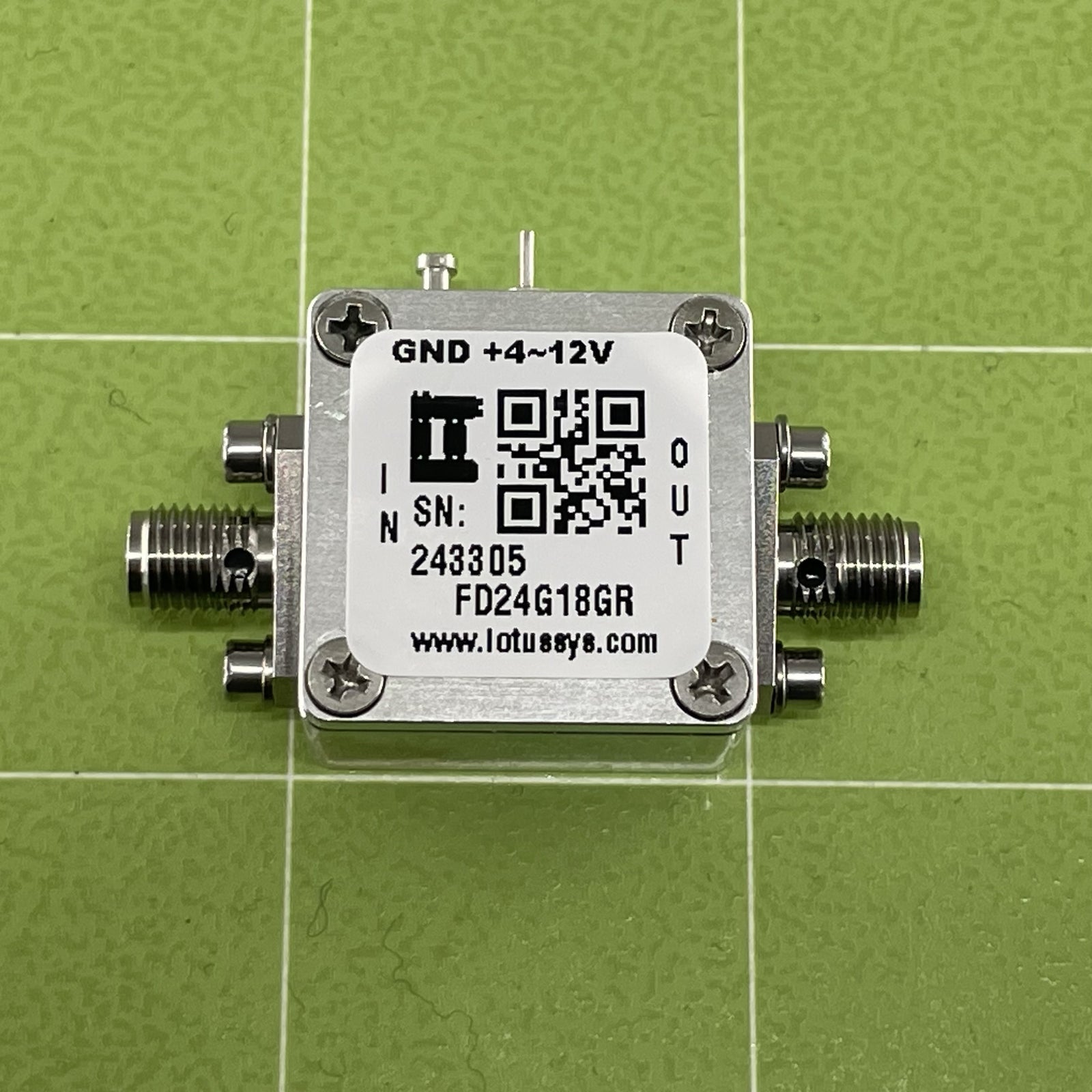

Frequency Divider by 2 (4G to 18 GHz) Wide Voltage FD24G18GR
$ 426.00 USD
PN: FD24G18GR is a Divide by M=2 Frequency divider with input frequency range from high frequency 4G to 18 GHz with a broad +4~12 DC Supply. The low additive SSB Phase Noise of -147 dBc/Hz at 100 kHz offset helps the user maintains good system noise performance. SKU#: AK20-021N.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).
Features
- Frequency Range: 4 to 18 GHz
- Divider by M: (M=2)
- Operating Temperature -40 to +105C
- Input Power Range: Min. -10 dBm, Max. +10 dBm
- SSB Phase Noise (100 KHz offset) at Fin =12 GHz, Pin=0 dBm, -147 dBc/Hz
- Supply current (Icc) typical 30 mA
- Supply Voltage Vcc=+4~12V
- High Quality Stainless Steel SMA Female Connector
- High Quality Rogers RO4350 RF PCB
- ROHS Compliant
Applications
- Microwave Radio
- Test Instrumentation
- Satellite Communication/Software Defined Radio/Ham Radio
Resources (PDF Datasheet)
FD24G18GR Datasheet
