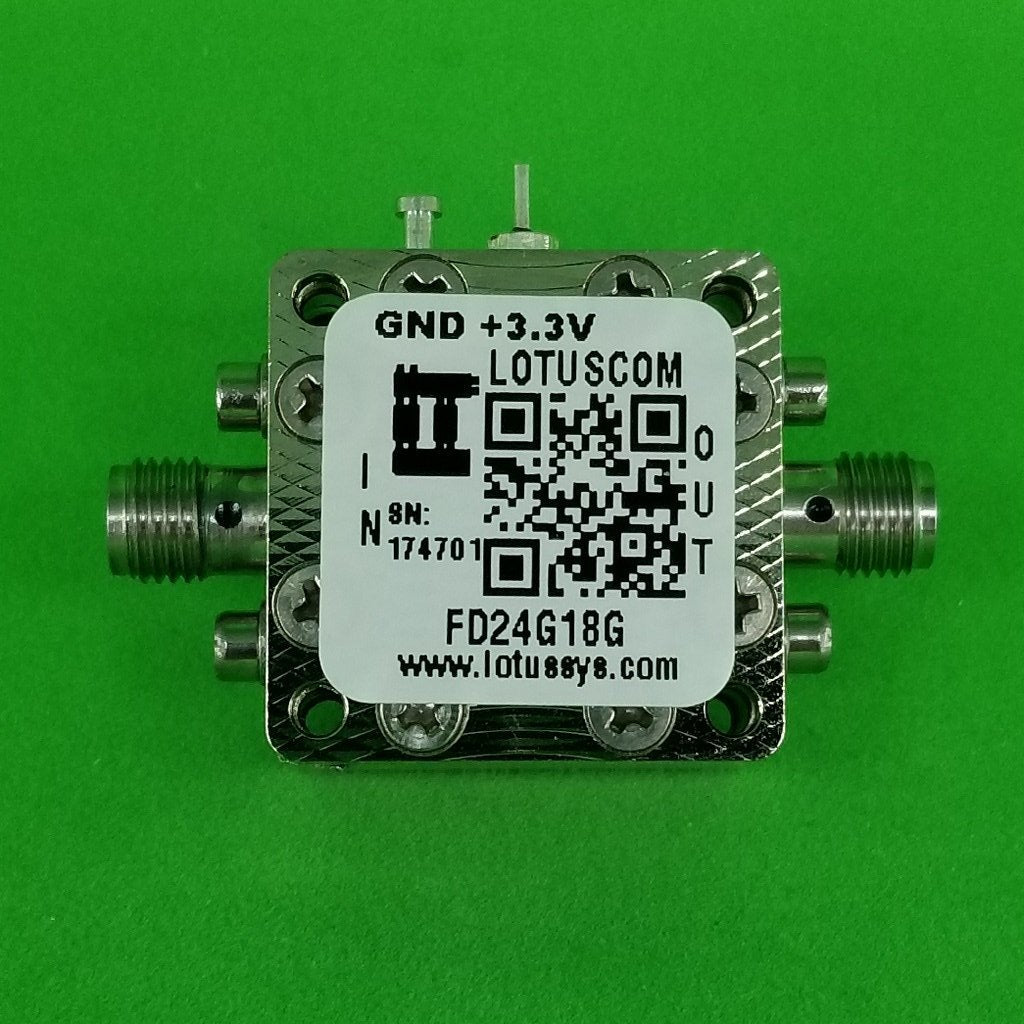

FD24G18G

Frequency Divider by 2 (4G to 18 GHz)

10 items left
FD24G18G is a Divide by M=2 Frequency divider with input frequency range from high frequency 4G to 18 GHz with a single +3.3 DC Supply. The low additive SSB Phase Noise of -147 dBc/Hz at 100 kHz offset helps the user maintains good system noise performance. SKU#: AK20_001H.

Features

  • Frequency Range: 4 to 18 GHz
  • Divier by M: (M=2)
  • Operating Temperature -40 to +105C
  • Input Power Range: Min. -10 dBm, Max. +10 dBm
  • SSB Phase Noise (100 KHz offset) at Fin =12 GHz, Pin=0 dBm, -147 dBc/Hz
  • Supply current (Icc) typical 30 mA
  • Supply Voltage Vcc=+3.3 V
  • High Quality Stainless Steel SMA Female Connector
  • High Quality Rogers RO4350 RF PCB
  • ROHS Compliant

Applications

  • Microwave Radio
  • Test Instrumentation
  • Satellite Communication/Software Defined Radio/Ham Radio

Resources

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png FD24G18G Datasheet
