CRYTCXO020M

Oscillator TCXO (Stratum 3) 20 MHz (0.28 ppm) in Enclosure

10 items left

CRYTCXO020M Precision TCXO (Stratum 3) with 20 MHz output.   It has superior 0.28 ppm over temperature -40°C to +85°C.  It can be used for GPS/GNSS, base station, small cell, and smart grid applications with an outstanding short-term and long-term frequency stability performance.

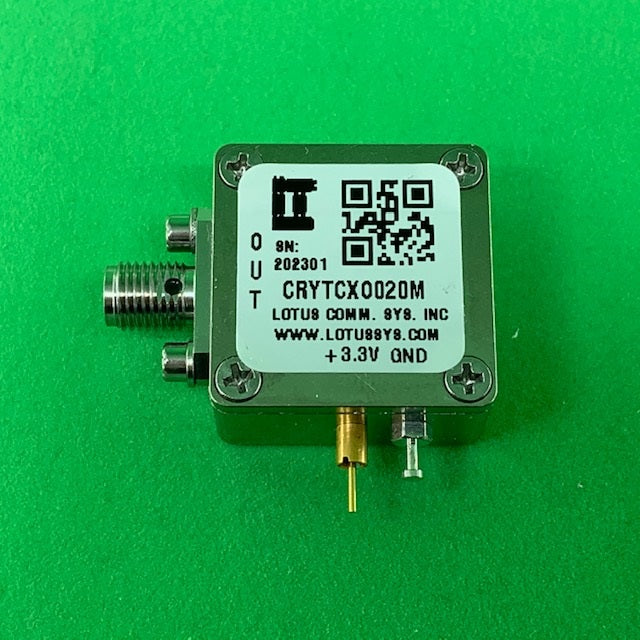

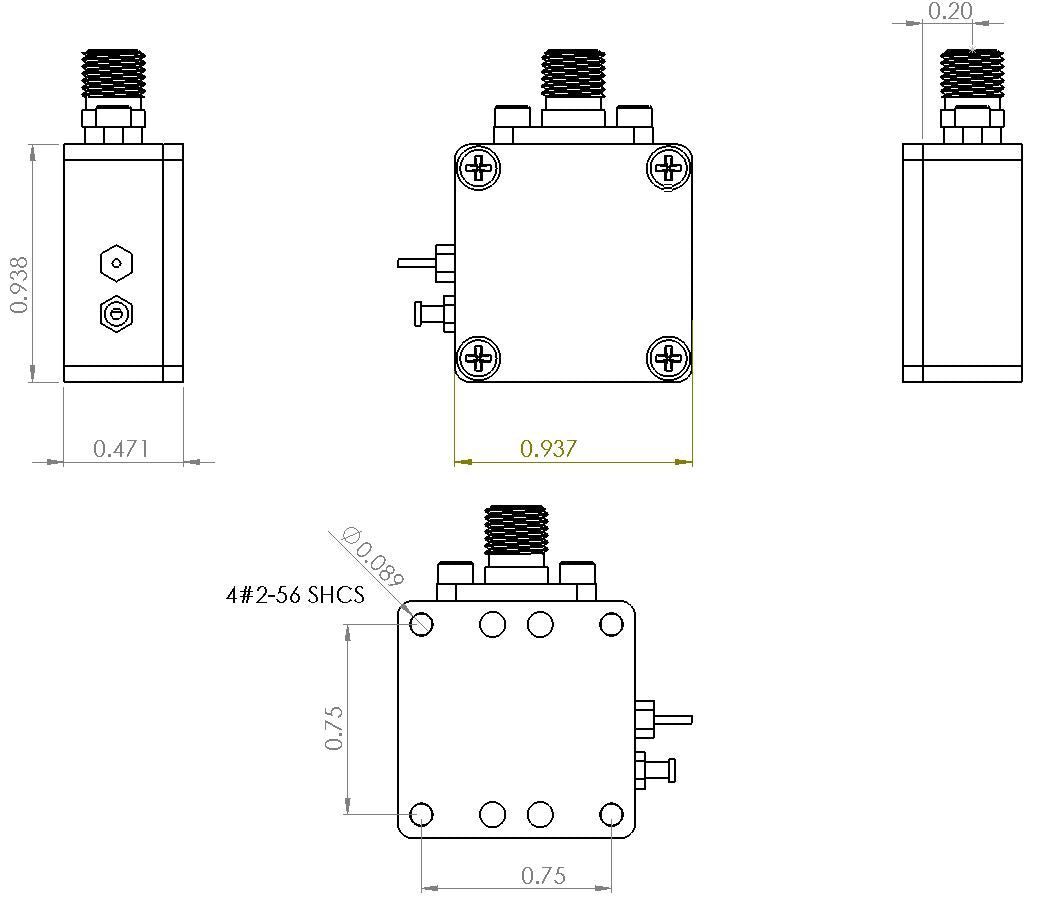

Enclosure is using RF Design Kit 6UDD6W6H41SMAA1 (only one SMA output) with dimension 0.9375"x0.9375x0.48".  This TCXO Module includes the RF Enclosure as shown in picture. SKU#: AK20-001O.

Proudly Made in USA by Lotus Communication Systems, INC. in Weston, MA.


Features

  • Frequency Output: 20MHz
  • Supply Voltage: +3.13~3.46 V
  • Current Drain: 2.1mA typical
  • High Quality Stainless Steel SMA Female Connector
  • Frequency Stability: 0.28ppm over operational temperature
  • Phase Noise dBc/Hz: -155 @ 10 kHz offset
  • Output Level: CMOS
  • Aging: +/-1ppm max per year, +/-3ppm over 10 years
  • Output Level: Hi: >90% Vcc, Lo: <10% Vcc
  • ROHS Compliant

Applications

  • Test Instrumentation
  • General Purpose Wireless
  • Radar & VSAT
  • SDR & Ham Radio

Resources

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png CRYTCXO020M Datasheet
