  • Oscillator TCXO (Stratum 3) 10 MHz (0.28 ppm) (Wide Voltage +4~15V)

    Part Number: CRYTCXO010MR is Precision TCXO (Stratum 3) with 10 MHz output and with wide voltage range from +4~15V.   It has superior 0.28 ppm over temperature -40C to +85C.  It can be used for GPS/GNSS, base station, small cell, and smart grid applications with an outstanding short-term and long-term frequency stability performance.

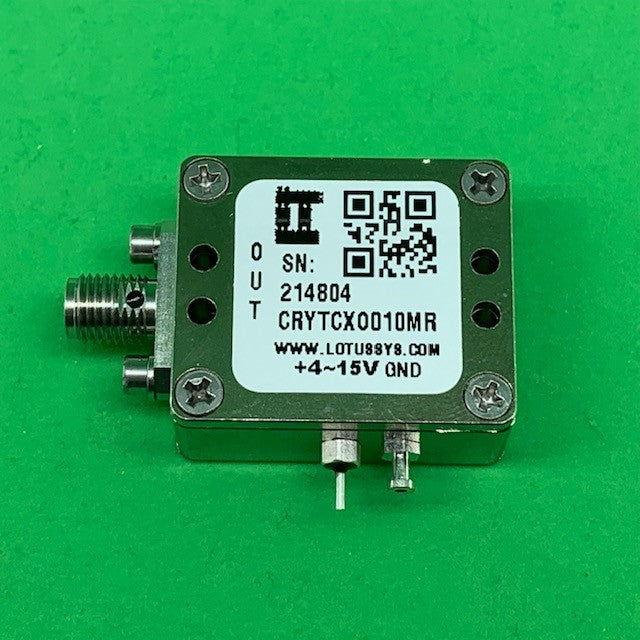

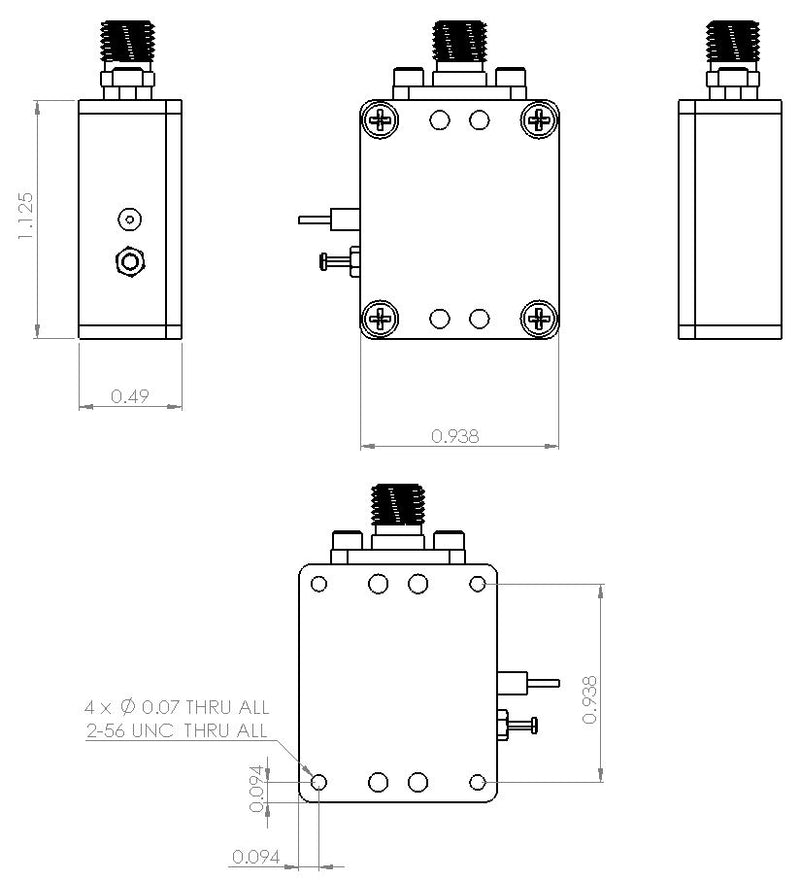

    Enclosure is using RF Design Kit 6UED2W6H41SMAA1 (only one SMA output) with dimension 1.125"x0.9375x0.48".  This TCXO Module includes the RF Enclosure as shown in picture. SKU#: QT16-001M.

    Proudly Made in USA by Lotus Communication Systems, INC. in Weston, MA.

    32 items left


    • Frequency Output: 10 MHz
    • Supply Voltage: +4~15 V
    • Current Drain: 2.1mA typical
    • High Quality Stainless Steel SMA Female Connector
    • Frequency Stability: 0.28ppm over operational temperature
    • Phase Noise dBc/Hz: -155 @ 10 kHz offset
    • Output Level: CMOS
    • Aging: +/-1ppm max per year, +/-3ppm over 10 years
    • ROHS Compliant


    • Test Instrumentation
    • General Purpose Wireless
    • Radar & VSAT
    • SDR & Ham Radio


    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png CRYTCXO010MR Datasheet
