  • Oscillator TCXO (Stratum 3) 10 MHz (0.28 ppm) in Enclosure

    Part Number: CRYTCXO010M is Precision TCXO (Stratum 3) with 10 MHz output.   It has superior 0.28 ppm over temperature -40C to +85C.  It can be used for GPS/GNSS, base station, small cell, and smart grid applications with an outstanding short-term and long-term frequency stability performance.

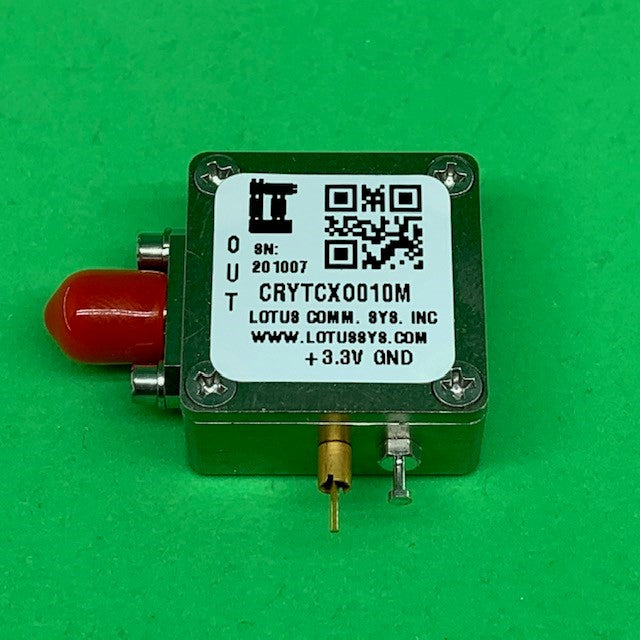

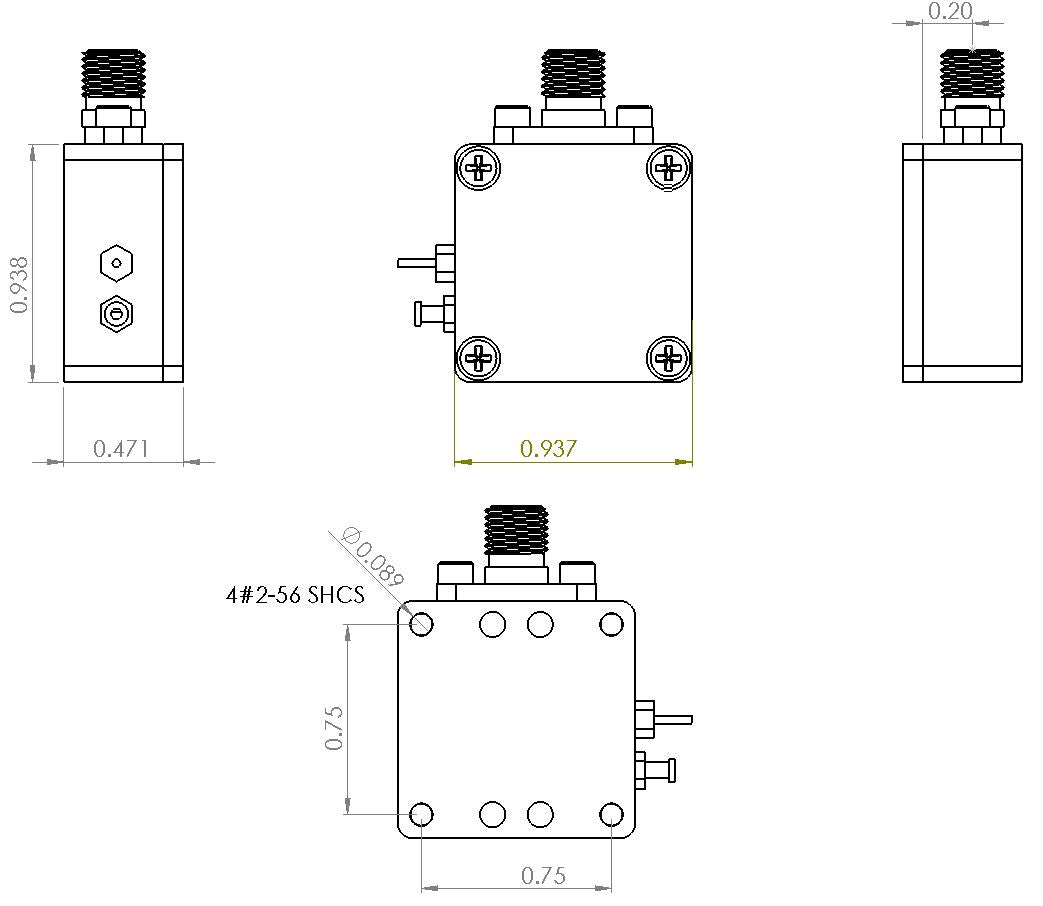

    Enclosure is using RF Design Kit 6UDD2W6H41SMAA1 (only one SMA output) with dimension 0.9375"x0.9375x0.48".  This TCXO Module includes the RF Enclosure as shown in picture. SKU#: AK20-001O.

    Proudly Made in USA by Lotus Communication Systems, INC. in Weston, MA.

    16 items left

    Features

    • Frequency Output: 10 MHz
    • Supply Voltage: +3.13~3.46 V
    • Current Drain: 2.1mA typical
    • High Quality Stainless Steel SMA Female Connector
    • Frequency Stability: 0.28ppm over operational temperature
    • Phase Noise dBc/Hz: -155 @ 10 kHz offset
    • Output Level: CMOS
    • Aging: +/-1ppm max per year, +/-3ppm over 10 years
    • ROHS Compliant

    Applications

    • Test Instrumentation
    • General Purpose Wireless
    • Radar & VSAT
    • SDR & Ham Radio

    Resources

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png CRYTCXO010M Datasheet
