AK20_003A

Directional Coupler 800 MHz to 1000 MHz 5dB 70W Low Insertion Loss

2 items left

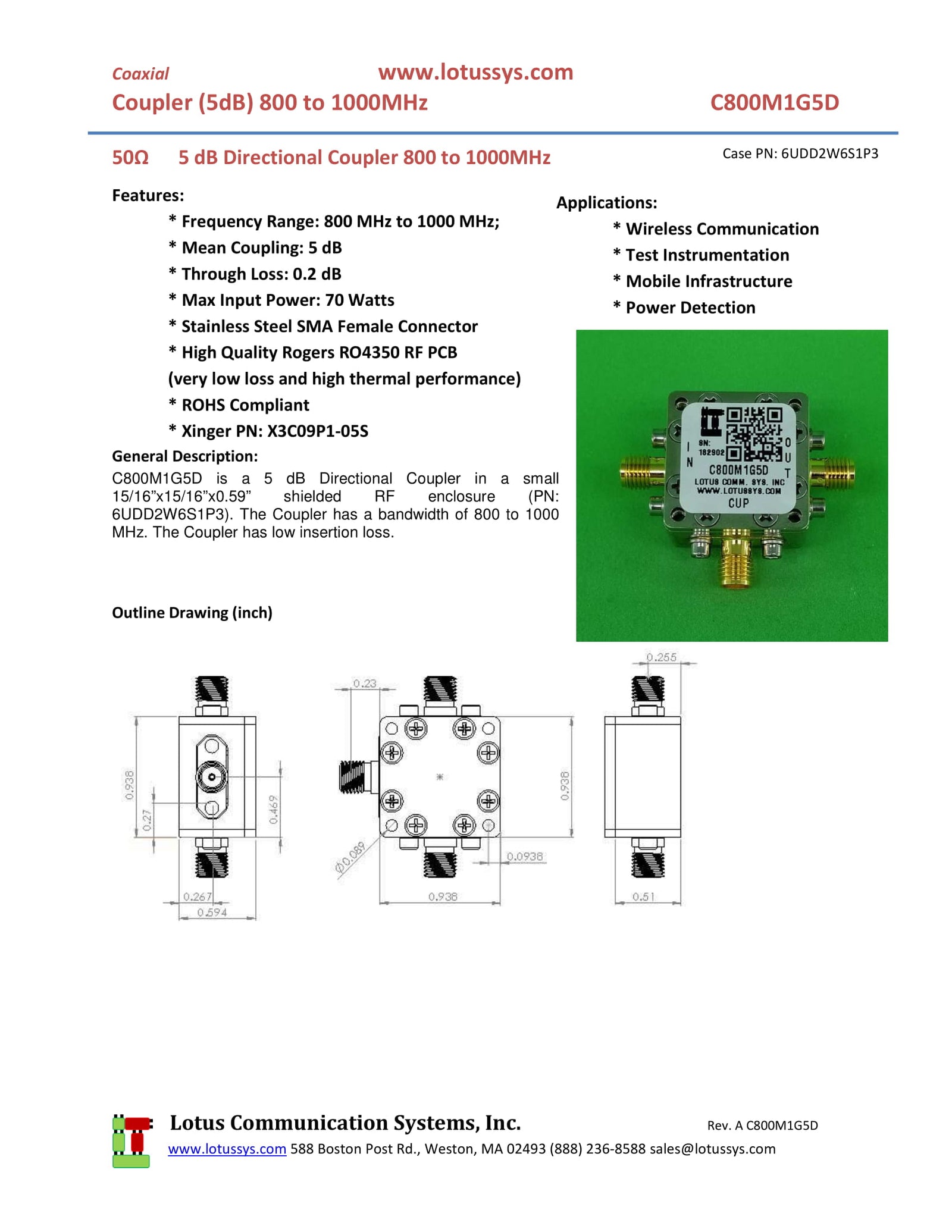

C800M1G5D is a 5 dB Directional Coupler in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1P3). The Coupler has a bandwidth of 800 to 1000 MHz. The Coupler has low insertion loss.

Features:
    * Frequency Range: 800 MHz to 1000 MHz;
    * Mean Coupling: 5 dB
    * Through Loss: 0.2 dB
    * Maximum Input Power: 70 Watts
    * Stainless Steel SMA Female Connector
    * High Quality Rogers RO4350 RF PCB
    (very low loss and high thermal performance)
    * ROHS Compliant
    * Xinger PN: X3C09P1-05S

Applications:
    * Wireless Communication
    * Test Instrumentation
    * Mobile Infrastructure
    * Power Detection

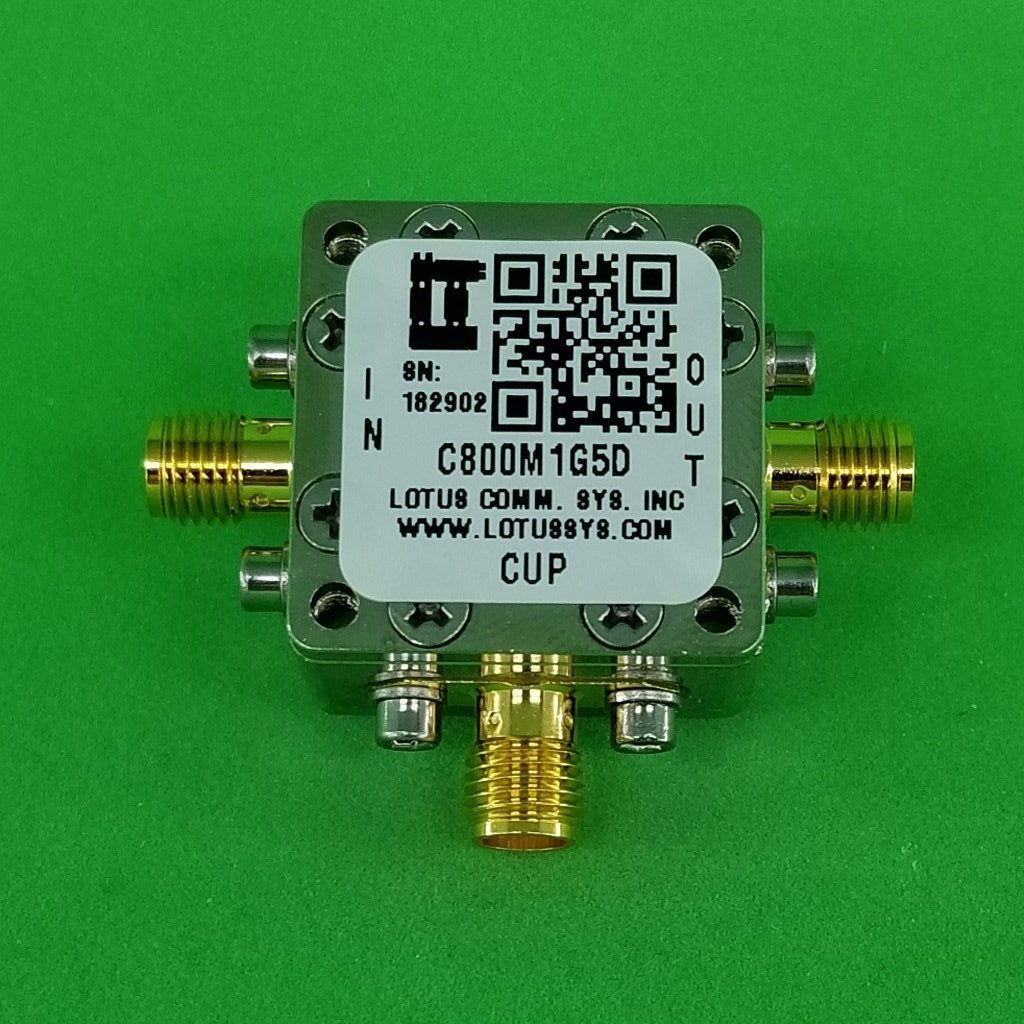

This Directional Coupler includes the RF Enclosure as shown in picture.

Proudly MADE IN USA by Lotus Communication Systems, INC. in Massachusetts.
