  • Directional Coupler 700 MHz to 1000 MHz 20dB 2W Low Insertion Loss

    C700M1G20D is a 20 dB Directional Coupler in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1P3). The Coupler has a bandwidth of 700 to 1000 MHz. The Coupler has low insertion loss.

    SKU#: AK20-002A

        * Frequency Range: 700 MHz to 2 GHz;
        * Mean Coupling: 20 dB
        * Through Loss: 0.6 dB
        * Maximum Input Power: 2 Watts
        * Stainless Steel SMA Female Connector
        * High Quality Rogers RO4350 RF PCB
        (very low loss and high thermal performance)
        * ROHS Compliant
        * Xinger PN: DC0710J5010AHF

        * Wireless Communication
        * Test Instrumentation
        * Mobile Infrastructure
        * Power Detection

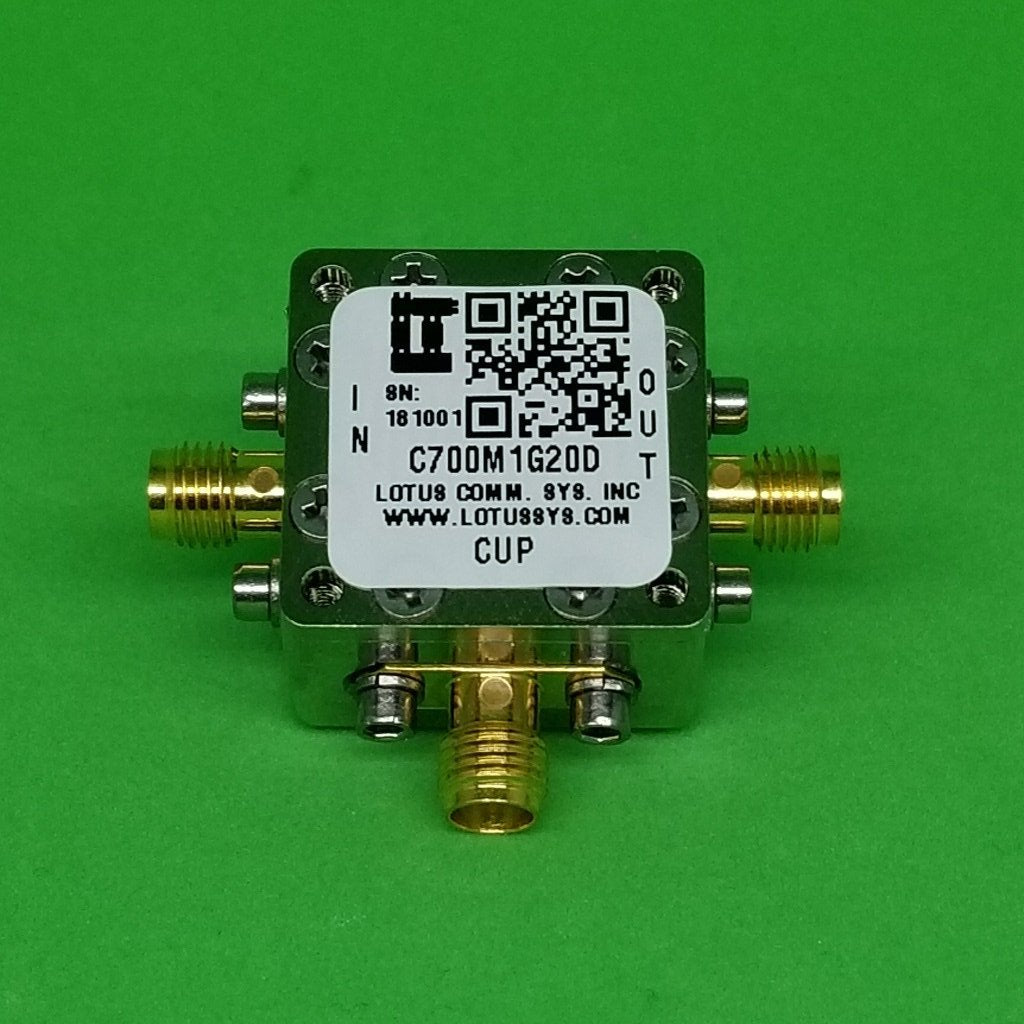

    This Directional Coupler includes the RF Enclosure as shown in picture.

    Proudly MADE IN USA by Lotus Communication Systems, INC. in Massachusetts.
