    Directional Coupler 700 MHz to 1000 MHz 10dB 2W Low Insertion Loss
    Directional Coupler 700 MHz to 1000 MHz 10dB 2W Low Insertion Loss
    Directional Coupler 700 MHz to 1000 MHz 10dB 2W Low Insertion Loss

    Directional Coupler 700 MHz to 1000 MHz 10dB 2W Low Insertion Loss

    $ 107.80 USD
    C700M1G10D is a 10 dB Directional Coupler in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1P3). The Coupler has a bandwidth of 700 to 1000 MHz. The Coupler has low insertion loss. SKU#: AK20-002A

    Features:
        * Frequency Range: 700 MHz to 2 GHz;
        * Mean Coupling: 10 dB
        * Through Loss: 0.6 dB
        * Maximum Input Power: 2 Watts
        * +35.5 dBm OIP3 at 65mA current
        * Stainless Steel SMA Female Connector
        * High Quality ROgers RO4350 RF PCB
        (very low loss and high thermal performance)
        * ROHS Compliant
        * Xinger PN: DC0710J5010AHF

    Applications:
        * Wireless Communication
        * Test Instrumentation
        * Mobile Infrastructure
        * Power Detection

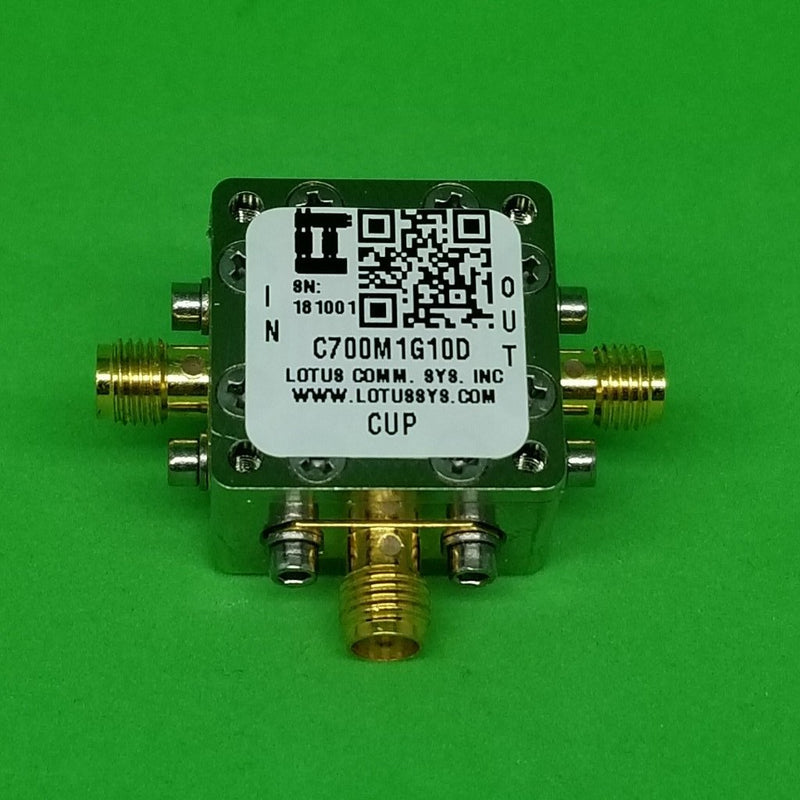

    This Directional Coupler includes the RF Enclosure as shown in picture.

    Proudly MADE IN USA by Lotus Communication Systems, INC. in Massachusetts.
    2 items left
