Directional Coupler 3.3 GHz to 3.8 GHz 5dB 2W Low Insertion Loss
$ 108.00 USD

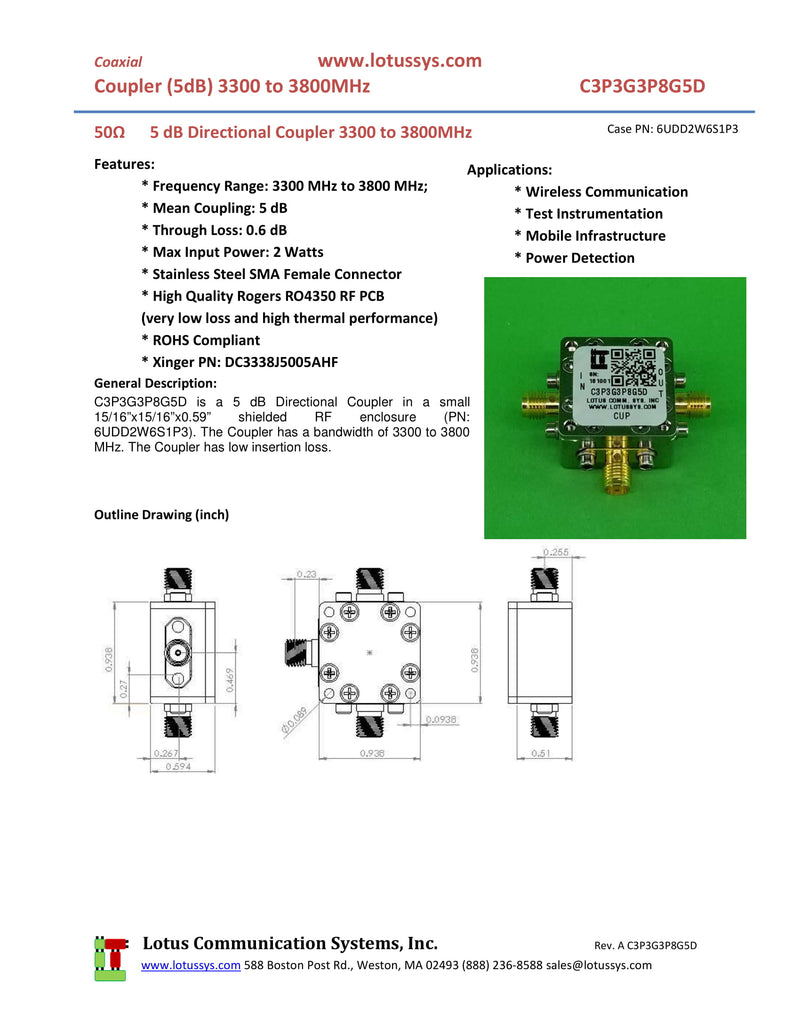

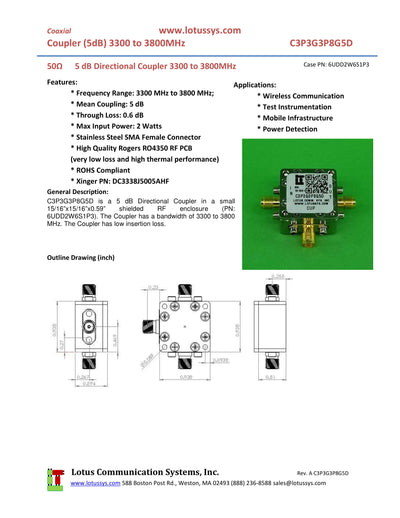

C3P3G3P8G5D is a 5 dB Directional Coupler in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1P3). The Coupler has a bandwidth of 3300 to 3800 MHz. The Coupler has low insertion loss.
SKU#: AK20-002C
Features:
* Frequency Range: 3300 MHz to 3800 MHz;
* Mean Coupling: 5 dB
* Through Loss: 0.6 dB
* Maximum Input Power: 2 Watts
* Stainless Steel SMA Female Connector
* High Quality Rogers RO4350 RF PCB
(very low loss and high thermal performance)
* ROHS Compliant
* Xinger PN: DC3338J5005AHF
Applications:
* Wireless Communication
* Test Instrumentation
* Mobile Infrastructure
* Power Detection

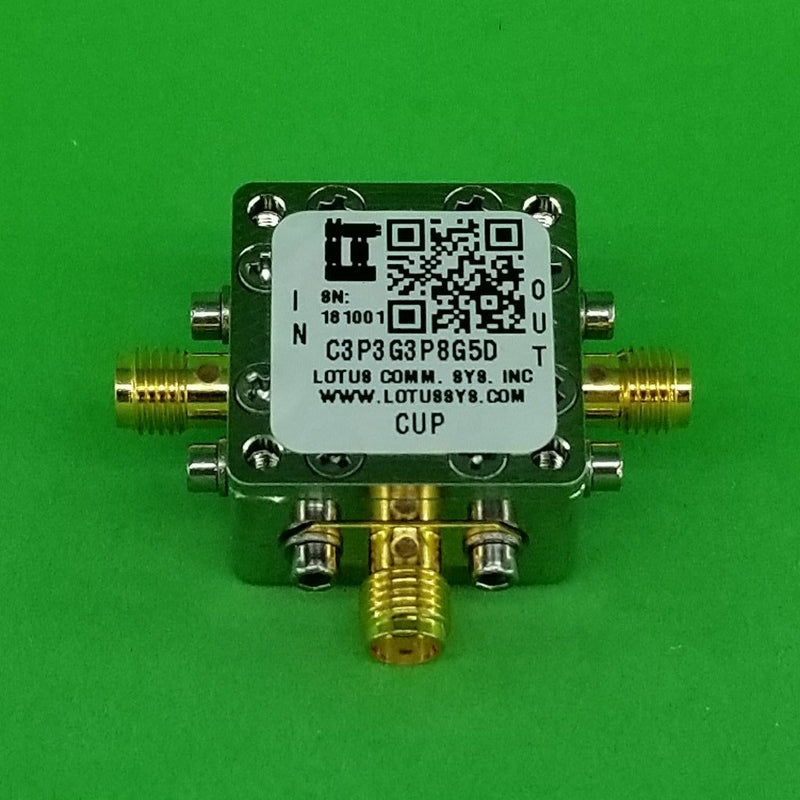

This Directional Coupler includes the RF Enclosure as shown in picture.
Proudly MADE IN USA by Lotus Communication Systems, INC. in Massachusetts.
