Directional Coupler 2.3 GHz to 3.7 GHz 20dB 2W Low Insertion Loss
$ 108.00 USD
C2P3G3P7G20D is a 20 dB Directional Coupler in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1P3). The Coupler has a bandwidth of 2300 to 3700 MHz. The Coupler has low insertion loss.
SKU#: AK20-002C
Features:
* Frequency Range: 2300 MHz to 3700 MHz;
* Mean Coupling: 20 dB
* Through Loss: 0.6 dB
* Maximum Input Power: 2 Watts
* Stainless Steel SMA Female Connector
* High Quality Rogers RO4350 RF PCB
(very low loss and high thermal performance)
* ROHS Compliant
* Xinger PN: DC2337J5020AHF
Applications:
* Wireless Communication
* Test Instrumentation
* Mobile Infrastructure
* Power Detection

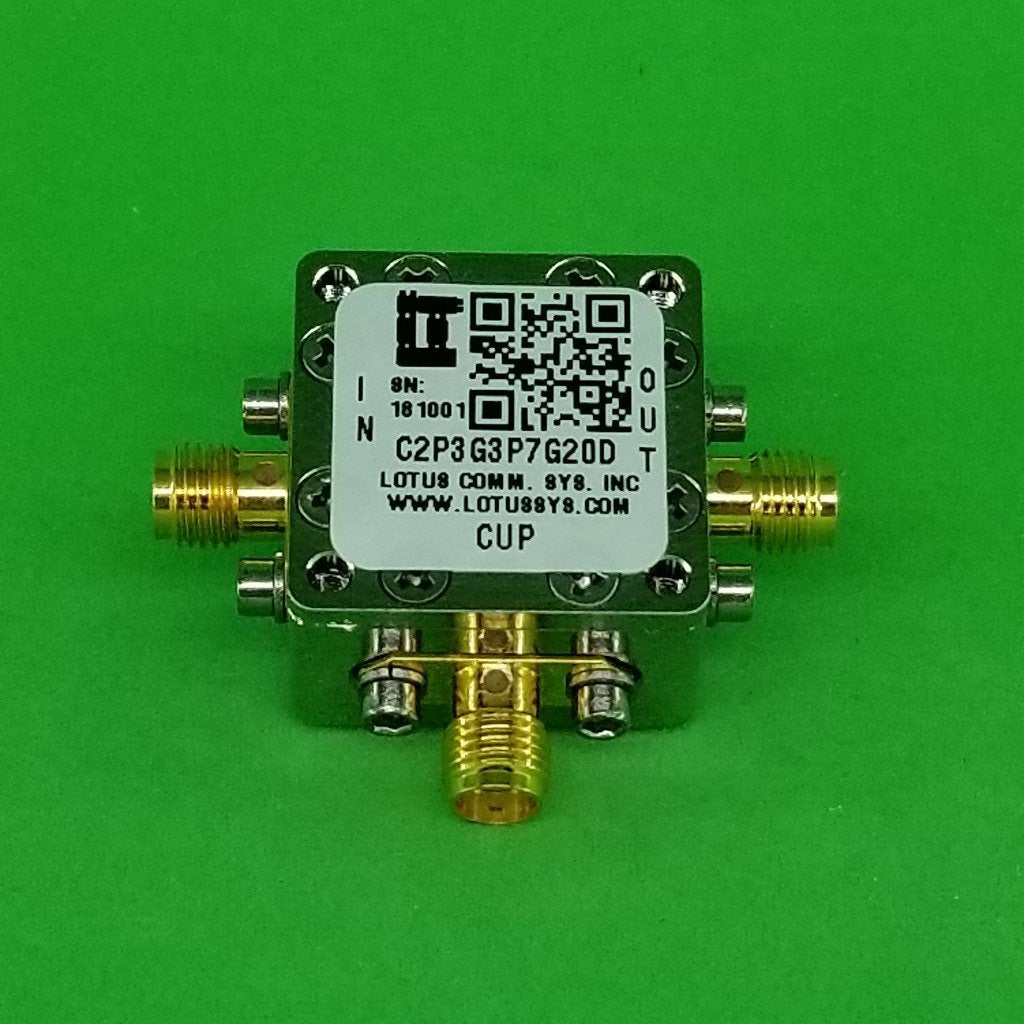

This Directional Coupler includes the RF Enclosure as shown in picture.
Proudly MADE IN USA by Lotus Communication Systems, INC. in Massachusetts.
