Directional Coupler 2000 MHz to 2300 MHz 5dB 70W Low Insertion Loss
$ 98.00 USD

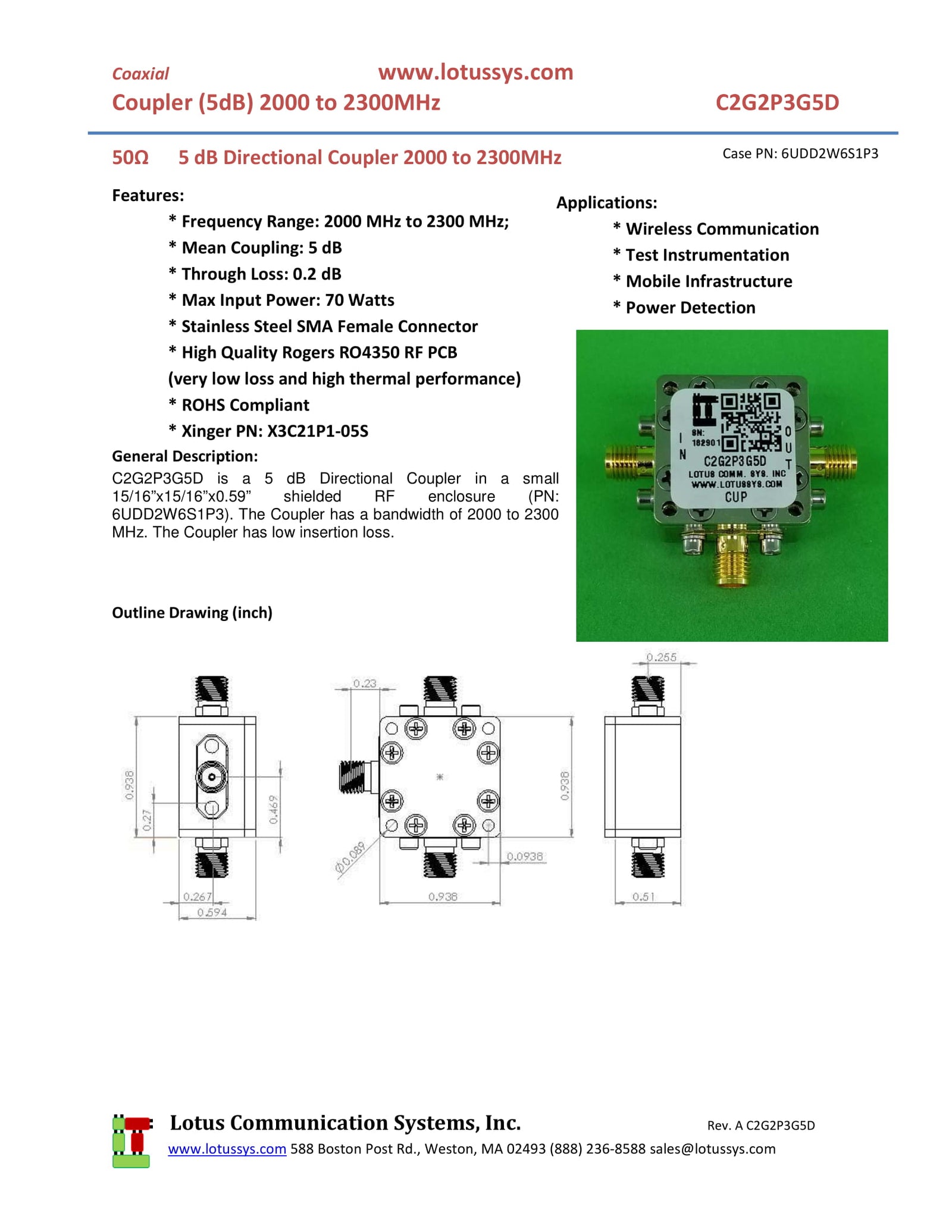

C2G2P3G5D is a 5 dB Directional Coupler in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1P3). The Coupler has a bandwidth of 2000 to 2300 MHz. The Coupler has low insertion loss.
Features: * Frequency Range: 2000 MHz to 2300 MHz; * Mean Coupling: 5 dB * Through Loss: 0.2 dB * Maximum Input Power: 70 Watts * Stainless Steel SMA Female Connector * High Quality Rogers RO4350 RF PCB (very low loss and high thermal performance) * ROHS Compliant * Xinger PN: X3C21P1-05S
Applications: * Wireless Communication * Test Instrumentation * Mobile Infrastructure * Power Detection

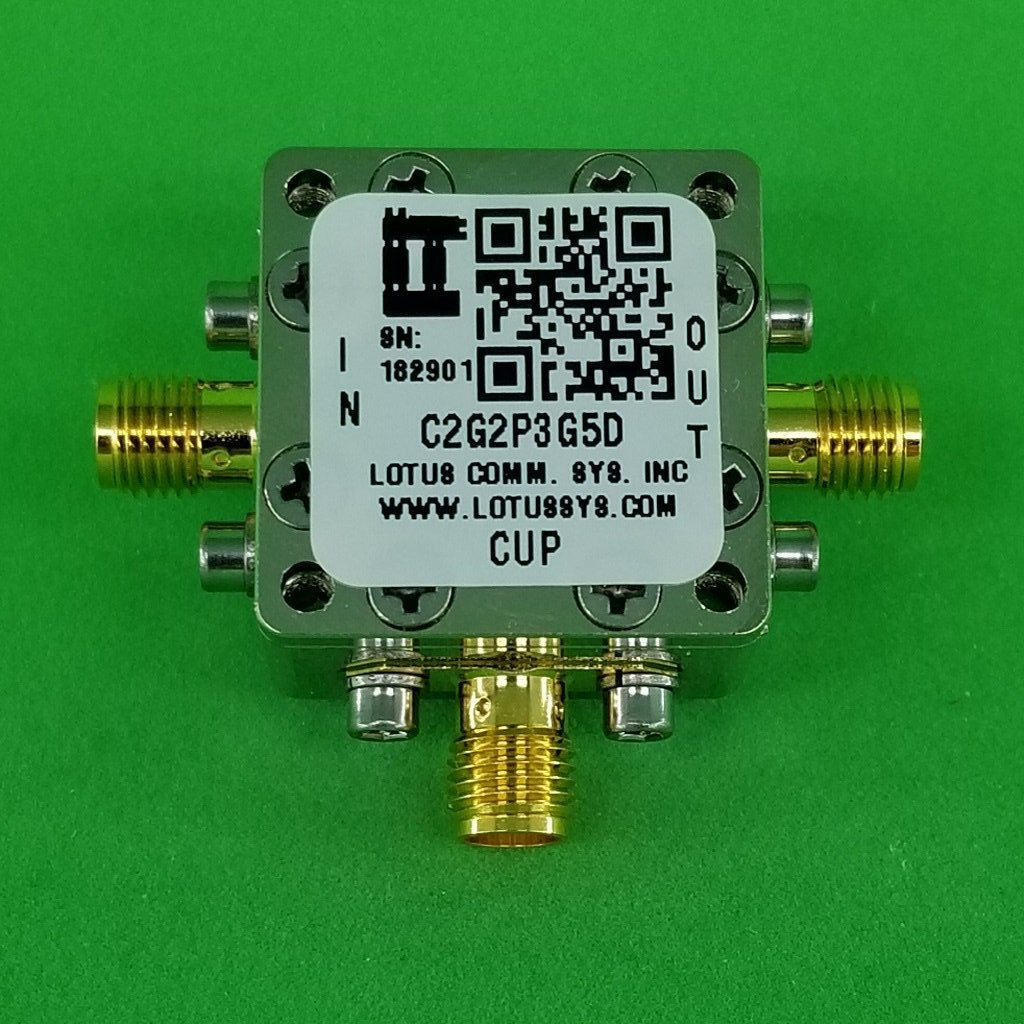

This Directional Coupler includes the RF Enclosure as shown in picture.
Proudly MADE IN USA by Lotus Communication Systems, INC. in Massachusetts.
