    Directional Coupler 1700 MHz to 2000 MHz 5dB 70W Low Insertion Loss
    Directional Coupler 1700 MHz to 2000 MHz 5dB 70W Low Insertion Loss
    Directional Coupler 1700 MHz to 2000 MHz 5dB 70W Low Insertion Loss

    Directional Coupler 1700 MHz to 2000 MHz 5dB 70W Low Insertion Loss

    $ 108.00 USD

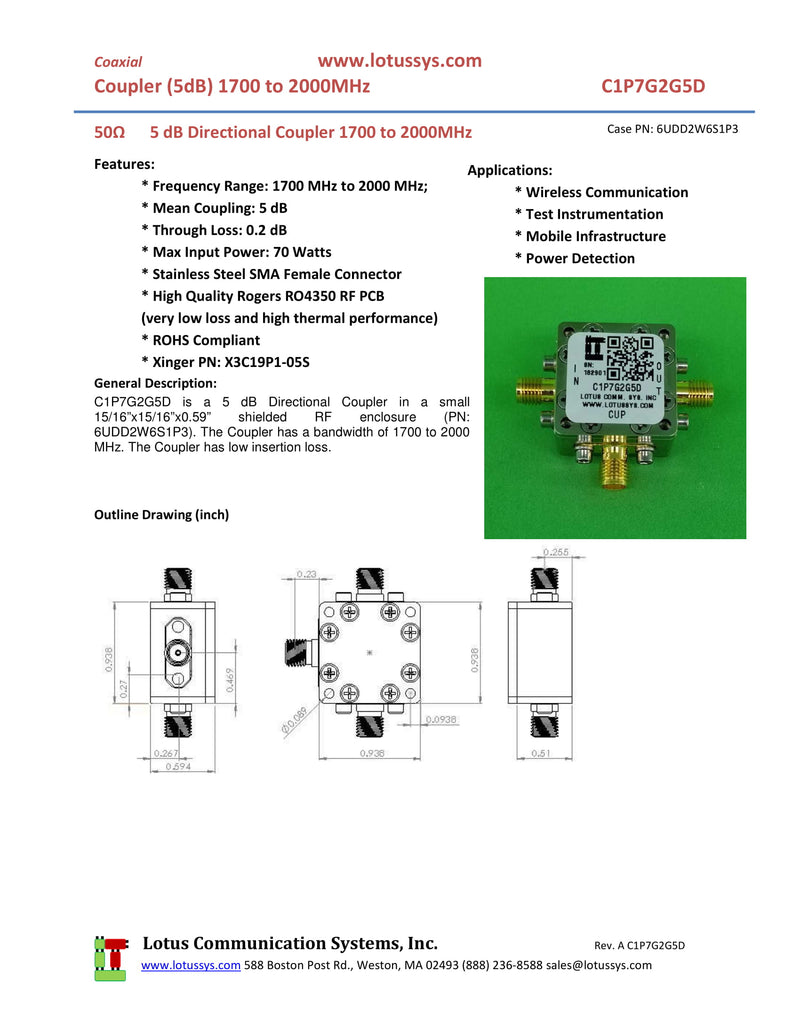

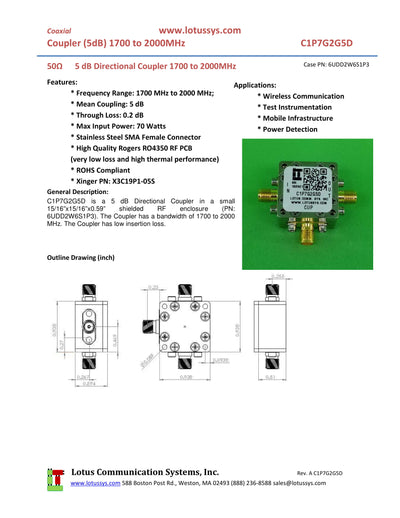

    C1P7G2G5D is a 5 dB Directional Coupler in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1P3). The Coupler has a bandwidth of 1700 to 2000 MHz. The Coupler has low insertion loss.

    SKU#: AK20-003A

    Features:
        * Frequency Range: 1700 MHz to 2000 MHz;
        * Mean Coupling: 5 dB
        * Through Loss: 0.2 dB
        * Maximum Input Power: 70 Watts
        * Stainless Steel SMA Female Connector
        * High Quality Rogers RO4350 RF PCB
        (very low loss and high thermal performance)
        * ROHS Compliant
        * Xinger PN: X3C19P1-05S

    Applications:
        * Wireless Communication
        * Test Instrumentation
        * Mobile Infrastructure
        * Power Detection

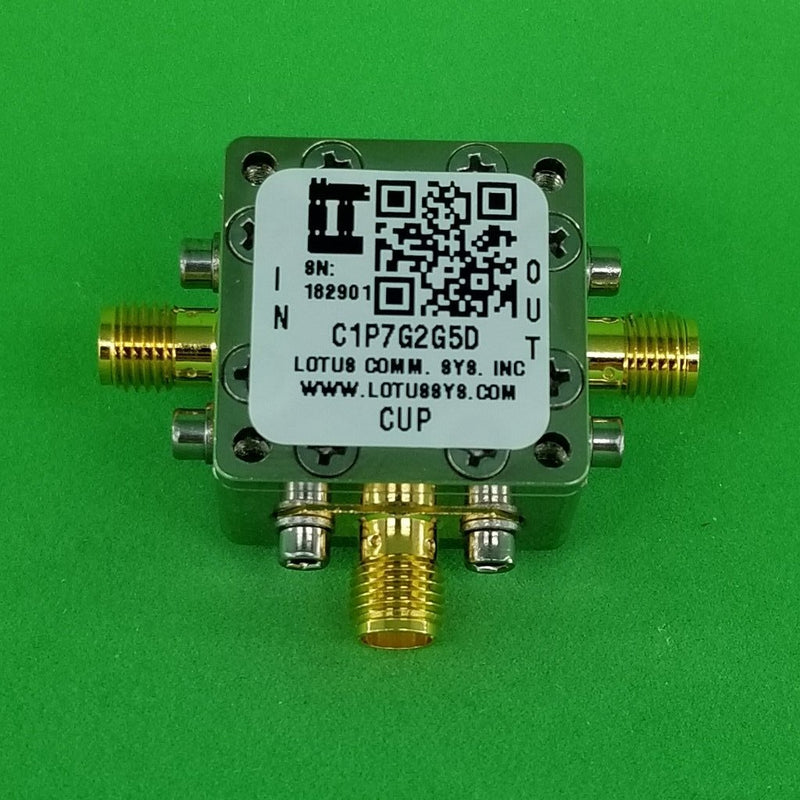

    This Directional Coupler includes the RF Enclosure as shown in picture.

    Proudly MADE IN USA by Lotus Communication Systems, INC. in Massachusetts.
