  • Software Defined Block Up/Down Converter 3G~20GHz External 10MHz Reference

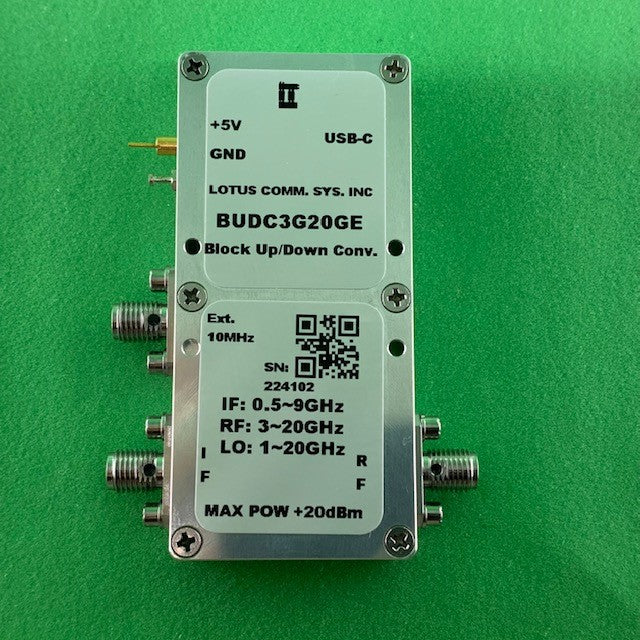

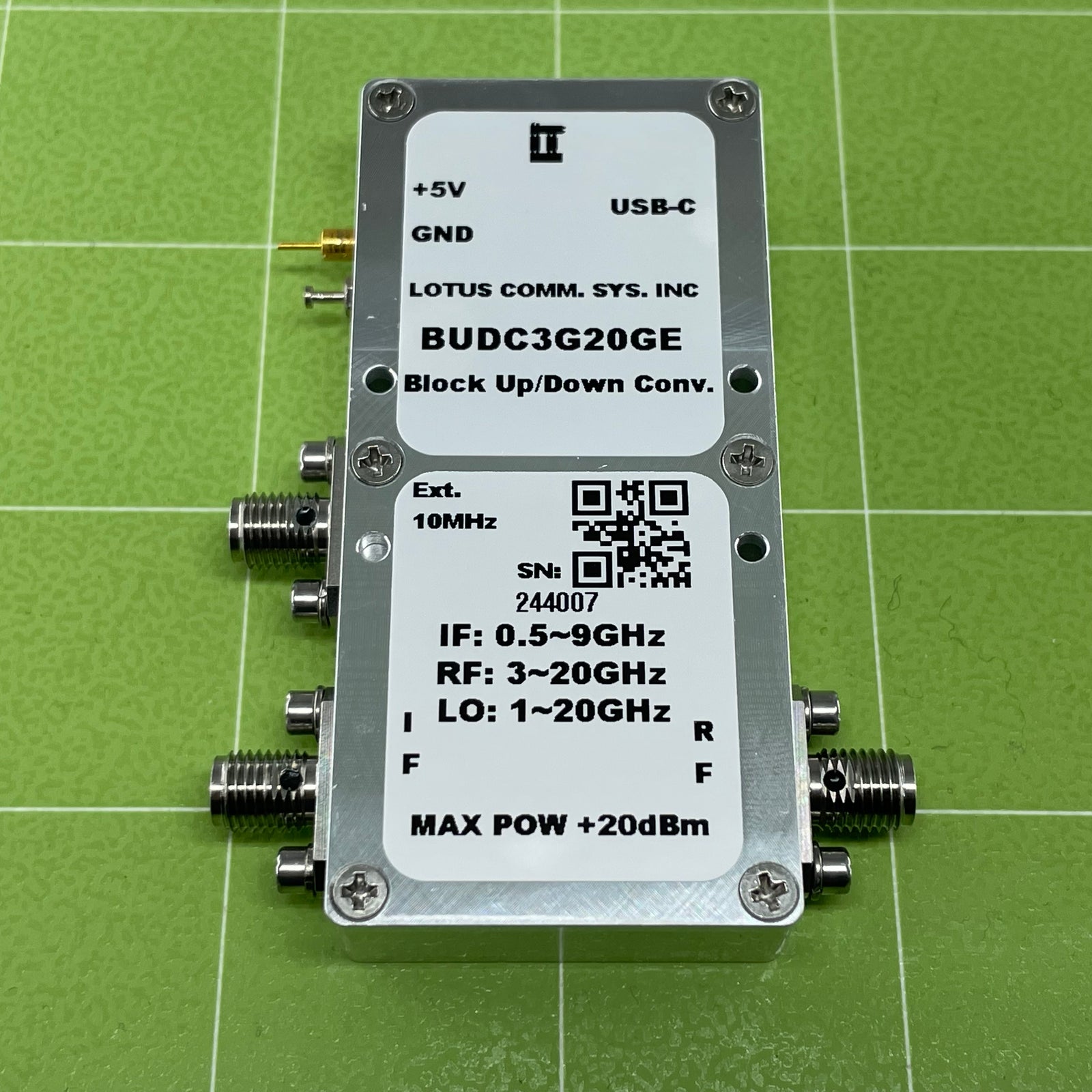

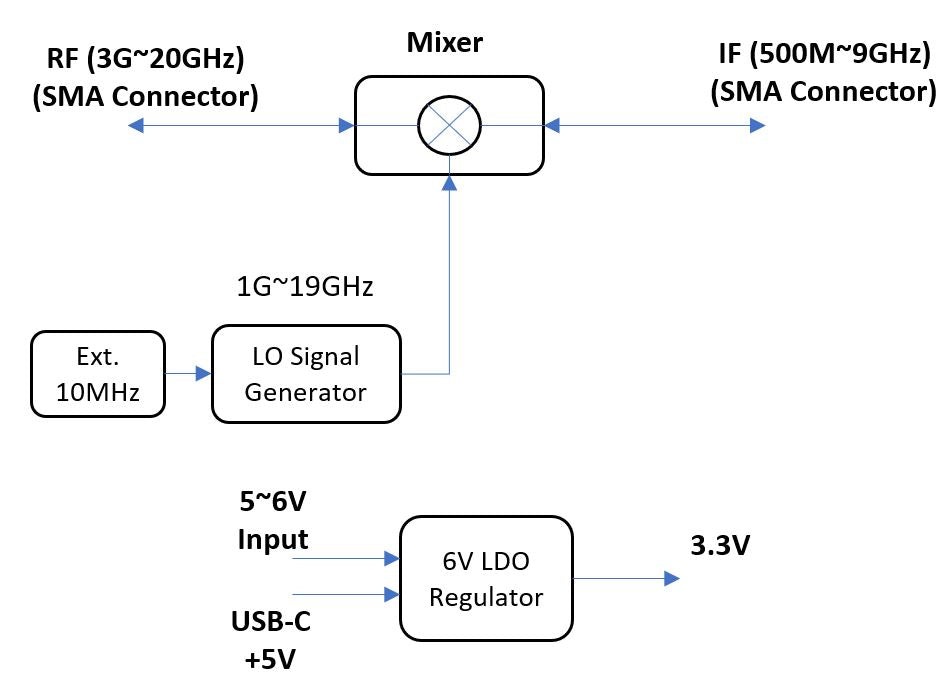

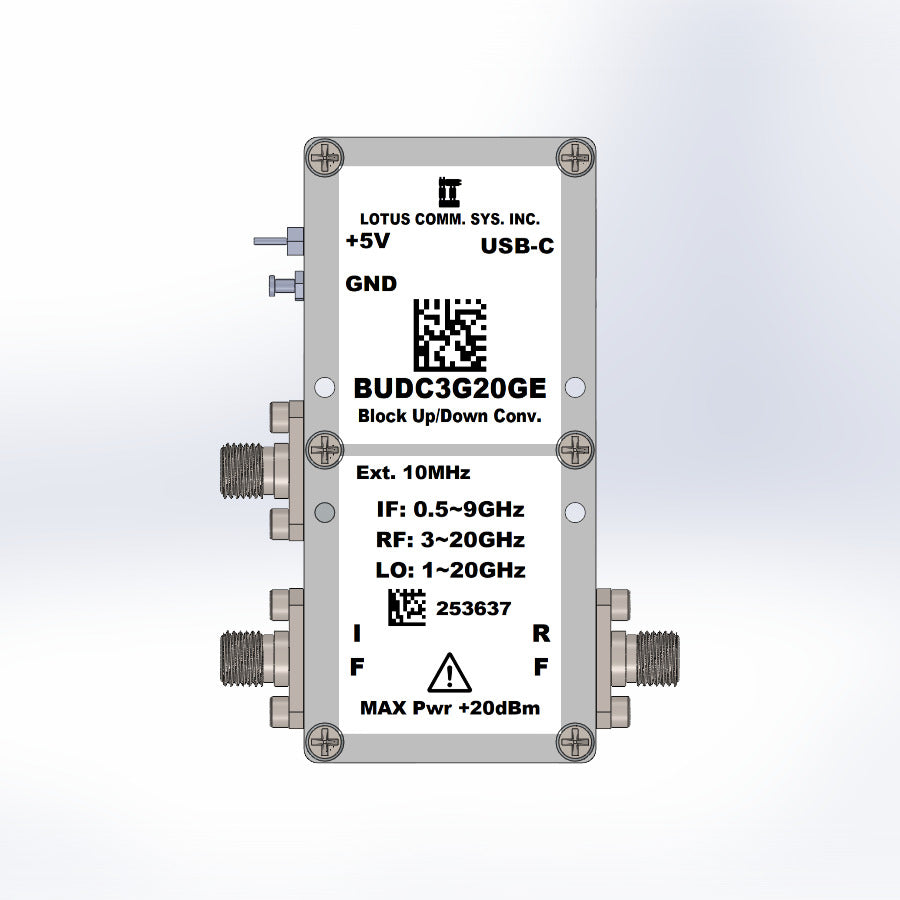

    Part Number: BUDC3G20GE is a software defined block up/down converter.  RF frequency range is 3GHz to 20GHz and IF frequency range is 500MHz to 9GHz.  An Integrated low phase noise LO support LO frequencies from 1GHz to 19GHz.

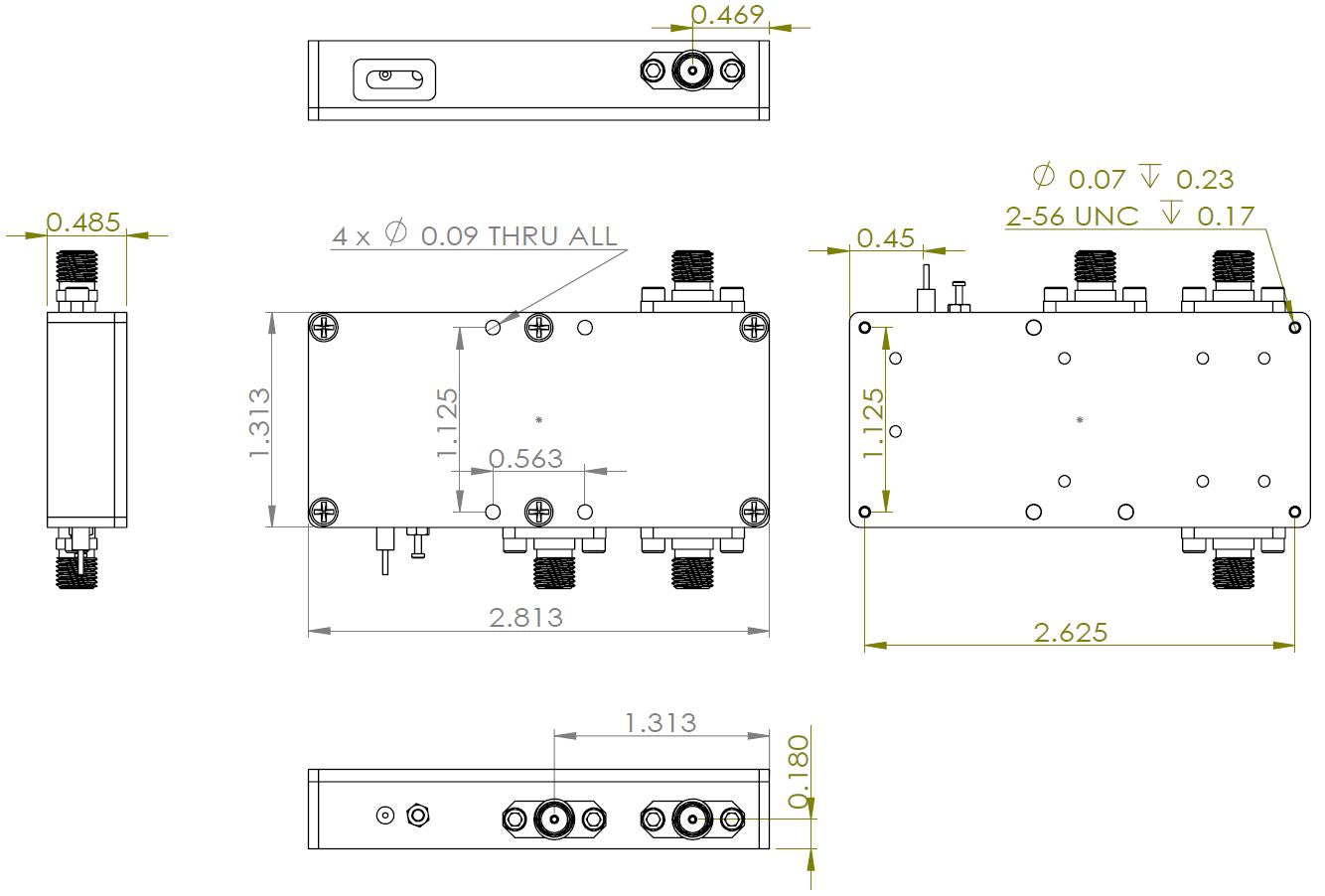

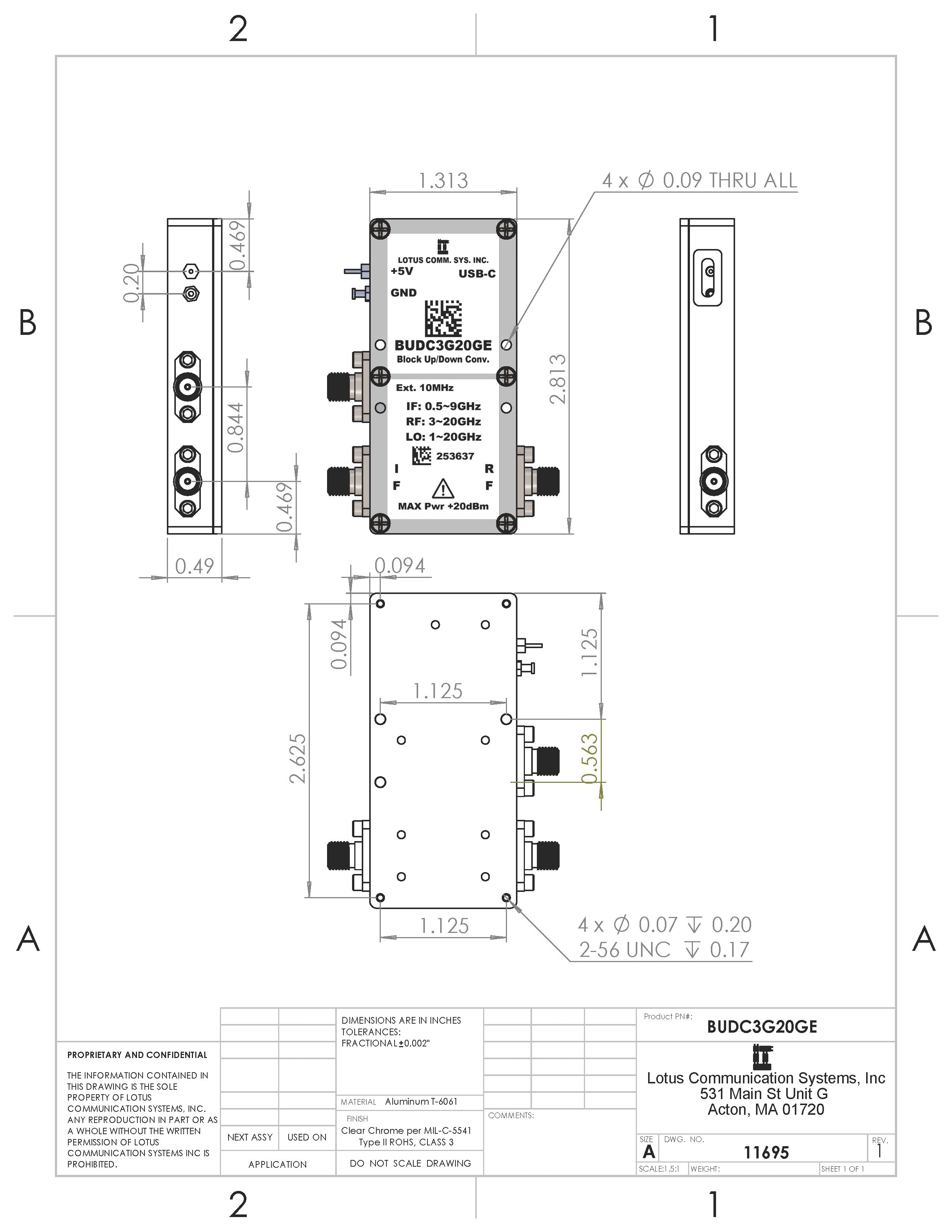

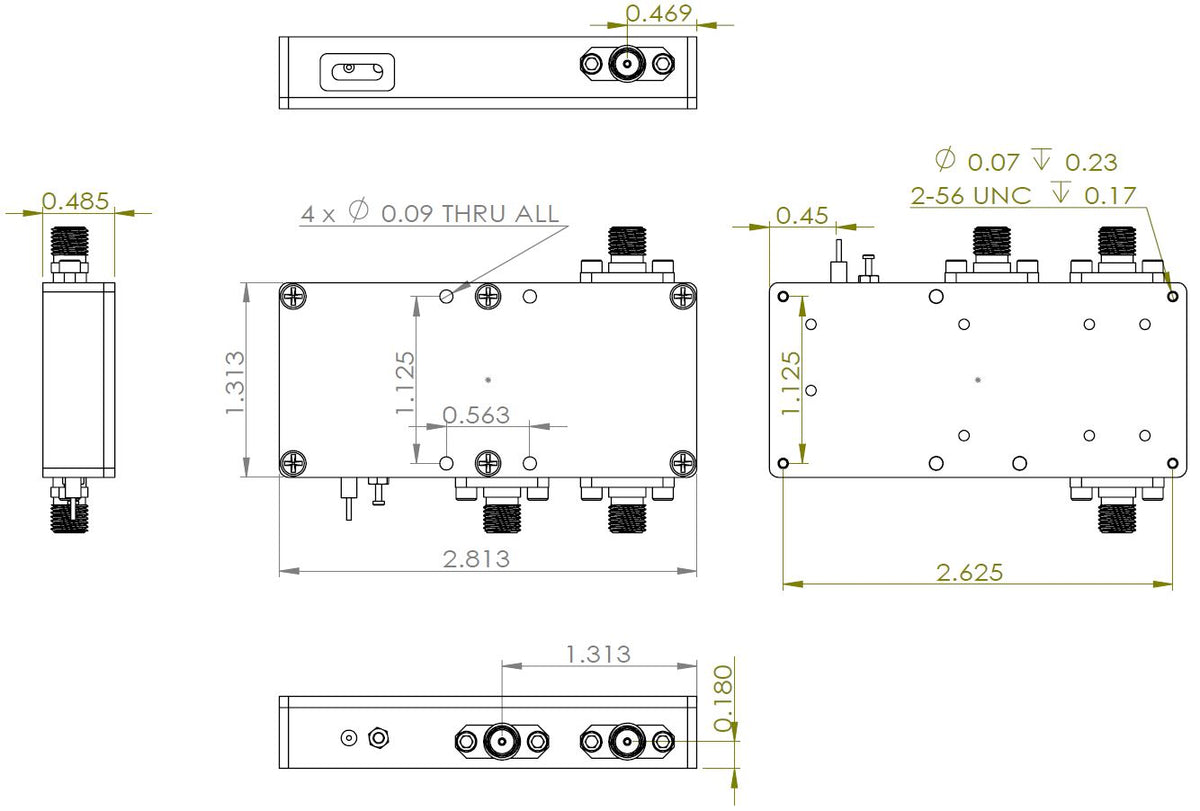

    It has 12.0dB conversion loss at 17GHz with low LO‐RF leakage <30dBm. It can be powered either by USB‐C or +5~6V terminal with 235mA current draw. It has dimension of 2.8125”x1.3125”x0.48”.

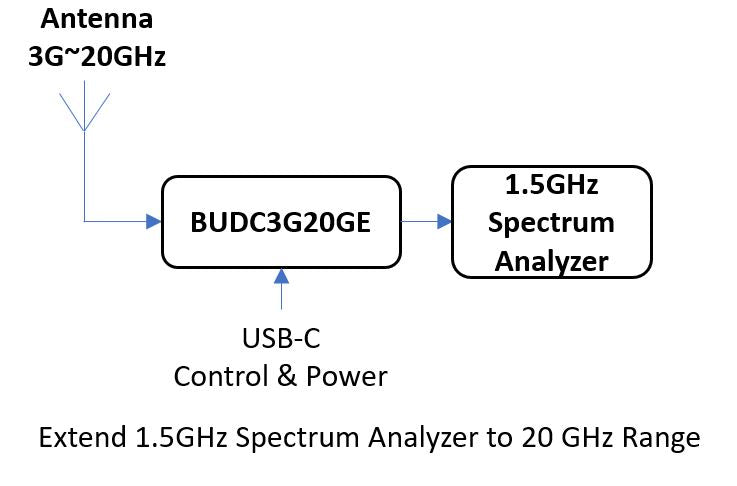

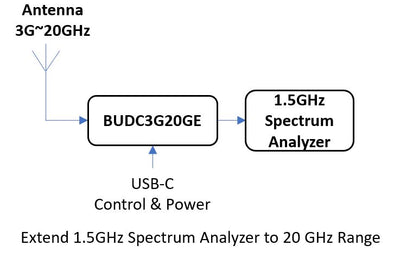

    The converter has broad applications and can be used to extend spectrum analyzer measurement range to 20GHz.  The internal LO locks on External 10MHz Reference clock signal.

    SKU#: AK20-022S

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).

    9 items left

    Features

    • Up-conversion or Down-conversion
    • RF Frequency 3GHz to 20 GHz
    • IF Frequency 500MHz to 9 GHz
    • Integrated LO (no External Reference/LO needed)
    • Software Programmable LO Frequency (1G~19GHz)
    • Low LO‐RF Leakage: <‐30dBm
    • Power by USB‐C or +5~6V Terminal/235mA current
    • Operating Temperature: ‐40C to +60C
    • ROHS Compliant

    Applications

    • Microwave Transceivers/Point-to-Point Microwave
    • Test Instrument
    • Satellite Block Up/Down Conversion
    • C, X and Ku Band RADAR
    • Software Defined Radio/Ham Radio

    Resources (PDF Datasheet)

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png BUDC3G20GE Datasheet

    Operational Manual

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.pngBUDC User Manual

    Windows GUI Control SW

    Self-Executable GUI SW Download

    USB Windows Driver (No need for Windows 10)

    USB Windows Driver Installer
