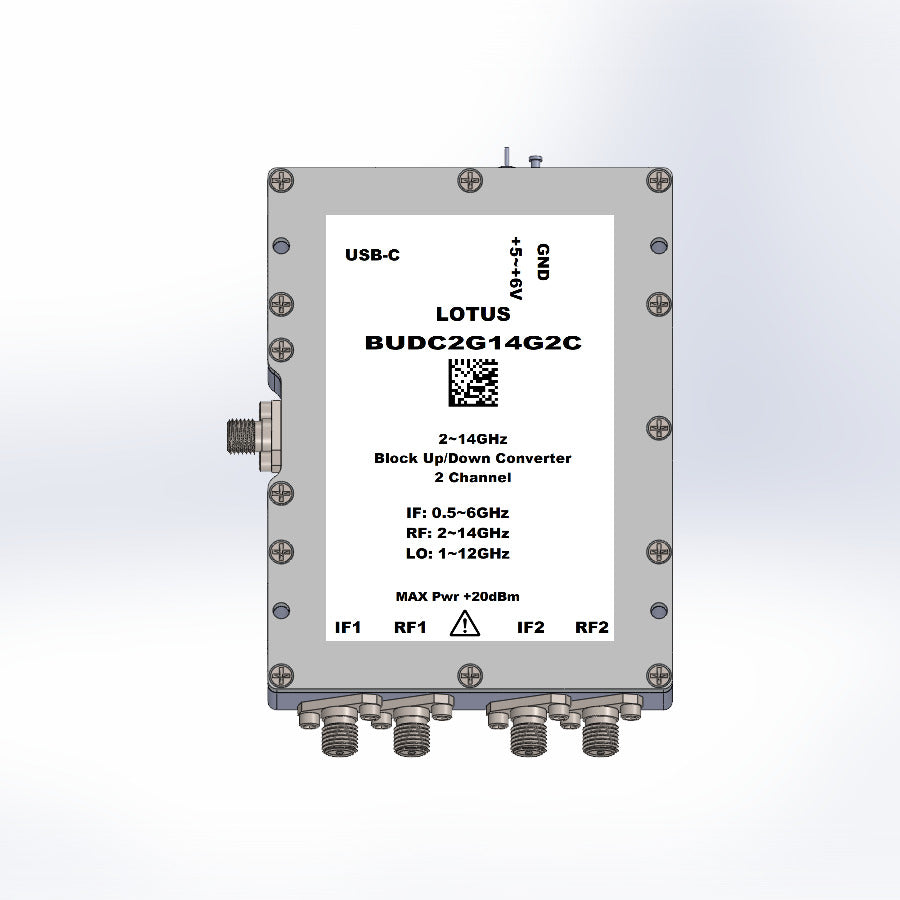

2 Channel Phase Coherent Block Up/Down Converter 2G~14GHz BUDC2G14G2C
$ 3,188.00 USD
Part Number: BUDC2G14G2C is a 2 Channel Phase Coherent 2G~14 GHz block up/down converter that can be used for up conversion or down conversion. RF frequency range is 2GHz to 14GHz and IF frequency range is 500MHz to 6GHz. Two Phase Coherent low phase noise LOs support LO frequencies from 1GHz to 12GHz.

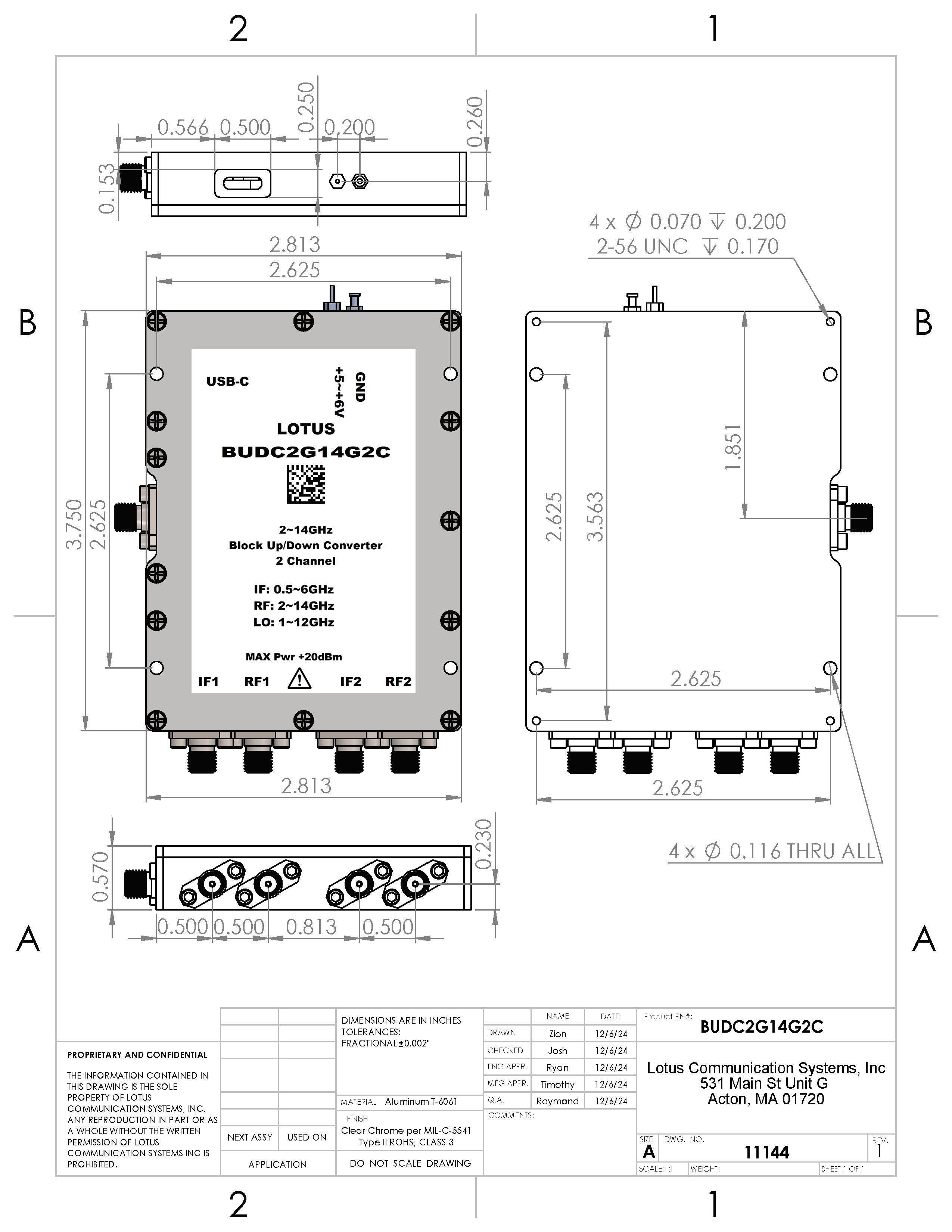

It has 8.0dB conversion loss at 5.8GHz with low LO-RF leakage <30dBm. It can be powered either by USB-C or +5~6V terminal with 390mA current draw. It has dimension of 2.813x3.75x0.57.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).
Features
- Up-conversion or Down-conversion
- 2 Channel Phase Coherent (Share same LO)
- RF Frequency 2GHz to 14 GHz
- IF Frequency 500MHz to 6 GHz
- Internal 10MHz Ref.
- Integrated LO (no External Reference/LO needed)
- Software Programmable LO Frequency (1G~12GHz)
- Low LO‐RF Leakage: <‐30dBm
- Power by USB‐C or +5~6V Terminal/600mA current
- Operating Temperature: ‐40C to +60C
- ROHS Compliant
Applications
- Test Instrumentation
- Satellite Block Up/Down Conversion
- Wireless and Optical Communication
Resources (PDF Datasheet)
BUDC2G14G2C Datasheet
