    Bias Tee Broadband 50 MHz to 8.2 GHz (Max. 300mA 16V DC)
    Bias Tee Broadband 50 MHz to 8.2 GHz (Max. 300mA 16V DC)
    Bias Tee Broadband 50 MHz to 8.2 GHz (Max. 300mA 16V DC)
    Bias Tee Broadband 50 MHz to 8.2 GHz (Max. 300mA 16V DC)
    Bias Tee Broadband 50 MHz to 8.2 GHz (Max. 300mA 16V DC)

    Bias Tee Broadband 50 MHz to 8.2 GHz (Max. 300mA 16V DC)

    $ 98.00 USD

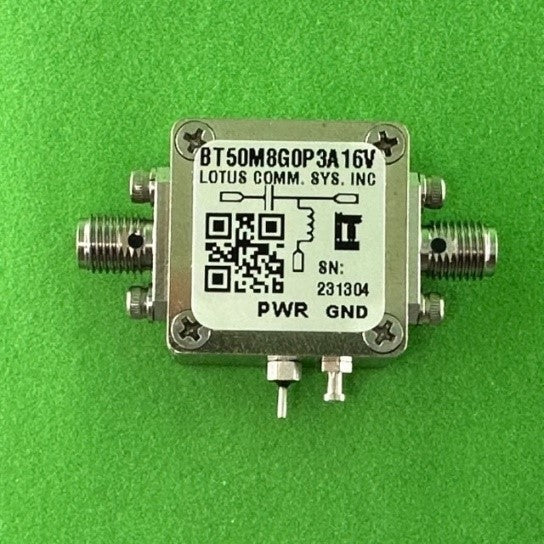

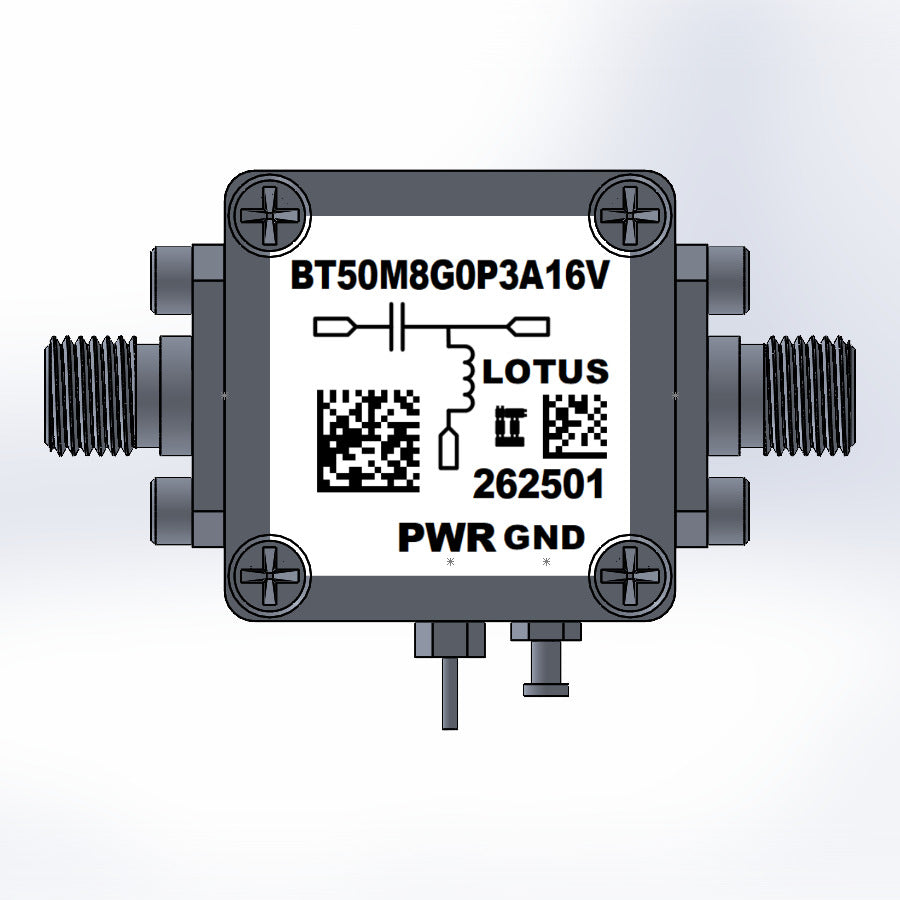

    Part Number: BT50M8G0P3A16V.  50Ω Broadband Bias-T 50 MHz to 8.2 GHz.  Maximum current 300mA and 16V DC.

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts. SKU#: AK20-002J.

    13 items left

    Features

    • Broadband Performance 50 MHz to 8.2 GHz
    • DC Current: 300mA
    • DC Voltage: 16VDC
    • Low DCR and excellent current handling
    • Insertion Loss 1.0dB typ.
    • Stainless Steel SMA Female Connector
    • High Quality Rogers RO4350 RF PCB
    • ROHS Compliant

    Applications

    • Test Instrumentation
    • Biasing Amplifiers
    • Modulators driven with high frequency data patterns
    • SDR & Ham Radio

    Resources (PDF Datasheet)

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png BT50M8G0P3A16V Datasheet
