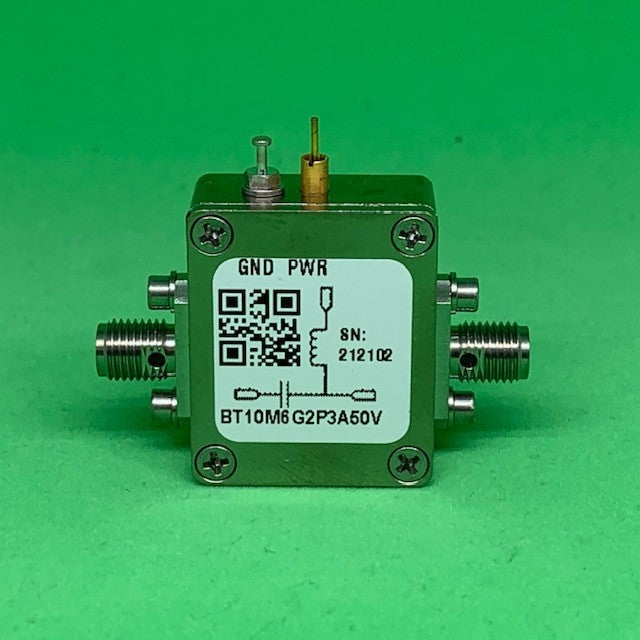

Bias Tee Broadband 10 MHz to 6 GHz (Max. 2.3A 50V DC)

16 items left

PN#: BT10M6G2P3A50Vis 50Ω Broadband Bias Tee 10 MHz to 6 GHz. . It covers 10 MHz to 6 GHz and can handle maximum 2.3A current and 50V DC. SKU#: AK20-002G.

Proudly Made in USA by Lotus Communication Systems, INC. in Weston, MA.

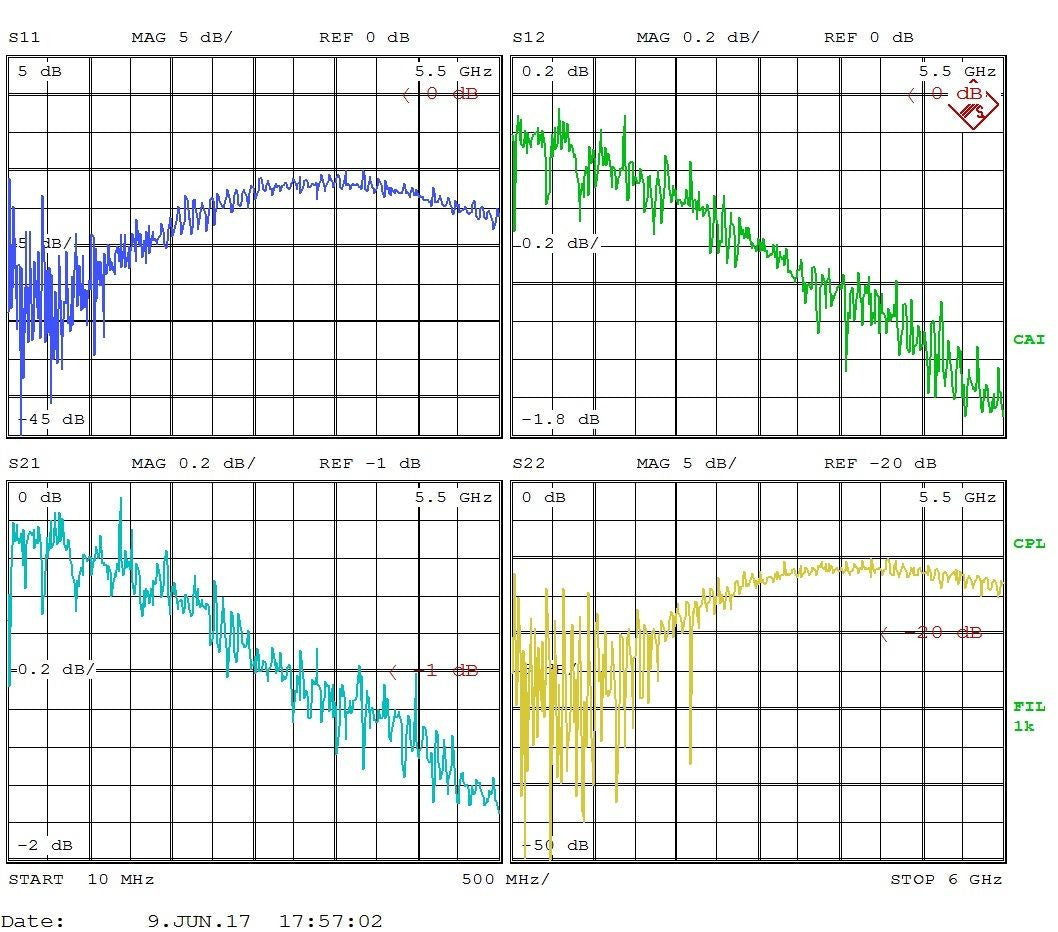

  • Broadband Performance 10 MHz to 6 GHz
  • Use resonance-free conical inductor
  • High quality stainless steel SMA female connector
  • High quality RO4350 RF PCB (very low loss and high thermal performance)
  • Maximum Current: 2.3A, Maximum DC Voltage: 50V
  • ROHS Compliant


  • Biasing Amplifiers/RF circuits
  • Biasing Lasers
  • Modulators driven with high frequency data patterns
  • Test Instrumentation
  • SDR & Ham Radio

Resources (PDF Datasheet) BT10M6G2P3A50V Datasheet
