Home / Products / Bias Tee Broadband 10 MHz to 6 GHz (Max. 2.3A 100V DC)

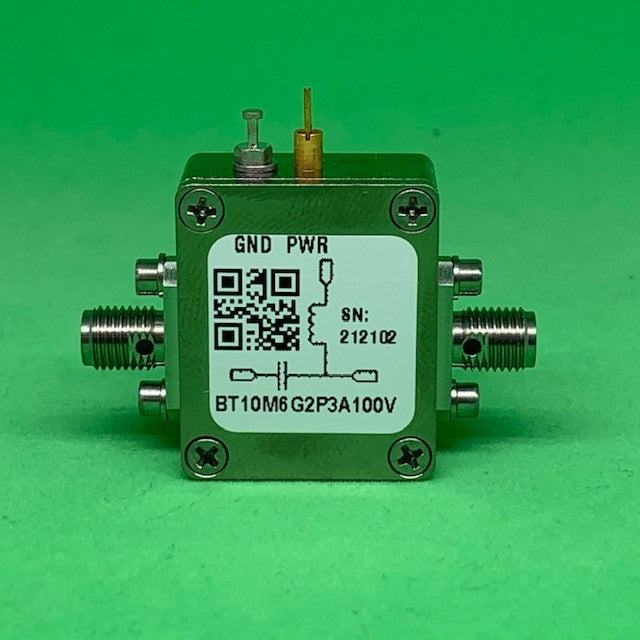

Bias Tee Broadband 10 MHz to 6 GHz (Max. 2.3A 100V DC)
Bias Tee Broadband 10 MHz to 6 GHz (Max. 2.3A 100V DC)
Bias Tee Broadband 10 MHz to 6 GHz (Max. 2.3A 100V DC)
Bias Tee Broadband 10 MHz to 6 GHz (Max. 2.3A 100V DC)
Bias Tee Broadband 10 MHz to 6 GHz (Max. 2.3A 100V DC)
Bias Tee Broadband 10 MHz to 6 GHz (Max. 2.3A 100V DC)
Bias Tee Broadband 10 MHz to 6 GHz (Max. 2.3A 100V DC)
Bias Tee Broadband 10 MHz to 6 GHz (Max. 2.3A 100V DC)

BT10M6G2P3A100V

Bias Tee Broadband 10 MHz to 6 GHz (Max. 2.3A 100V DC)

$ 86.99 USD

2 items left

50Ω Broadband Bias Tee 10 MHz to 6 GHz. PN: BT10M6G2P3A100V. It covers 10 MHz to 6 GHz and can handle maximum 2.3A current and 100V DC. SKU#: AK20_002G.

Proudly Made in USA by Lotus Communication Systems, INC. in Weston, MA.

Collections: SMA Broadband Bias Tees


Features

  • Broadband Performance 10 MHz to 6 GHz
  • Use resonance-free conical inductor
  • High quality stainless steel SMA female connector
  • High quality RO4350 RF PCB (very low loss and high thermal performance)
    • Maximum Current: 2.3A, Maximum DC Voltage: 100V
  • ROHS Compliant

Applications

  • Biasing Amplifiers/RF circuits
  • Biasing Lasers
  • Modulators driven with high frequency data patterns
  • Test Instrumentation
  • SDR & Ham Radio

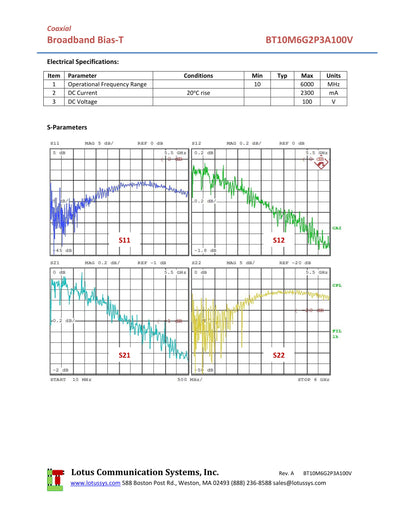

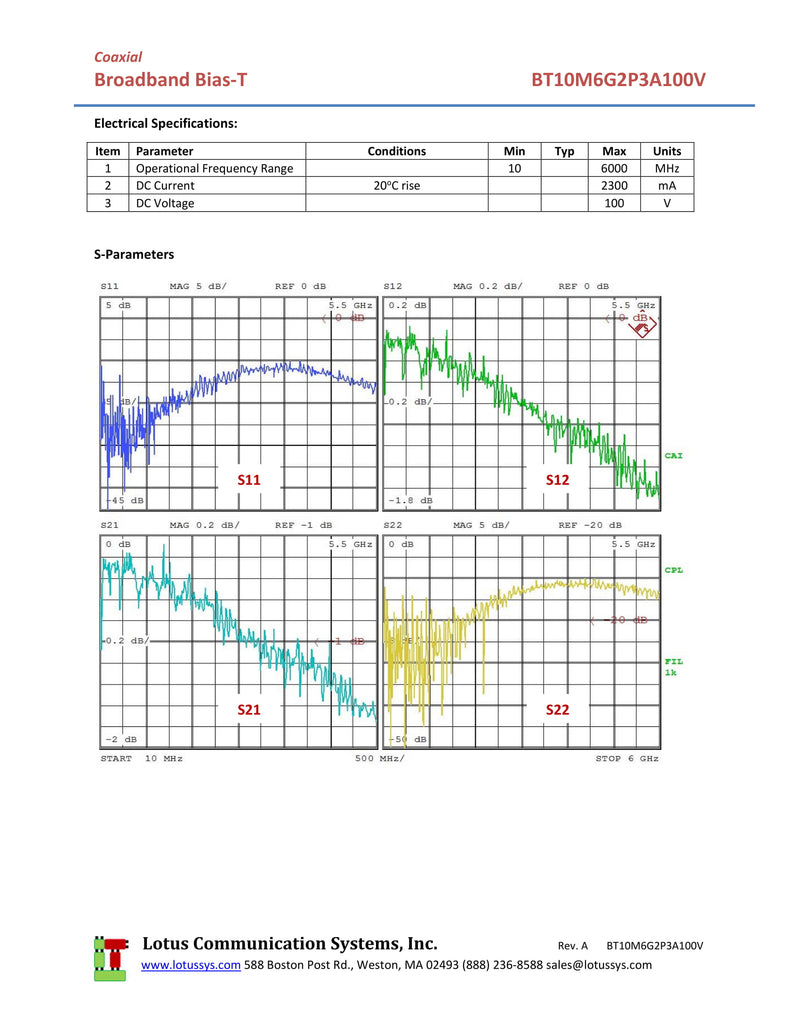

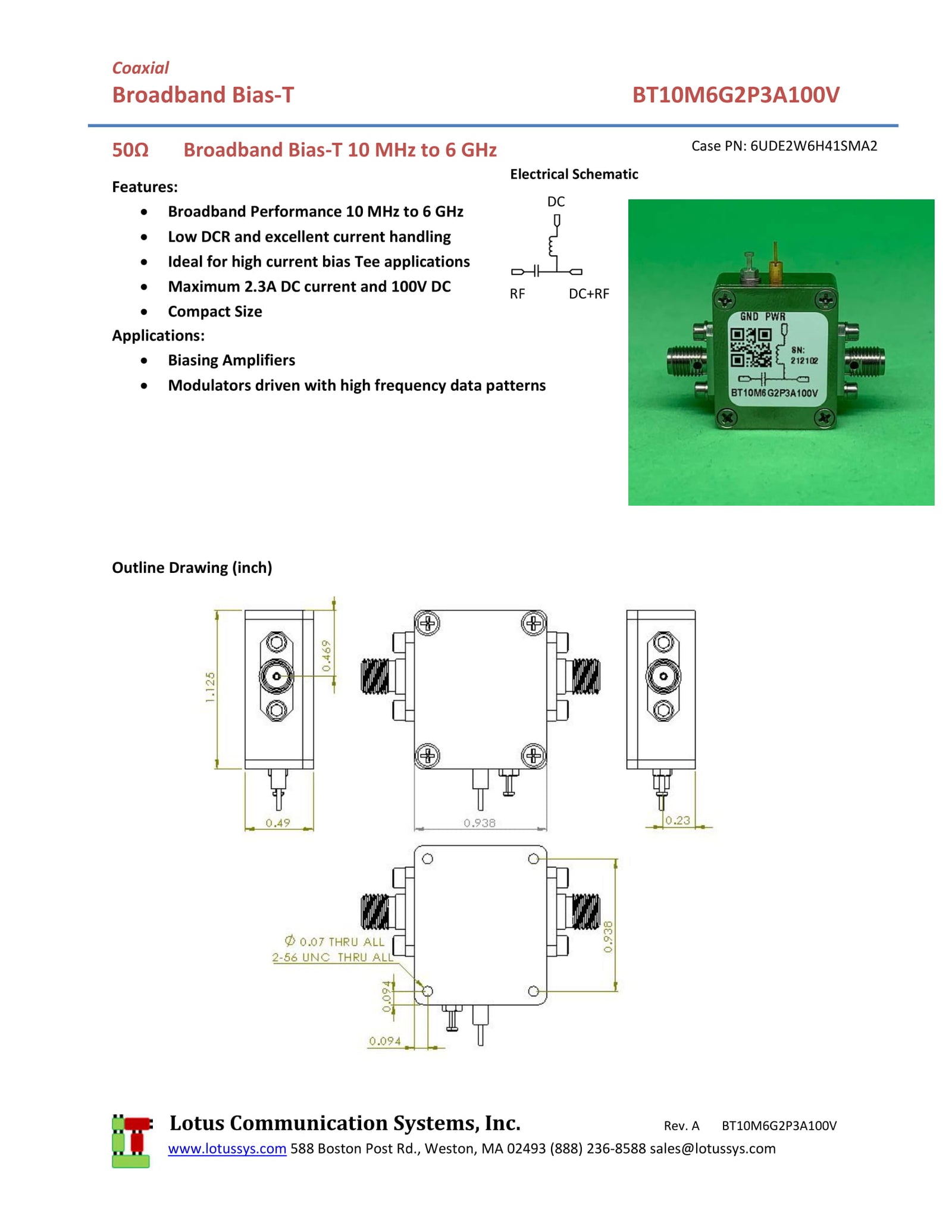

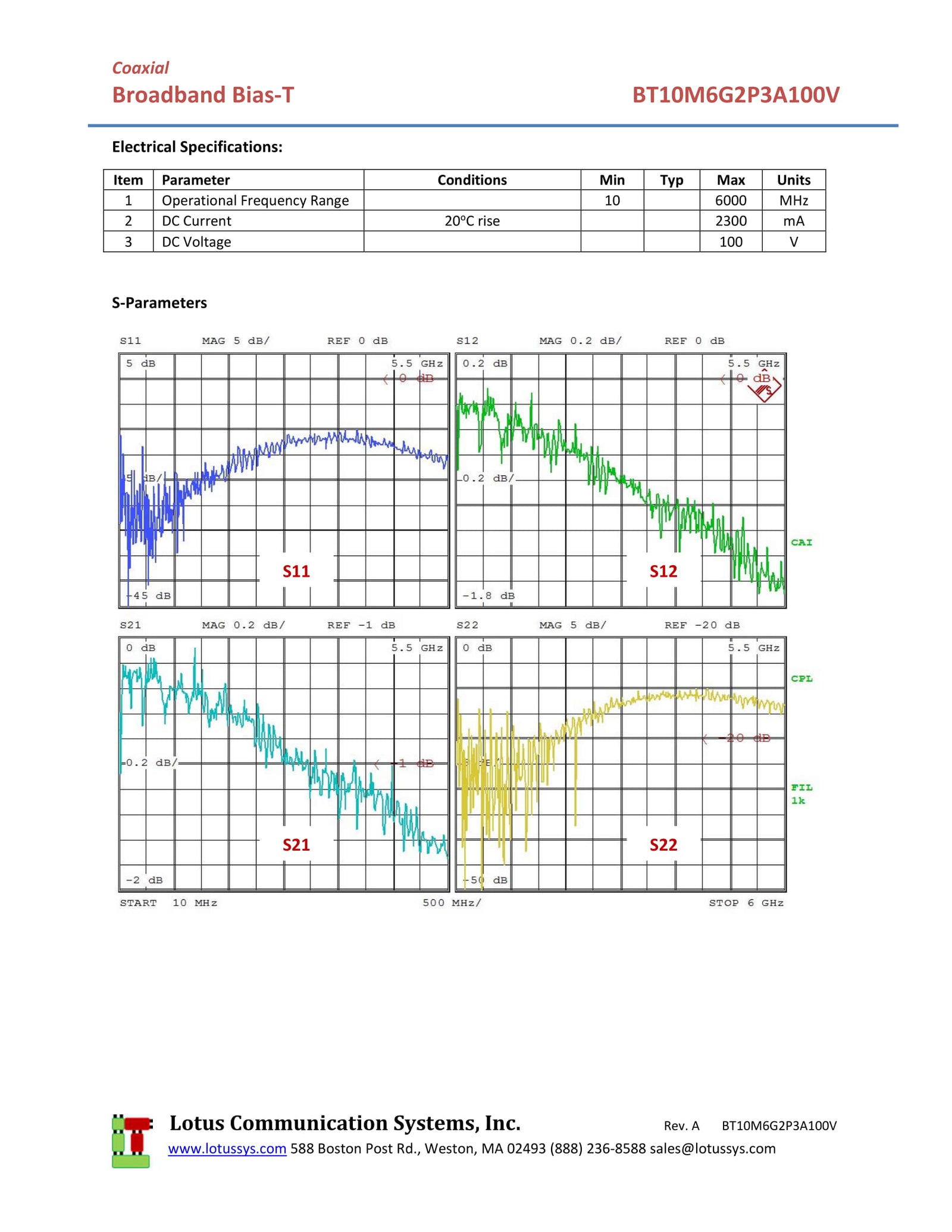

Resources (PDF Datasheet)

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png BT10M6G2P3A100V Datasheet
