    Bias Tee Broadband 10 MHz to 6 GHz (Max. 1.2A 100V DC)
    Bias Tee Broadband 10 MHz to 6 GHz (Max. 1.2A 100V DC)
    Bias Tee Broadband 10 MHz to 6 GHz (Max. 1.2A 100V DC)
    Bias Tee Broadband 10 MHz to 6 GHz (Max. 1.2A 100V DC)
    Bias Tee Broadband 10 MHz to 6 GHz (Max. 1.2A 100V DC)

    Bias Tee Broadband 10 MHz to 6 GHz (Max. 1.2A 100V DC)

    $ 152.90 USD

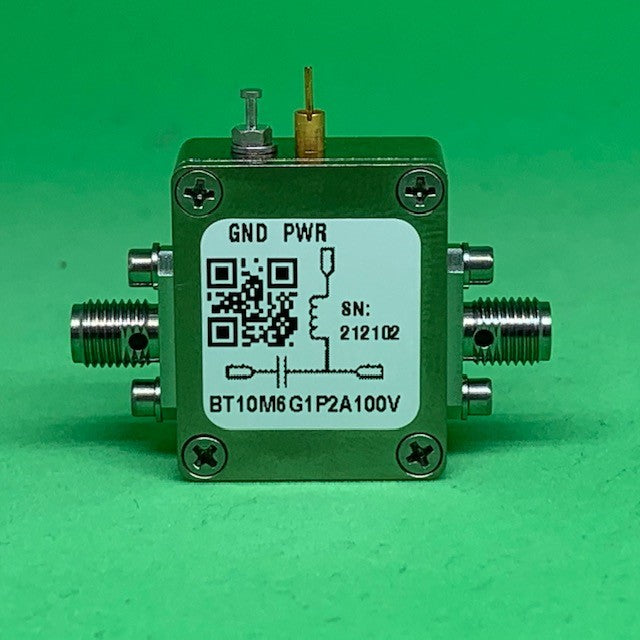

    Part Number: BT10M6G1P2A100V is a 50Ω Broadband Bias-T 10 MHz to 6 GHz.  Maximum current 1.2A and 100V DC. It covers 10 MHz to 6 GHz and can handle maximum 1.2A current and 100V DC. SKU#: AK20-002G.

    Proudly Made in USA by Lotus Communication Systems, INC. in Weston, MA.

    Features

    • Broadband Performance 10 MHz to 6 GHz
    • Use resonance-free conical inductor
    • High quality stainless steel SMA female connector
    • High quality RO4350 RF PCB (very low loss and high thermal performance)
      • Maximum Current: 1.2A, Maximum DC Voltage: 100V
    • ROHS Compliant

    Applications

    • Biasing Amplifiers/RF circuits
    • Biasing Lasers
    • Modulators driven with high frequency data patterns
    • Test Instrumentation
    • SDR & Ham Radio

    Resources

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png BT10M6G1P2A100V Datasheet
