AK20_002N

Bias Tee Broadband 10 MHz to 18 GHz (Max. 1200mA) 16V DC

Notify me when this product is available:

50Ω Broadband Bias Tee 10 MHz to 18 GHz. PN: BT10M18G1P2A16V.  It covers 10 MHz to 18 GHz and can handle maximum 1.2A current and 16V DC.

Features:
•    Broadband Performance 10 MHz to 18 GHz
•    Use resonance-free conical inductor
•    High quality stainless steel SMA female connector
•    High quality RO4350 RF PCB (very low loss and high thermal performance)
•    Maximum Current: 1.2A, Maximum DC Voltage: 16V

Applications:
•    Biasing Amplifiers/RF circuits
•    Biasing Lasers
•    Modulators driven with high frequency data patterns

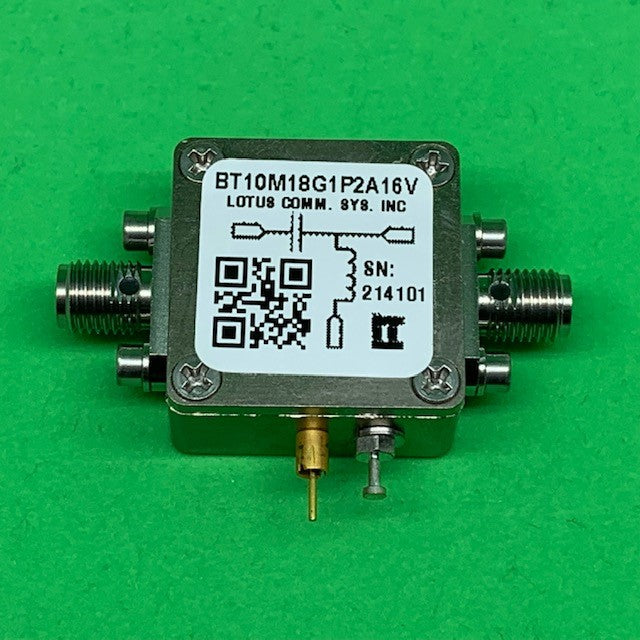

This Bias-Tee includes the RF Enclosure as shown in picture.

Click https://cdn.shopify.com/s/files/1/1592/7469/files/BT10M18G1P2A16V.pdf to see detailed specification.

Proudly MADE IN USA.
