BT10M18G1A50V

Bias Tee Broadband 10 MHz to 18 GHz (Max. 1A) 50V DC

2 items left

50Ω Broadband Bias Tee 10 MHz to 18 GHz (Model Num.: BT10M18G1A50V)
Features:

  • Broadband Performance 10 MHz to 18 GHz
  • Maximum DC current: 1A
  • Maximum DC Voltage: 50V
  • Use resonance-free conical inductor
  • High quality stainless steel SMA female connector
  • High quality Rogers RO4350 RF PCB (very low loss and high thermal performance)
  • Compact Size

Applications:

  • Biasing Amplifiers/RF circuits
  • Biasing Lasers
  • Modulators driven with high frequency data patterns

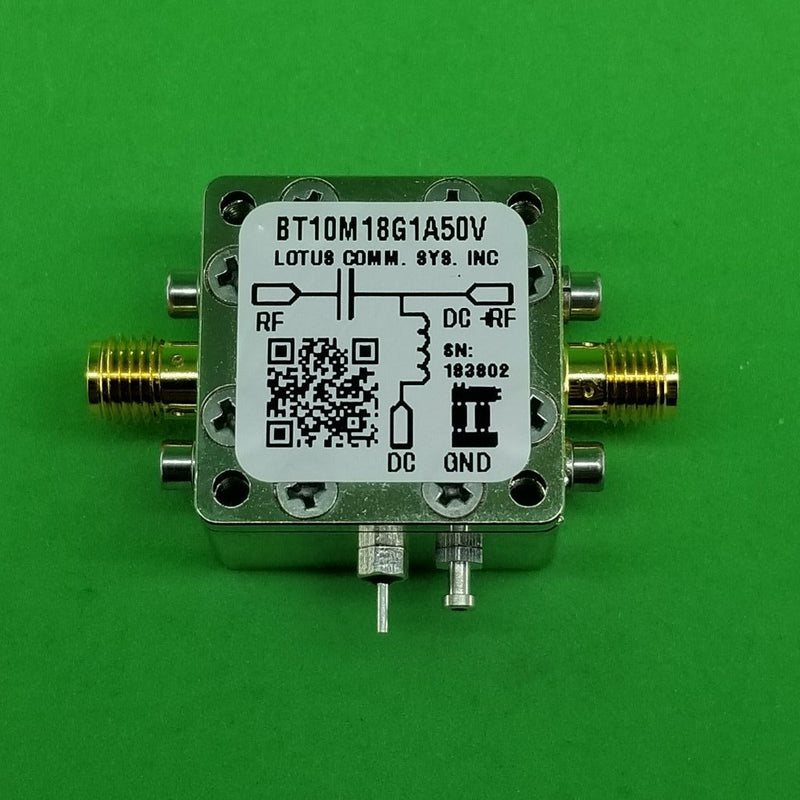

This Bias-Tee includes the RF Enclosure as shown in picture.

Click https://cdn.shopify.com/s/files/1/1592/7469/files/BT10M18G1A50V.pdf to see detailed specification.

Proudly Made in USA. SKU#: AK20_002S
