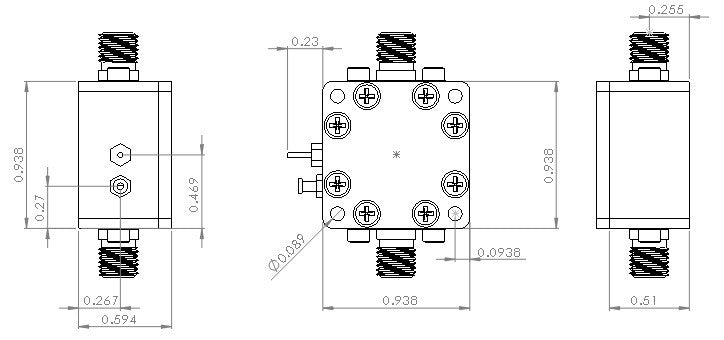

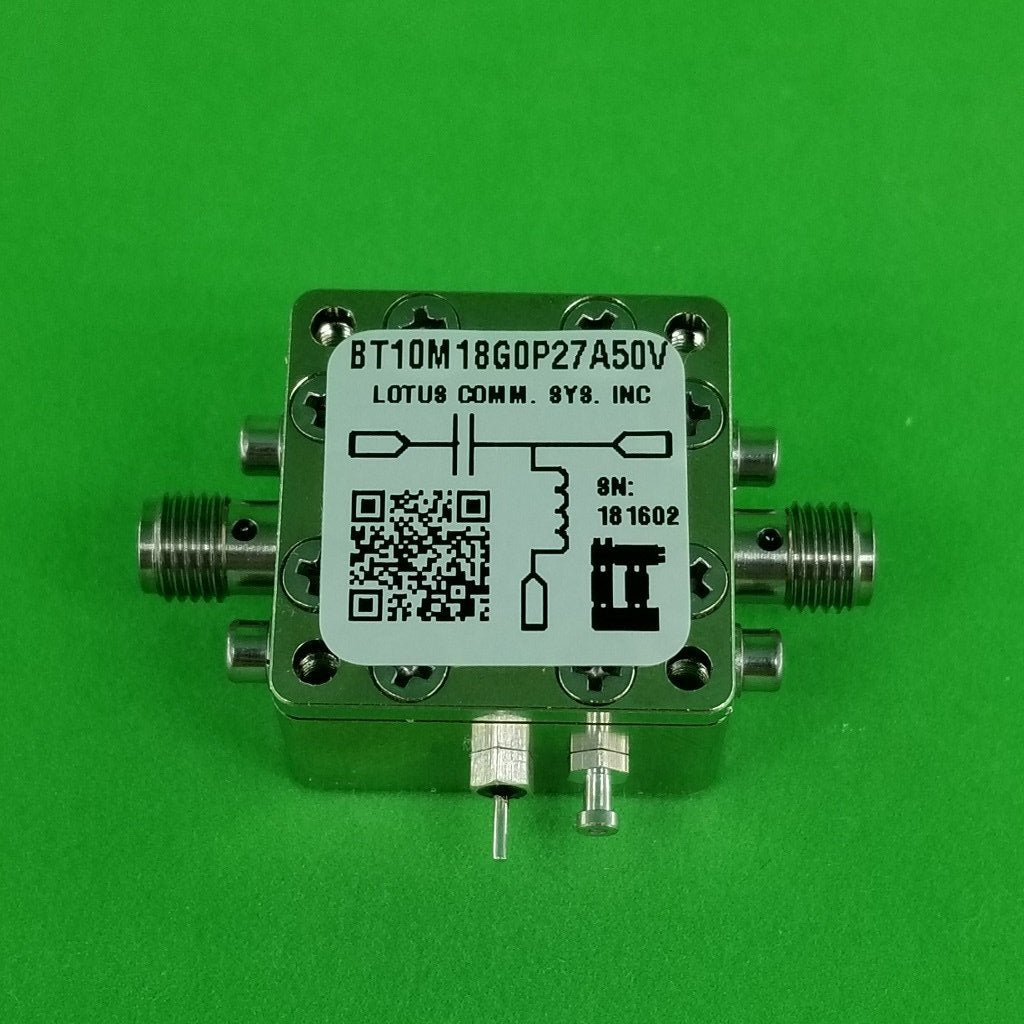

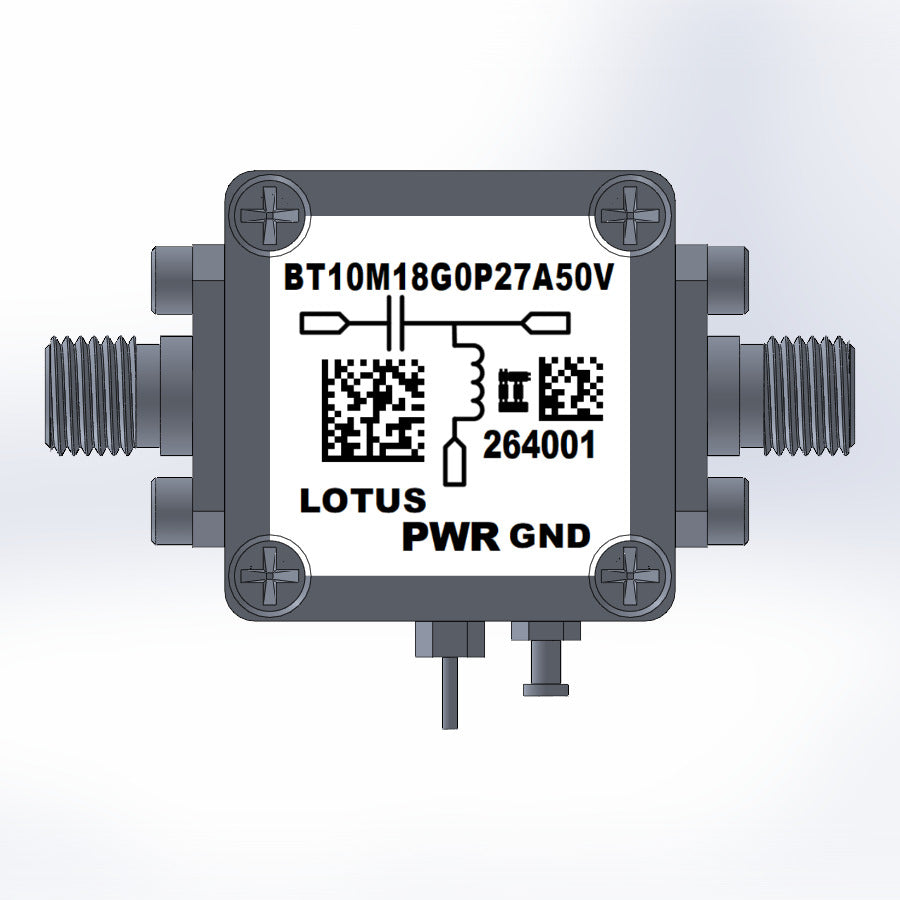

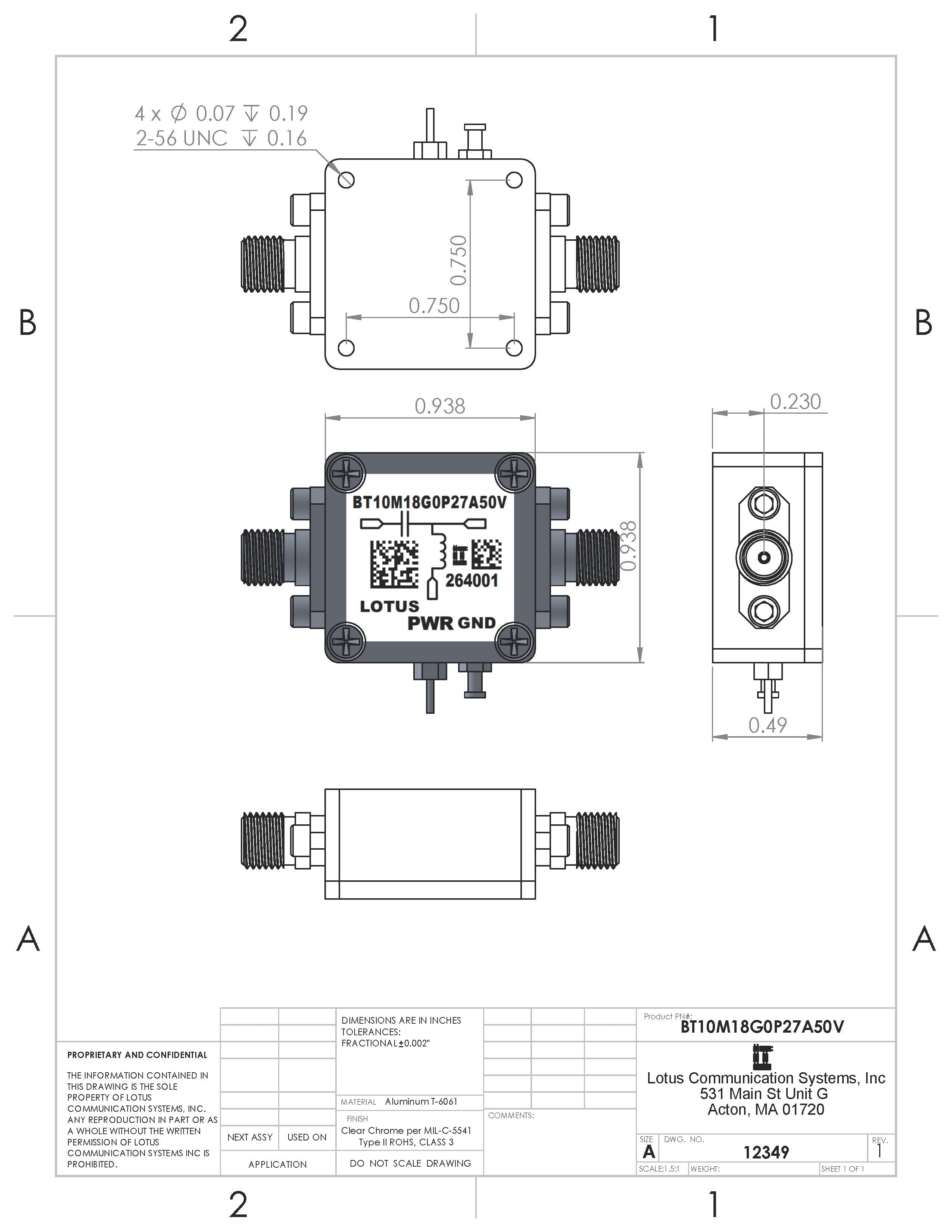

  • Bias Tee Broadband 10 MHz to 18 GHz (Max. 270mA) 50V DC

    PN#: BT10M18G0P27A50V is 50Ω Broadband Bias Tee 10 MHz to 18 GHz. It covers 10 MHz to 18 GHz and can handle maximum 270mA current and 50V DC.

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts. SKU#: AK20-002M.

    15 items left

    Features

    • Broadband Performance 10 MHz to 18 GHz
    • Use resonance-free conical inductor
    • High quality stainless steel SMA female connector
    • High quality RO4350 RF PCB (very low loss and high thermal performance)
    • Maximum Current: 270mA, Maximum DC Voltage: 50V
    • ROHS Compliant

    Applications

    • Biasing Amplifiers/RF circuits
    • Biasing Lasers
    • Modulators driven with high frequency data patterns
    • Test Instrumentation
    • SDR & Ham Radio

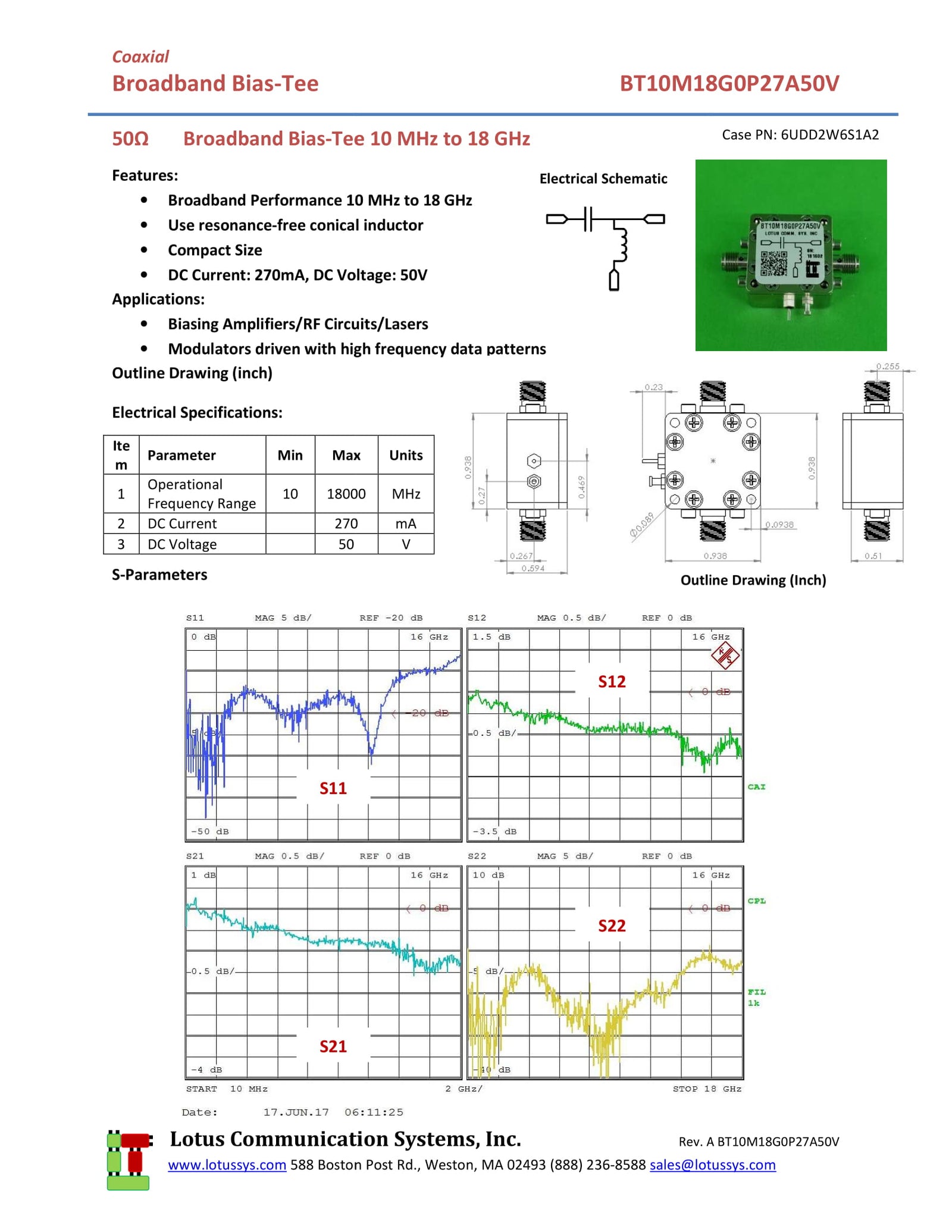

    Resources (PDF Datasheet)

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png BT10M18G0P27A50V Datasheet
