    Bias Tee Broadband 10 MHz to 15 GHz (Max. 7A 100V DC)
    Bias Tee Broadband 10 MHz to 15 GHz (Max. 7A 100V DC)
    Bias Tee Broadband 10 MHz to 15 GHz (Max. 7A 100V DC)
    Bias Tee Broadband 10 MHz to 15 GHz (Max. 7A 100V DC)
    Bias Tee Broadband 10 MHz to 15 GHz (Max. 7A 100V DC)

    Bias Tee Broadband 10 MHz to 15 GHz (Max. 7A 100V DC)

    $ 438.00 USD - $ 528.00 USD

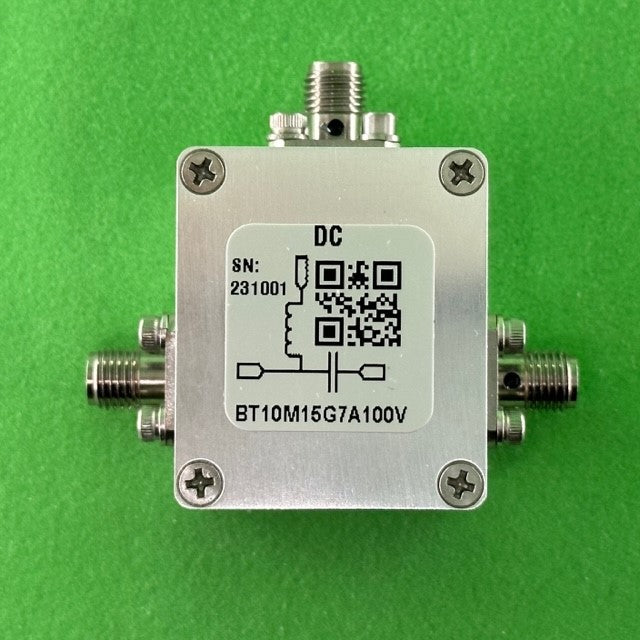

    Part Number: BT10M15G7A100V  is 50Ω Broadband Bias Tee with frequency range 10 MHz to 15 GHz. . It can handle maximum 7A current and 100V DC. SKU#: AK20-016H.

    Proudly Made in USA by Lotus Communication Systems, INC. in Weston, MA.

    EMI Shielding
    2 items left

    Features

    • Broadband Performance 10 MHz to 15 GHz
    • Use resonance-free conical inductor
    • High quality stainless steel SMA female connector
    • High quality RO4350 RF PCB (very low loss and high thermal performance)
    • Maximum Current: 7A, Maximum DC Voltage: 100V
    • ROHS Compliant

    Applications

    • Biasing Amplifiers/RF circuits
    • Biasing Lasers
    • Modulators driven with high frequency data patterns
    • Test Instrumentation
    • SDR & Ham Radio

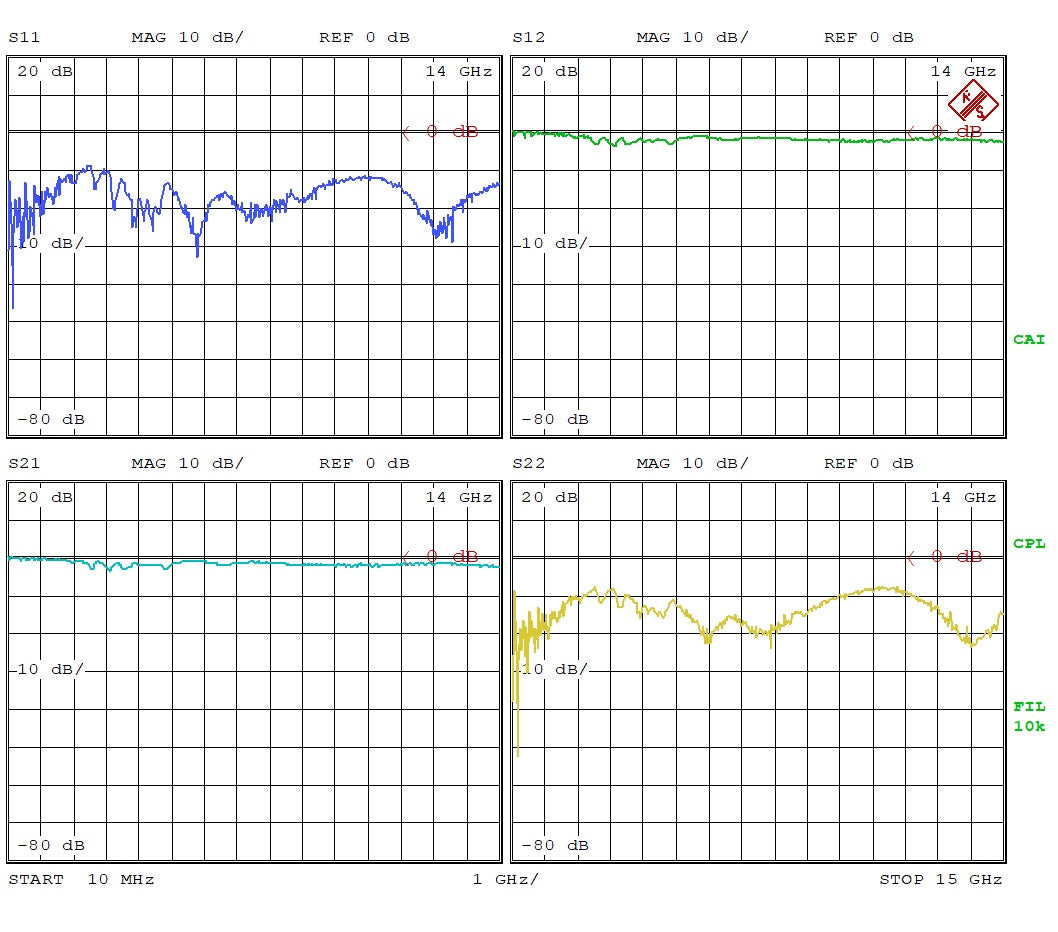

    Datasheet & S-Parameter

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png BT10M15G7A100V Datasheet
     S-Parameter (.S2P)
