GNSS/GPS/GLONASS/BeiDou Band Pass Filter 1100~1700MHz

97 items left

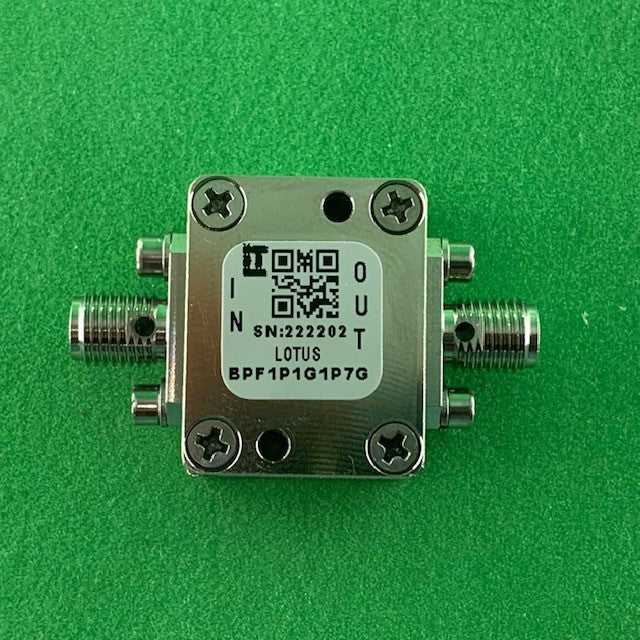

Part Number: BPF1P1G1P7G is GNSS/GPS/GLONASS/BeiDou Band Pass Filter with pass band from 1125~1675MHz.  It has <2.0dB Insertion loss in the pass band.

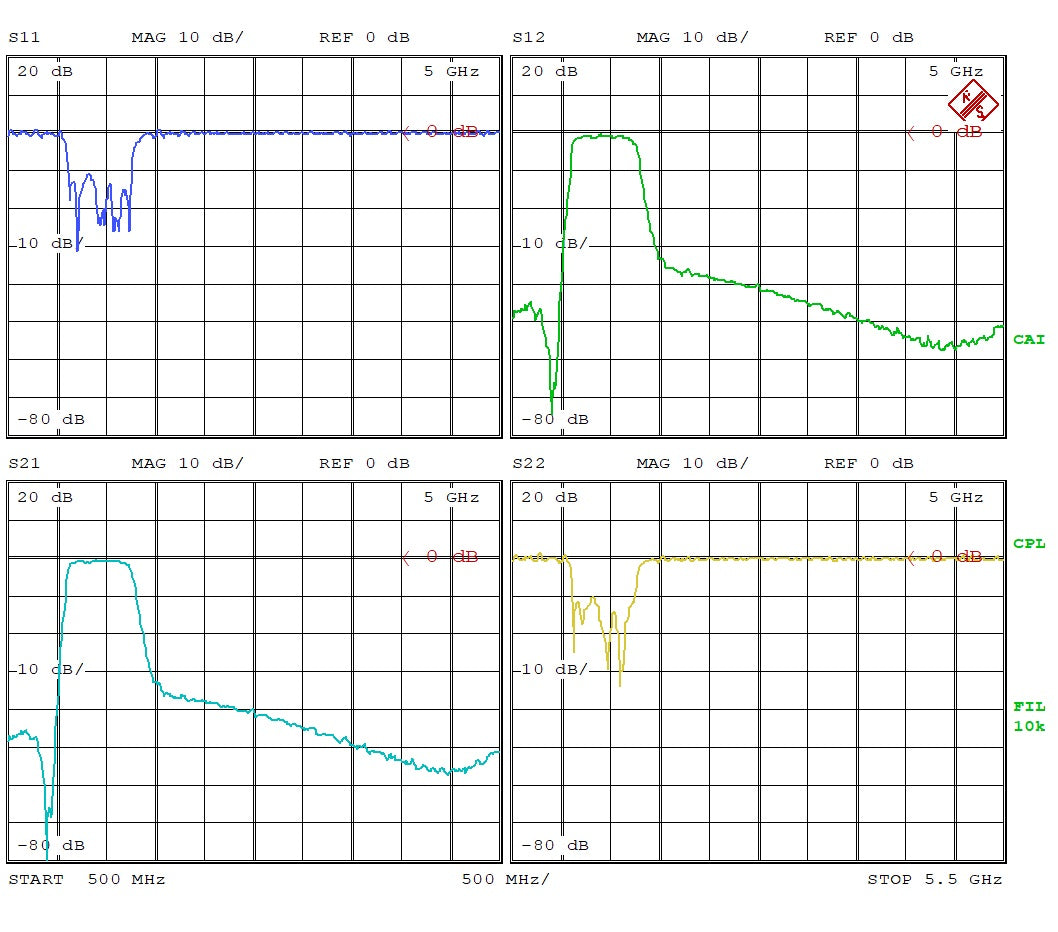

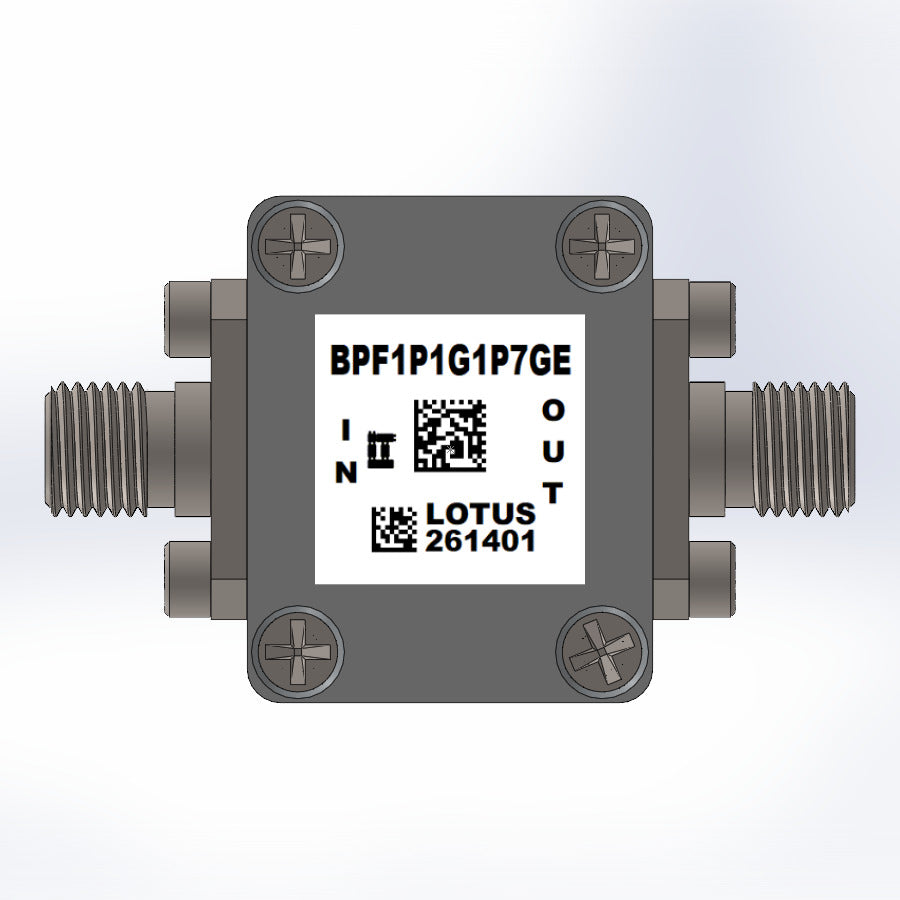

Enclosure is using RF Design Kitwith dimension 0.9375"x0.75x0.48". S-Parameter of the Part measured on VNA is shown. SKU#: QT16-001L.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (


  • Operational Temperature: -45 ~ 85C
  • Temperature Stable
  • Frequency Range: 1125~1675MHz
  • Insertion Loss < 2.0dB in passband
  • High Quality Stainless Steel SMA Female Connector


  • Rejection out band signals -- LTE, UHF, other ISM band
  • Harmonic Rejection
  • Navigation Transmitters / Receivers
  • Test Instrumentation

Resources (PDF Datasheet)
