  • RF Prototype Base Plate (220mmx160mm)

    Gold Plated (ENIG) Prototyping Base Plate

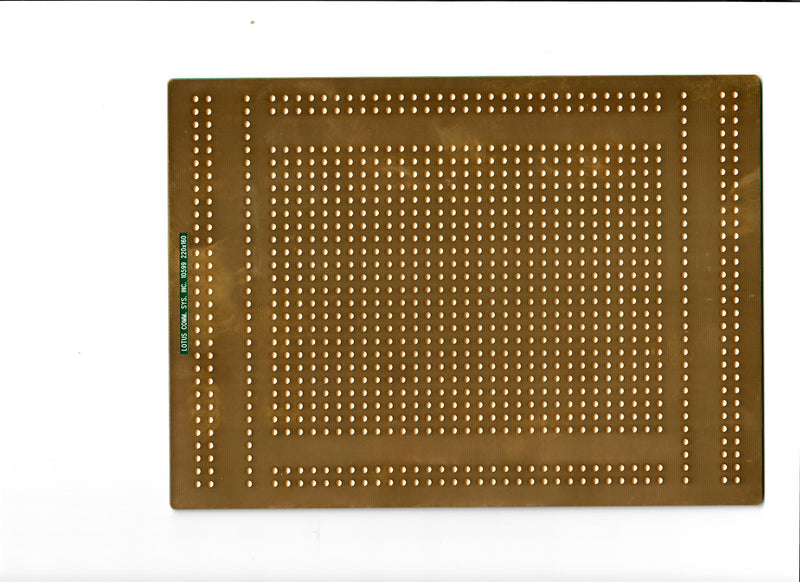

    The prototyping Base Plate (BP) has 3/16” Uniform (Square) hole spacing and can be used to mount and align Lotus RF modules.  The size of the Base Plate is standard 3U Size with Length(220mm)xWidth(160mm). SKU#: BP6U220X160.

    The Base Plate is made by 1/16” Aluminum PCB.  One side (where you will mount the RF modules) of PCB is plated with Electroless Nickel Immersion Gold (ENIG) for superior electrical conductivity.

    Lotus RF enclosure modules can be mounted using #2-56 Socket Head Cap Screw and Nuts.  A designer can quickly assembly a prototype RF system using this Base Plate.

    In addition to quick prototyping, this RF base plate can be mounted to 3U enclosure or Chassis for system integration.  For example, this base plate can be mounted to Hammond Extruded Aluminum Enclosure that can fit 220mmX160mm  size PCB.

    • 1/16” Aluminum PCB with Electroless Nickel Immersion Gold (ENIG) on one side
    • Length(220mm) x Width(160mm) fit in Enclosure or Chassis


    • Test Instrumentation
    • System Integration
    • Prototyping
    • General Purpose Wireless
    • SDR & Ham Radio

    Click https://cdn.shopify.com/s/files/1/1592/7469/files/BP6U220X160.pdf to see detailed specification.
