  • Attenuator (Precision Chip) 100mW 6dB Attenuation (0~10 GHz)

    ATT10G6D0P1W Precision Chip RF Attenuator - 6dB Attenuation.

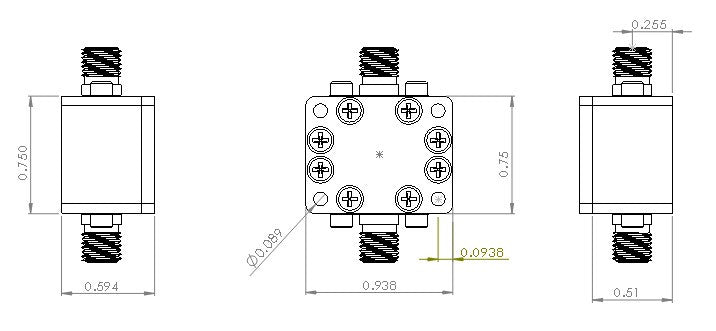

    Enclosure dimension is 0.9375"x0.75x0.59".

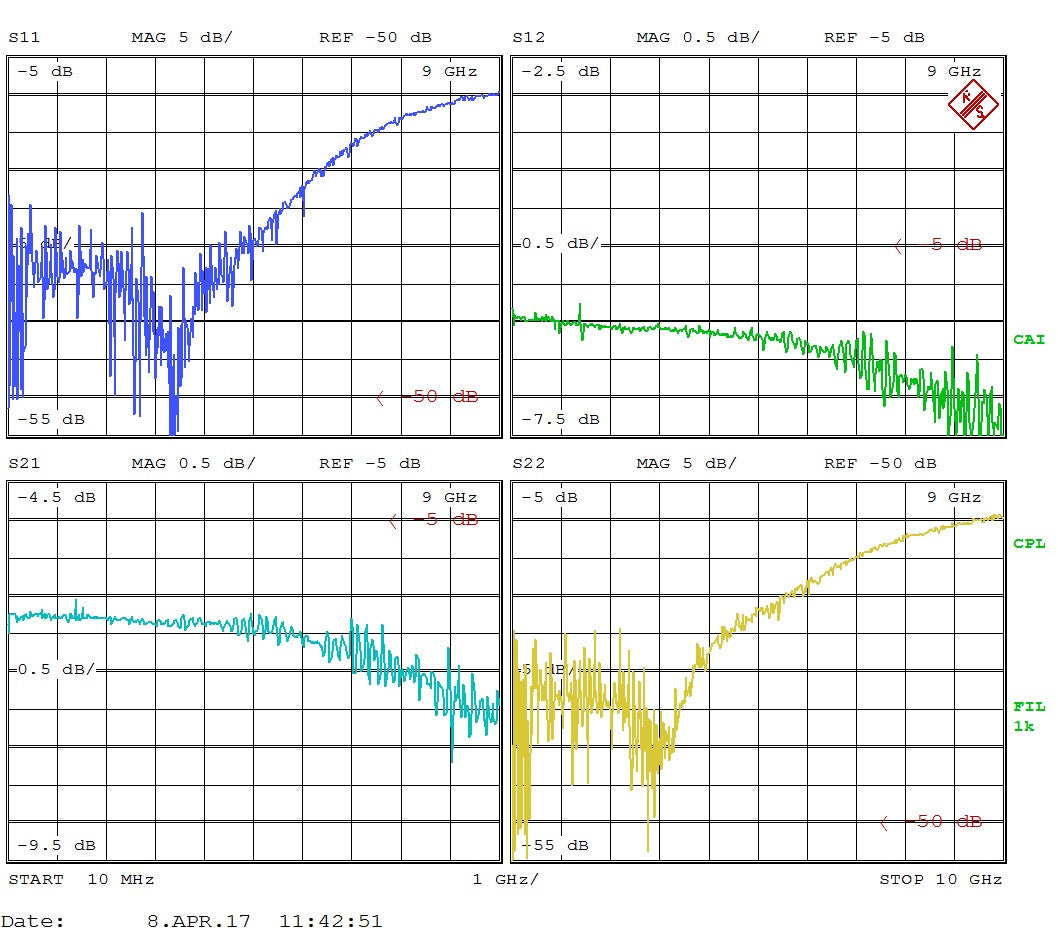

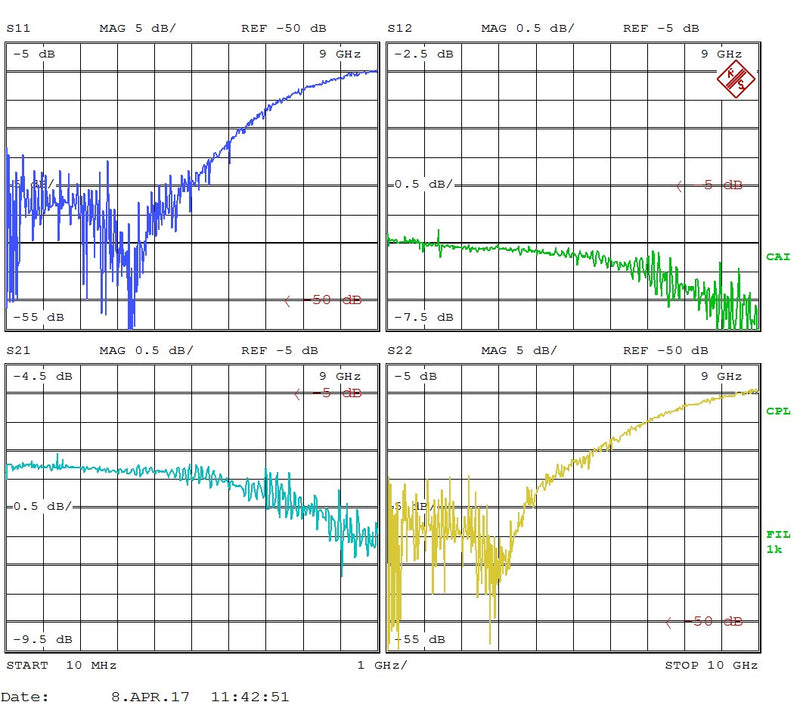

    S-Parameter of the Part measured on VNA (from DC to 10 GHz) is shown in third picture.

    • Operating Temperature: -55 ~ +125C
    • Operating Freq. Range: DC to 10 GHz
    • RF Power Input: 100mW CW
    • Attenuation Accuracy at 25C: +/-0.5 dB
    • High Quality Stainless Steel SMA Female Connector


    • Microwave Radio
    • Ham Radio
    • Transmitters/Receivers/SDR
    • Test Instrumentation

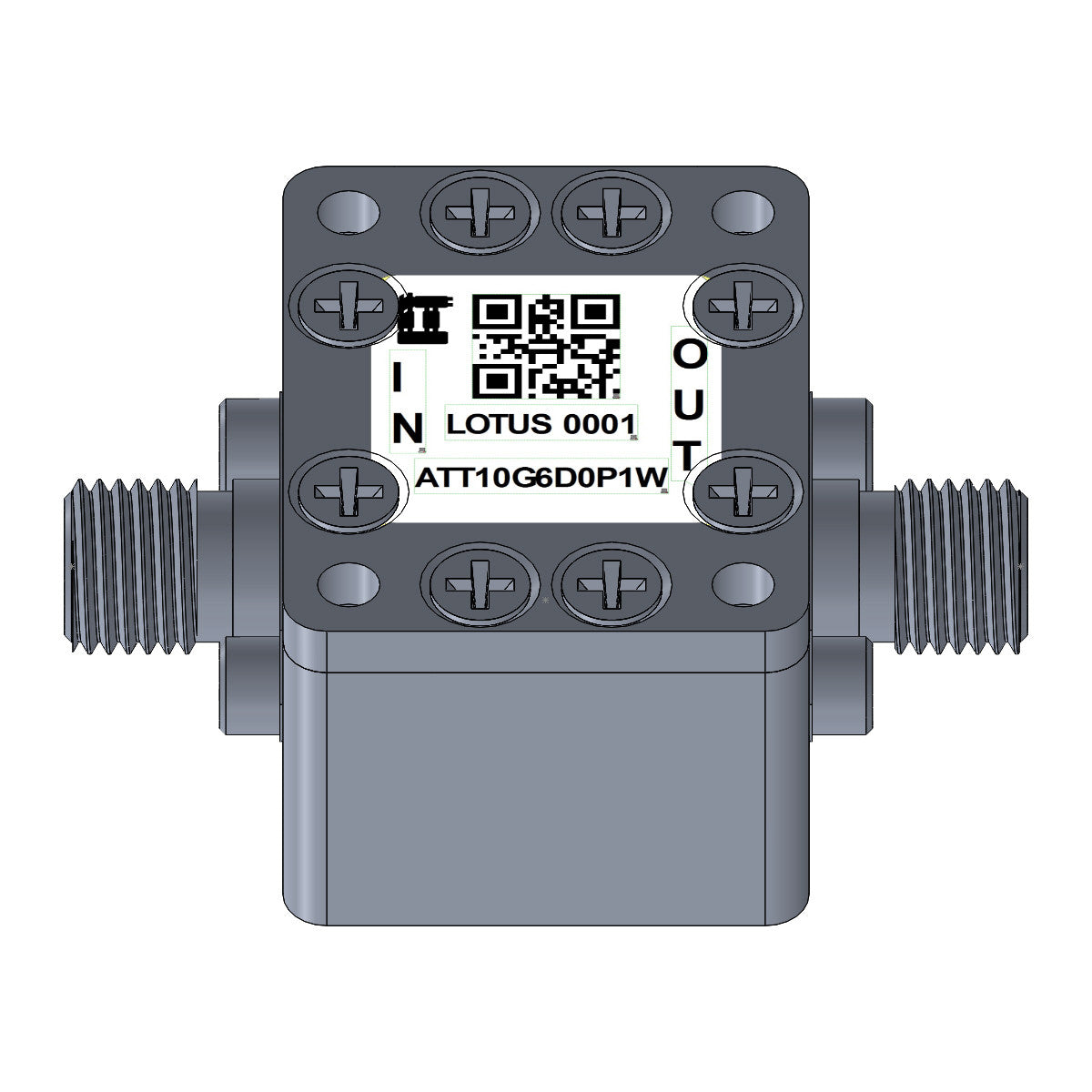

    This Attenuator Module includes the RF Enclosure as shown in picture.

    Click https://cdn.shopify.com/s/files/1/1592/7469/files/ATT10G6D0P1W.pdf to see detailed specification.

    Proudly MADE IN USA.
