Part Number: ATT8G7D0P5W Precision RF Attenuator - 7dB Attenuation.
Enclosure dimension is 0.9375"x0.75x0.48".

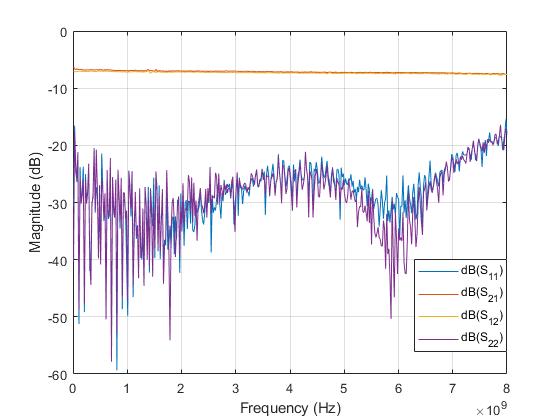

S-Parameter of the Part measured on VNA (from DC to 8 GHz) is shown.
- Operating Temperature: -45 ~ +85°C
- Operating Freq. Range: DC to 8 GHz
- RF Power Input: 0.5 Watt CW
- Attenuation Accuracy: +/-0.25 dB
- High Quality Stainless Steel SMA Female Connector
- Microwave Radio
- Ham Radio
- Test Instrumentation

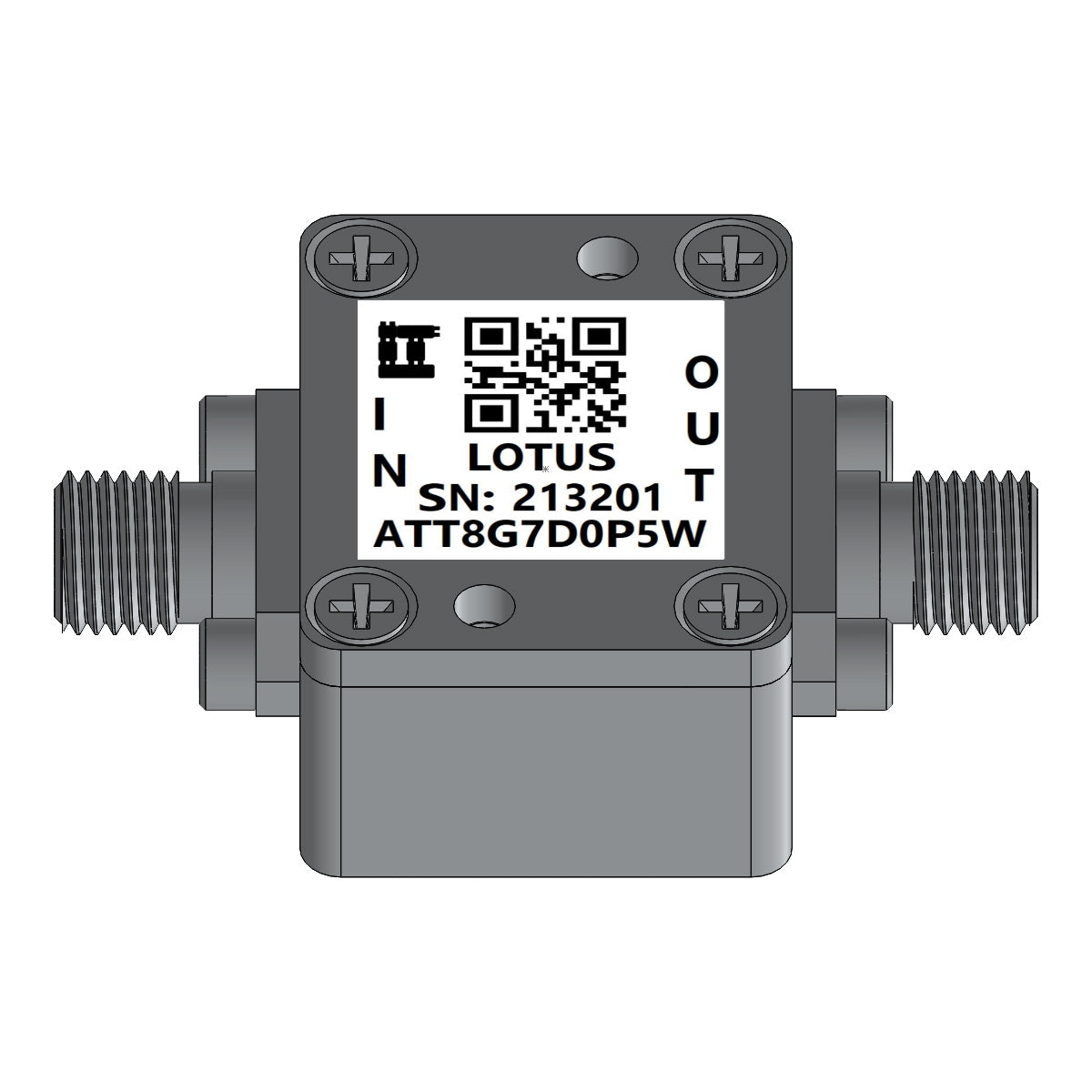

This Attenuator Module includes the RF Enclosure as shown in picture.
Click https://cdn.shopify.com/s/files/1/1592/7469/files/ATT8G7D0P5W.pdf to see detailed specification.
Proudly MADE IN USA.
