Attenuator 5dB Attenuation (0~8 GHz) 0.5 Watts

Part Number: ATT8G5D0P5W Precision RF Attenuator - 5dB Attenuation.

Enclosure dimension is 0.9375"x0.75x0.48".

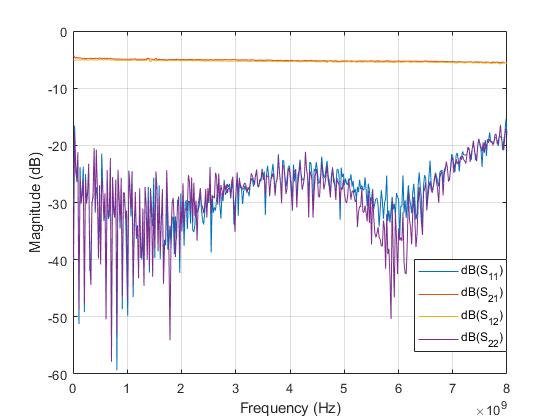

S-Parameter of the Part measured on VNA (from DC to 8 GHz) is shown.

  • Operating Temperature: -45 ~ +85°C
  • Operating Freq. Range: DC to 8 GHz
  • RF Power Input:  0.5 Watt CW
  • Attenuation Accuracy: +/-0.25 dB
  • High Quality Stainless Steel SMA Female Connector


  • Microwave Radio
  • Ham Radio
  • Transmitters/Receivers/SDR
  • Test Instrumentation

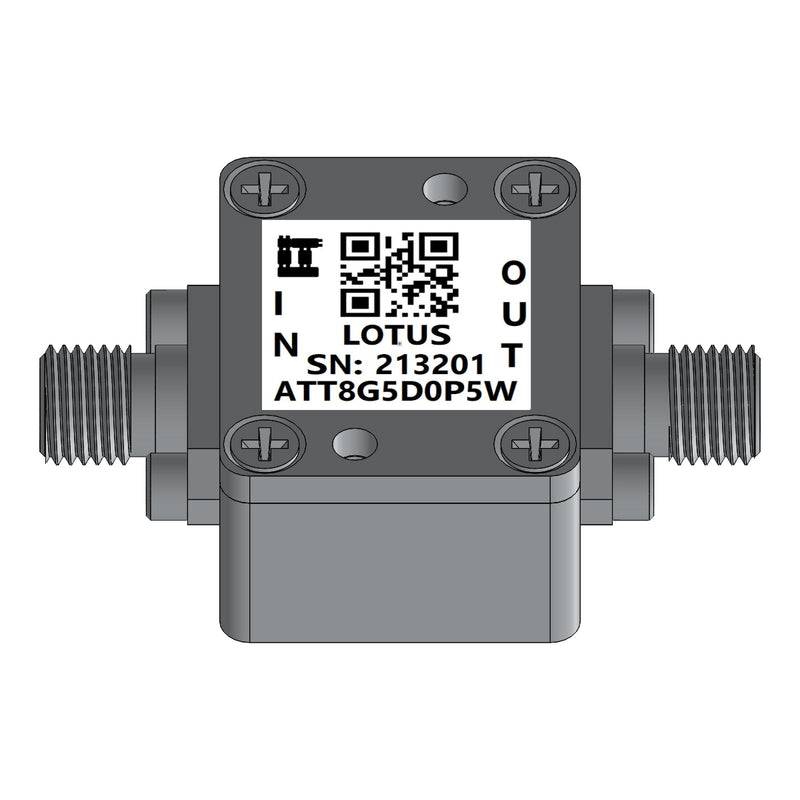

This Attenuator Module includes the RF Enclosure as shown in picture.

Click to see detailed specification.

Proudly MADE IN USA.
