  • Attenuator 1dB Attenuation (0~8 GHz) 0.5 Watts

    Part Number: ATT8G1D0P5W Precision RF Attenuator - 1dB Attenuation.

    Enclosure dimension is 0.9375"x0.75x0.48".

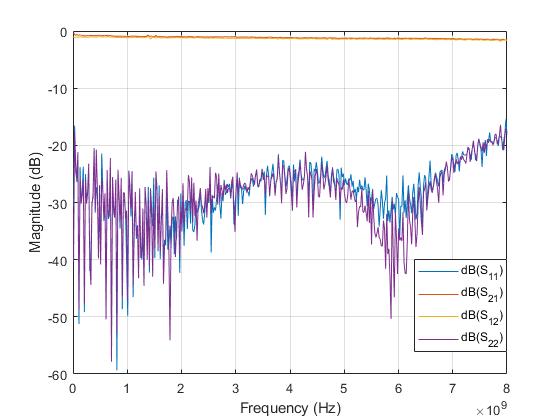

    S-Parameter of the Part measured on VNA (from DC to 8 GHz) is shown.

    • Operating Temperature: -45 ~ +85°C
    • Operating Freq. Range: DC to 8 GHz
    • RF Power Input:  0.5 Watt CW
    • Attenuation Accuracy: +/-0.25 dB
    • High Quality Stainless Steel SMA Female Connector

    Applications

    • Microwave Radio
    • Ham Radio
    • Transmitters/Receivers/SDR
    • Test Instrumentation

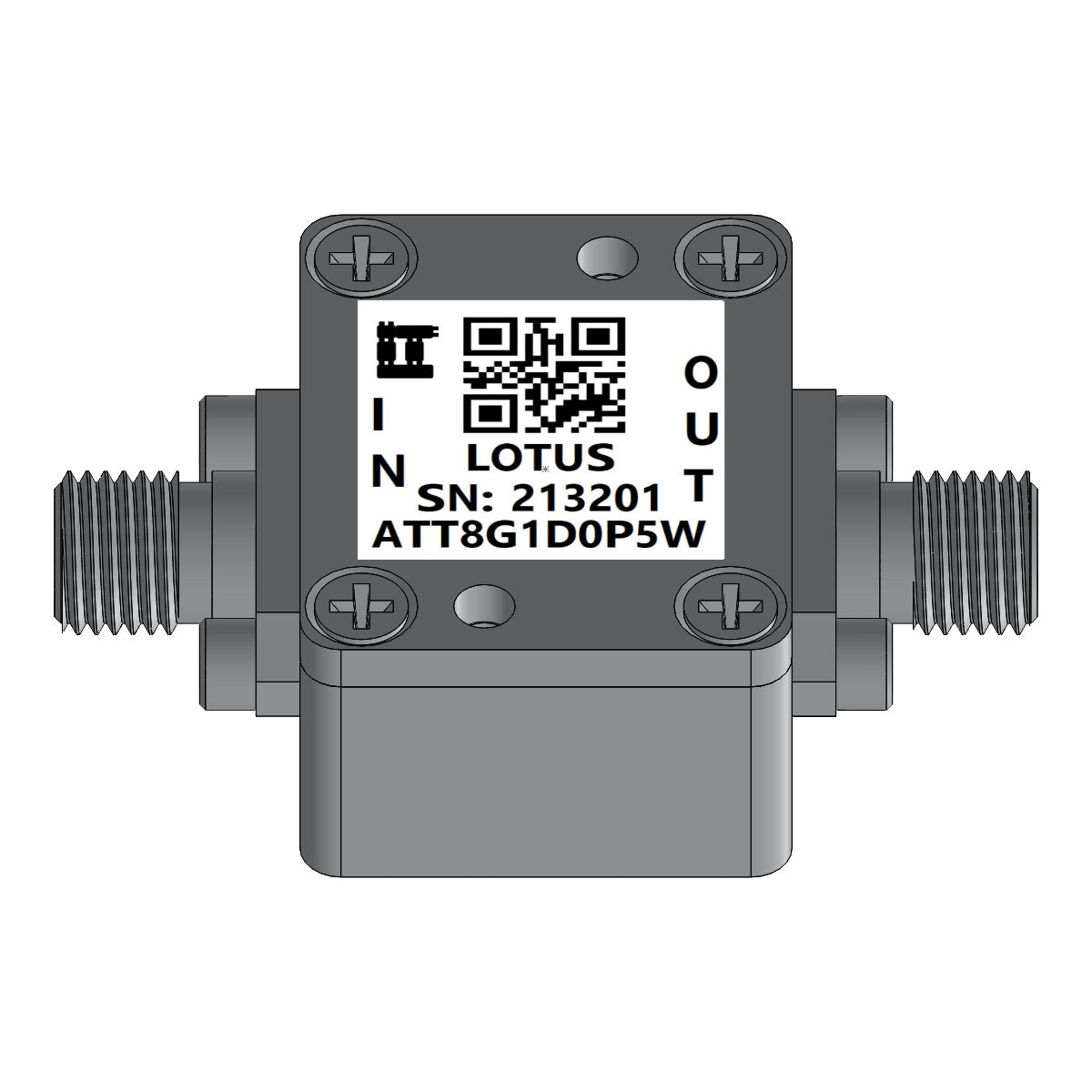

    This Attenuator Module includes the RF Enclosure as shown in picture.

    Click https://cdn.shopify.com/s/files/1/1592/7469/files/ATT8G1D0P5W.pdf  to see detailed specification.

    Proudly MADE IN USA.
