Attenuator (Precision Chip) 1 Watt 9dB Attenuation (0~6 GHz)

Part Number: ATT6G9D1W Precision Chip RF Attenuator - 9dB Attenuation.

Enclosure dimension is 0.9375"x0.75x0.48".

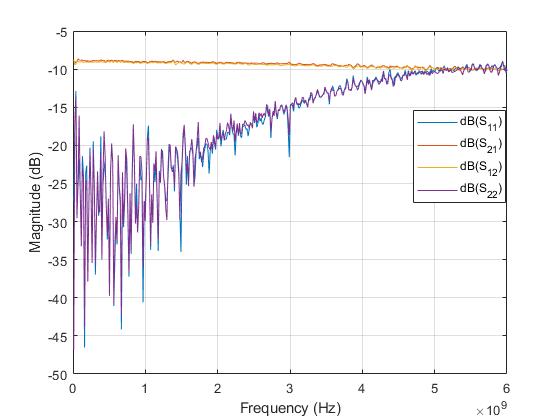

S-Parameter of the Part measured on VNA (from DC to 6 GHz) is shown.

  • Operating Temperature: -55 ~ +125C
  • Operating Freq. Range: DC to 6 GHz
  • RF Power Input: 1 Watt CW
  • Attenuation Accuracy: +/-0.3 dB
  • High Quality Stainless Steel SMA Female Connector


  • Microwave Radio
  • Ham Radio
  • Transmitters/Receivers/SDR
  • Test Instrumentation

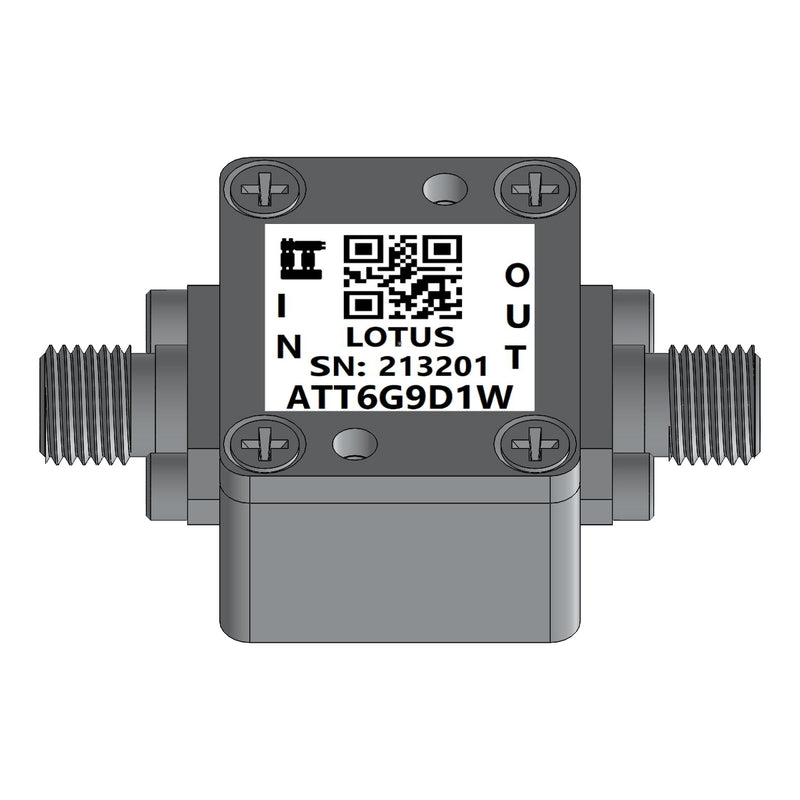

This Attenuator Module includes the RF Enclosure as shown in picture.

Click see detailed specification.

Proudly MADE IN USA.
