Part Number: ATT6G2D1W Precision Chip RF Attenuator - 2dB Attenuation.
Enclosure dimension is 0.9375"x0.75x0.48".
S-Parameter of the Part measured on VNA (from DC to 6 GHz) is shown.
- Operating Temperature: -55 ~ +125C
- Operating Freq. Range: DC to 6 GHz
- RF Power Input: 1 Watt CW
- Attenuation Accuracy at 25C: +/-0.3 dB
- High Quality Stainless Steel SMA Female Connector
- Microwave Radio
- Ham Radio
- Test Instrumentation

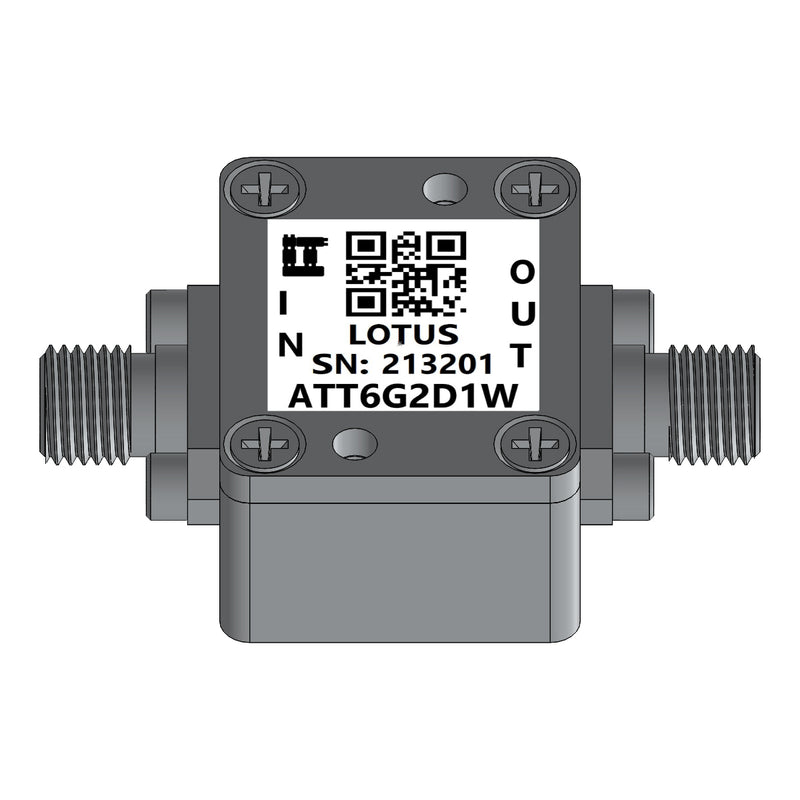

This Attenuator Module includes the RF Enclosure as shown in picture.
Click https://cdn.shopify.com/s/files/1/1592/7469/files/ATT6G2D1W.pdfto see detailed specification.
Proudly MADE IN USA.
