  • Attenuator (Precision Chip) 2dB Attenuation (0~12.4 GHz) 2 Watts

    Part Number: ATT12P4G2D2W Precision Chip RF Attenuator - 2dB Attenuation.

    Enclosure dimension is 0.9375"x0.75x0.48".

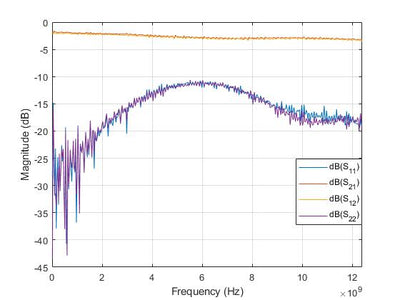

    S-Parameter of the Part measured on VNA (from DC to 12.4 GHz) is shown.

    • Operating Temperature: -55 ~ +125°C
    • Operating Freq. Range: DC to 12.4 GHz
    • RF Power Input: 2 Watt CW
    • Attenuation Accuracy: +/-0.3 dB
    • High Quality Stainless Steel SMA Female Connector

    Applications

    • Microwave Radio
    • Ham Radio
    • Transmitters/Receivers/SDR
    • Test Instrumentation

    This Attenuator Module includes the RF Enclosure as shown in picture.

    Click https://cdn.shopify.com/s/files/1/1592/7469/files/ATT12P4G2D2W.pdf to see detailed specification.

    Proudly MADE IN USA.
