Attenuator (Precision Chip) 15dB Attenuation (0~12.4 GHz) 2 Watts

Attenuator (Precision Chip) 15dB Attenuation (0~12.4 GHz) 2 Watts

Attenuator (Precision Chip) 15dB Attenuation (0~12.4 GHz) 2 Watts

Attenuator (Precision Chip) 15dB Attenuation (0~12.4 GHz) 2 Watts

$ 79.00 USD

Part Number: ATT12P4G15D2W Precision Chip RF Attenuator - 15dB Attenuation.

Enclosure dimension is 0.9375"x0.75x0.48".

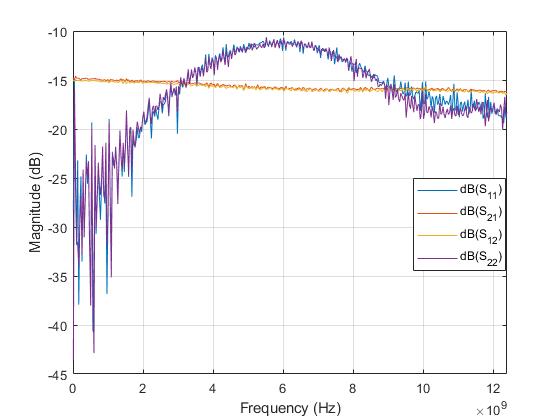

S-Parameter of the Part measured on VNA (from DC to 12.4 GHz) is shown.

Operating Temperature: -55 ~ +125°C
Operating Freq. Range: DC to 12.4 GHz
RF Power Input: 2 Watts CW
Attenuation Accuracy: +/-0.3 dB
High Quality Stainless Steel SMA Female Connector

Applications

Microwave Radio
Ham Radio
Transmitters/Receivers/SDR
Test Instrumentation

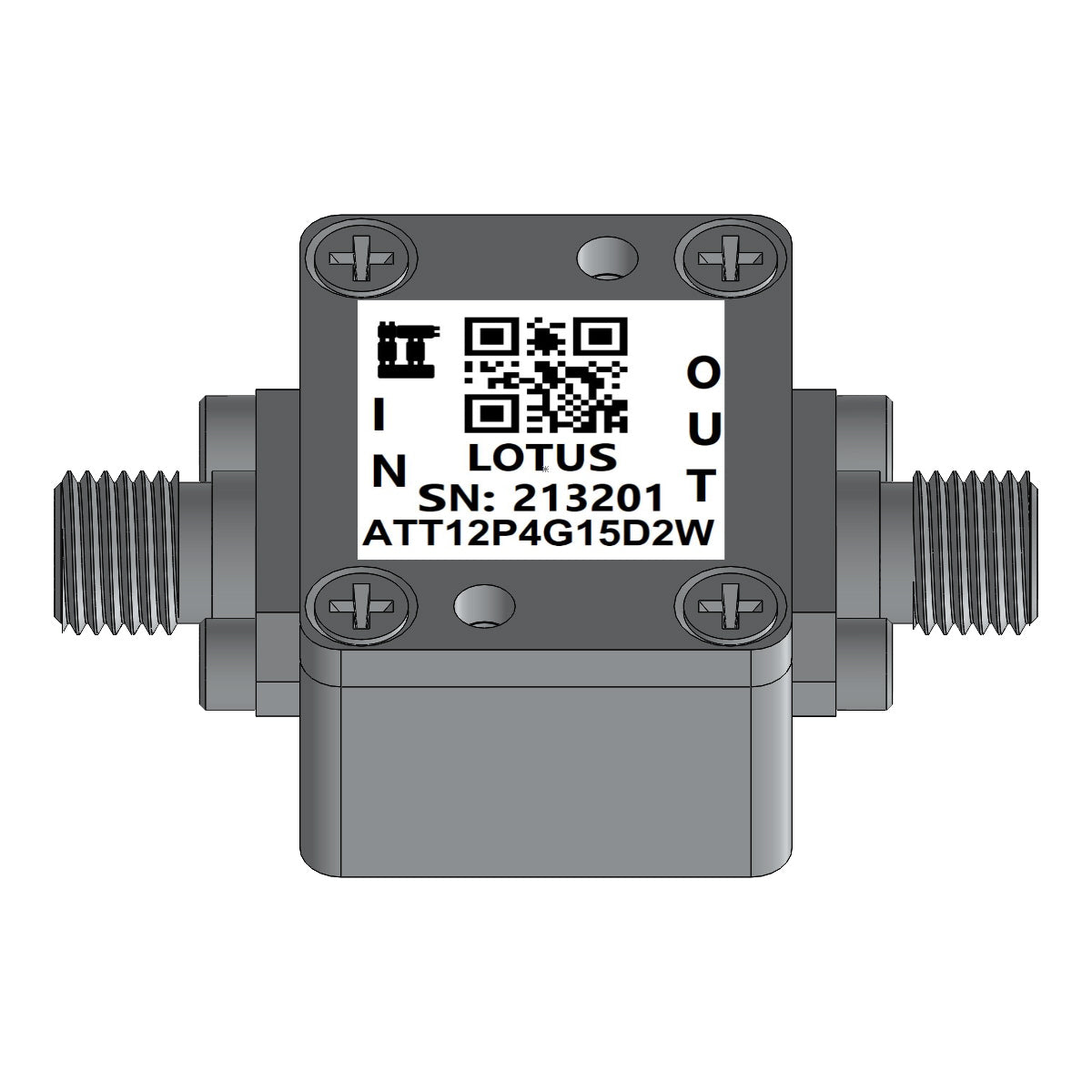

This Attenuator Module includes the RF Enclosure as shown in picture.

Click https://cdn.shopify.com/s/files/1/1592/7469/files/ATT12P4G15D2W.pdf to see detailed specification.

Proudly MADE IN USA.

Collections: Fixed Attenuator
