Part Number: ATT12P4G11D2W Precision Chip RF Attenuator - 11dB Attenuation.
Enclosure dimension is 0.9375"x0.75x0.48".

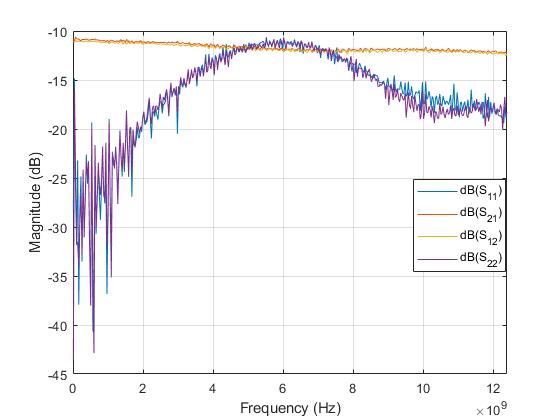

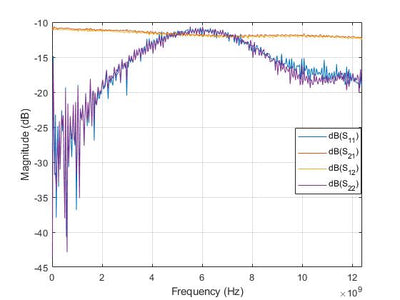

S-Parameter of the Part measured on VNA (from DC to 12.4 GHz) is shown.
- Operating Temperature: -55 ~ +125°C
- Operating Freq. Range: DC to 12.4 GHz
- RF Power Input: 2 Watts CW
- Attenuation Accuracy: +/-0.3 dB
- High Quality Stainless Steel SMA Female Connector
- Microwave Radio
- Ham Radio
- Test Instrumentation

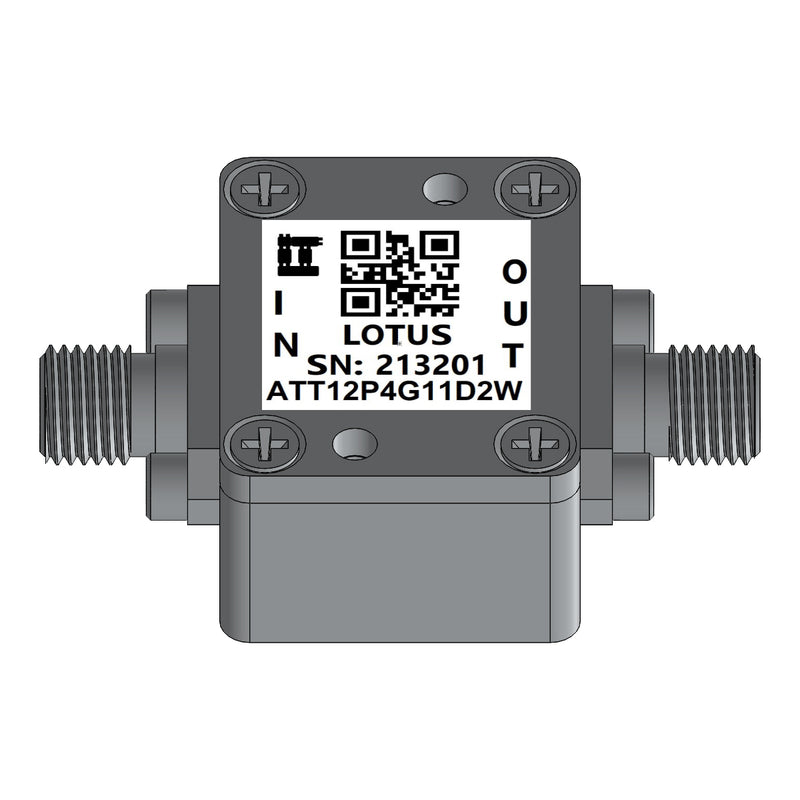

This Attenuator Module includes the RF Enclosure as shown in picture.
Click https://cdn.shopify.com/s/files/1/1592/7469/files/ATT12P4G11D2W.pdf to see detailed specification.
Proudly MADE IN USA.
