  • 1 Channel 32 dB Programmable Attenuator (USB Stick), 0.5 dB Step, DC - 13 GHz

    Part Number: A1HDC13G32 is a general purpose, single channel programmable attenuator suitable for wide range of signal level control applications from DC to 13 GHz.  The Attenuator provides 0 to 31.75 dB attenuation in 0.25 dB steps.

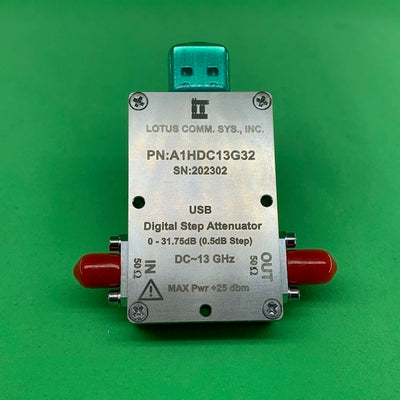

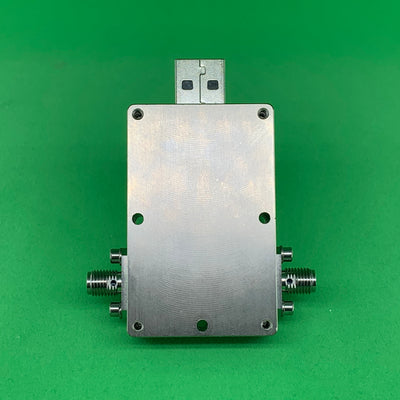

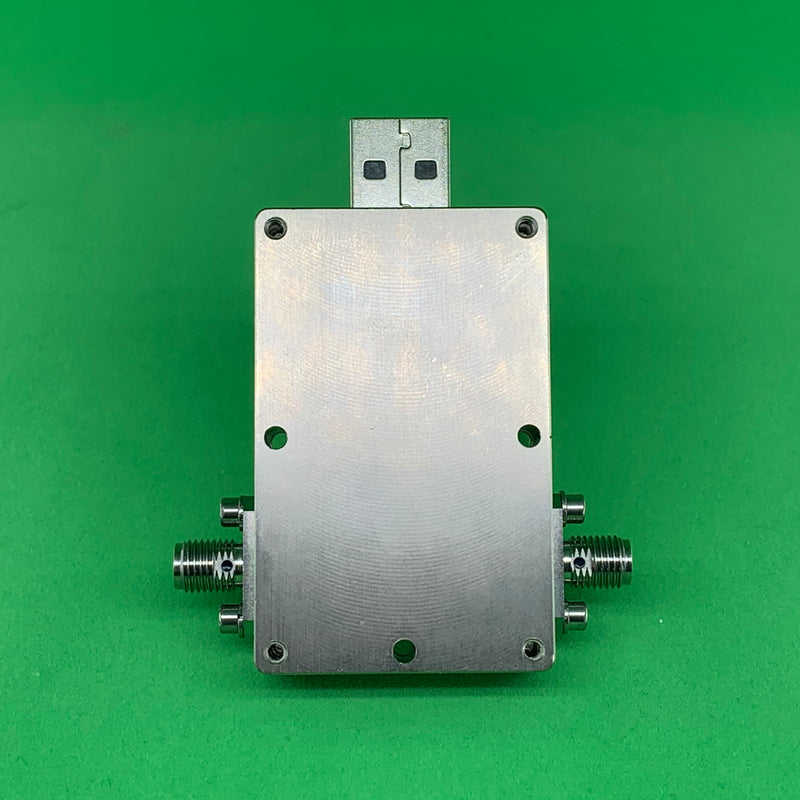

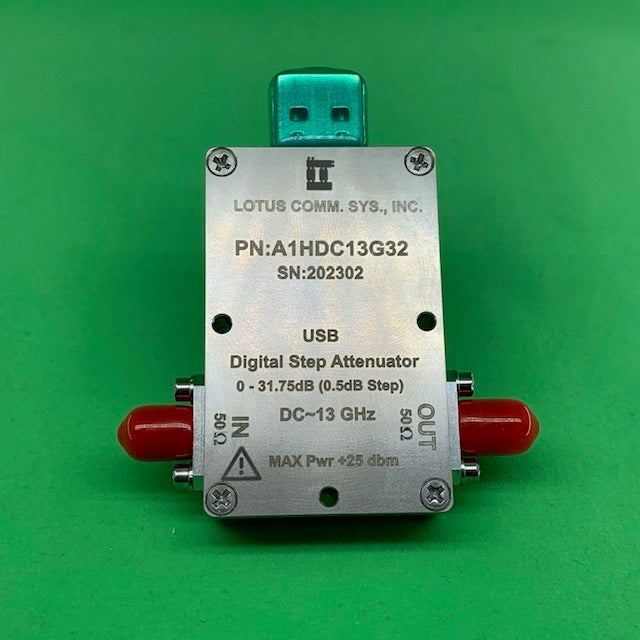

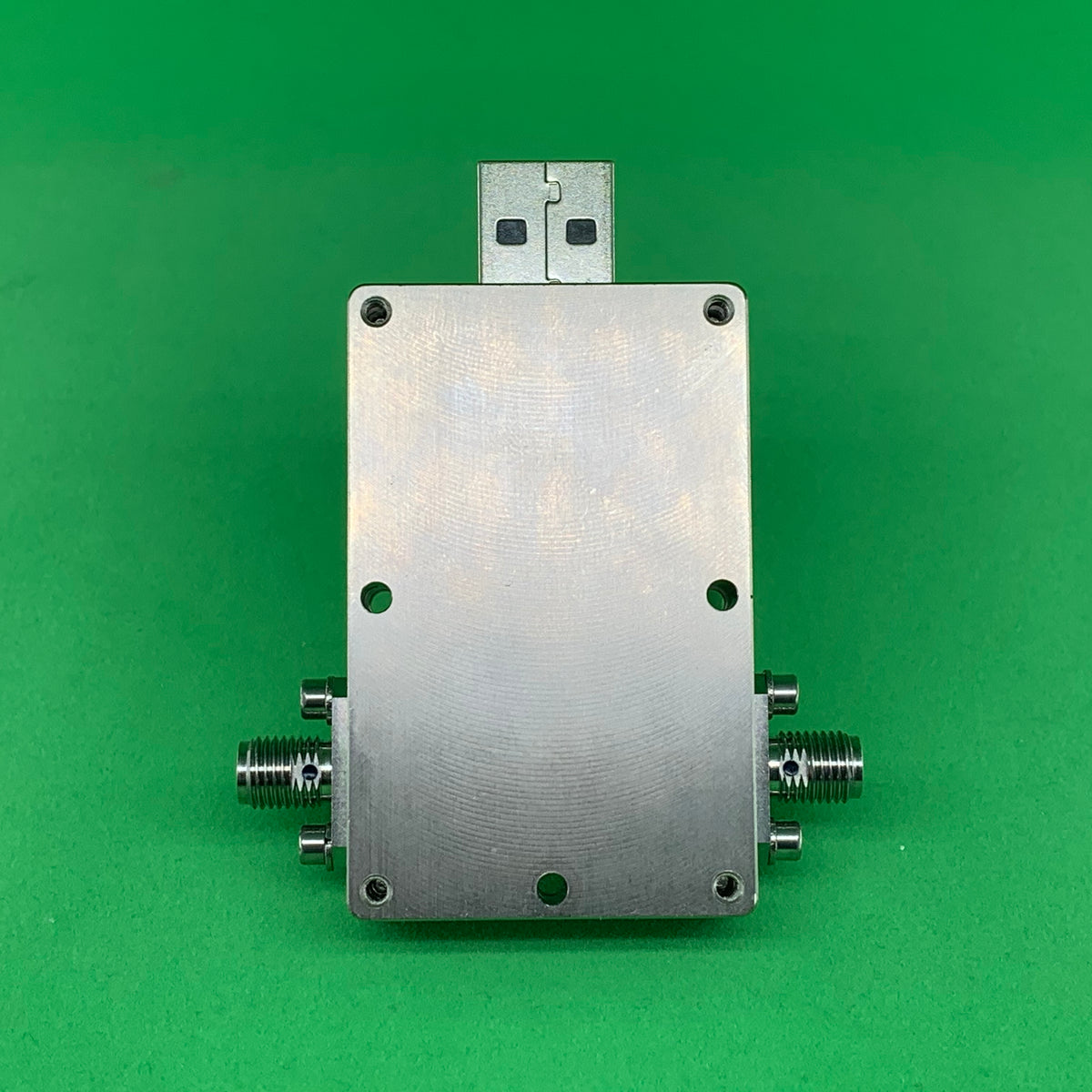

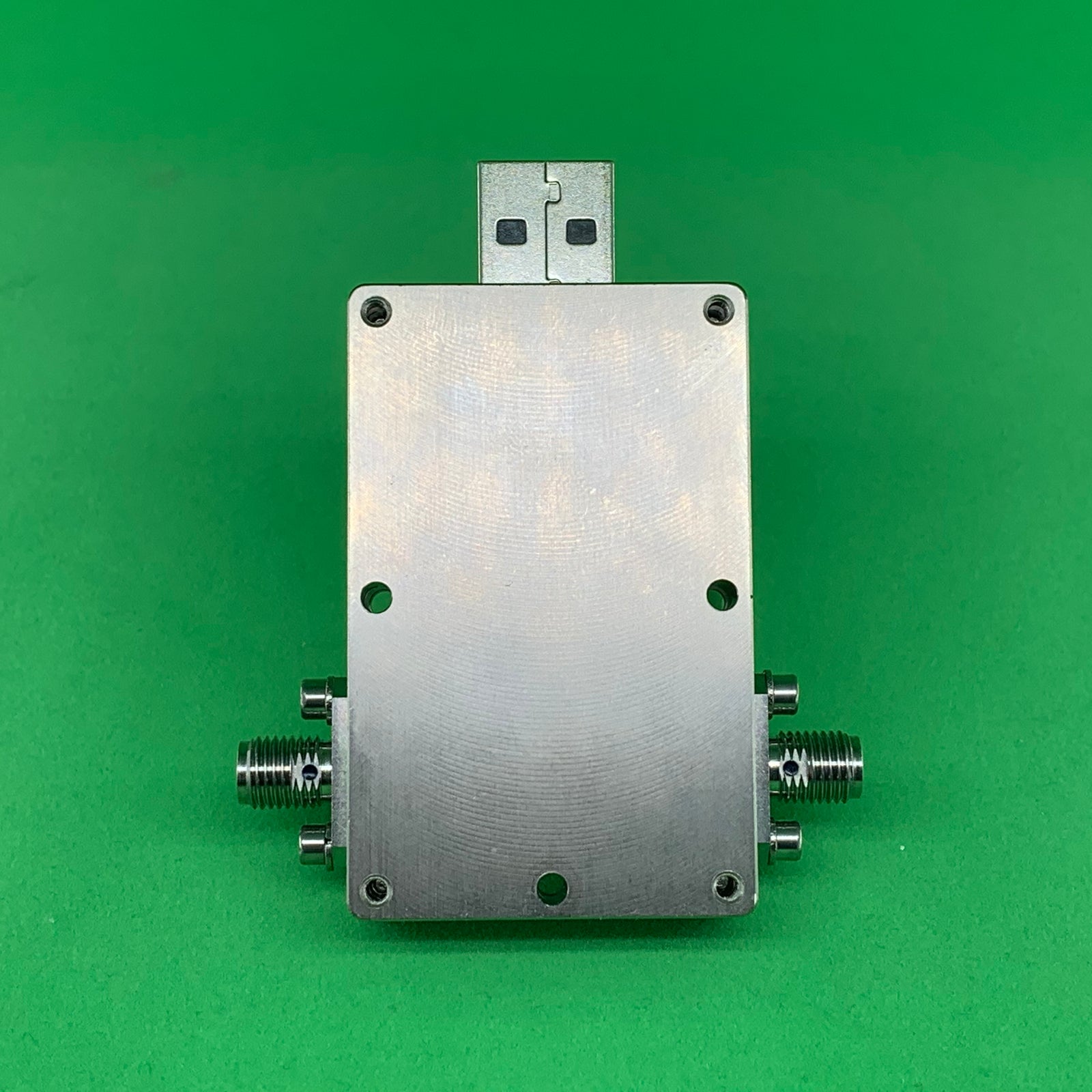

    The Attenuator is housed in an ultra-compact and rugged enclosure with two SMA Female connectors.  The attenuator can be controlled via USB. Full software supported with our user-friendly GUI application for Windows and Linux.

    It uses USB Type A connector for connection.  Control Software is included in USB Stick. SKU#: AK20-005K.

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts


    • Frequency Range: DC to 13 GHz
    • Wide Attenuation Range: 31.75 dB
    • Fine Attenuation Resolution: 0.5 dB
    • Short Attenuation Transition Time (500 ns)
    • Stainless Steel SMA Female Connector
    • High Quality Rogers RO4350 RF PCB
    • Electroless Nickel Plating and Permanent Laser Marking
    • USB Control
    • ROHS Compliant


    • Test Instrumentation
    • Automated Test Equipment
    • General Purpose Wireless
    • Radar & VSAT
    • SDR & Ham Radio

    Resources (Datasheet)

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.pngA1HDC13G32 Datasheet

    Windows/Linux GUI Control SW

    Self-Executable GUI SW Download
