Low Pass Filter (LTCC Construction) Pass Band DC-2850MHz

Low Pass Filter (LTCC Construction) Pass Band DC-2850MHz

Low Pass Filter (LTCC Construction) Pass Band DC-2850MHz

Low Pass Filter (LTCC Construction) Pass Band DC-2850MHz

$ 88.95 USD

Part Numbers: LPF2850M

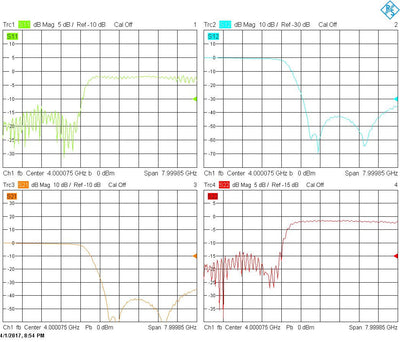

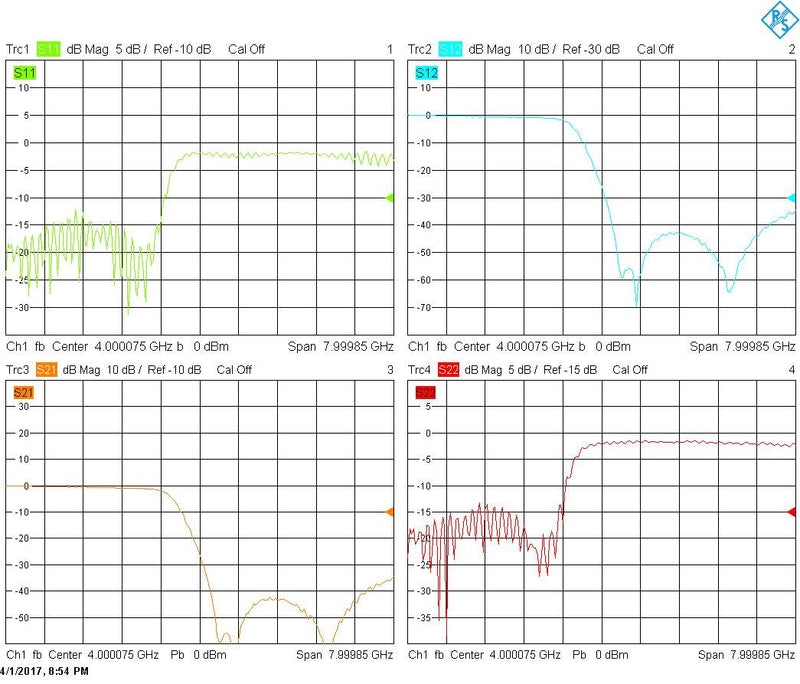

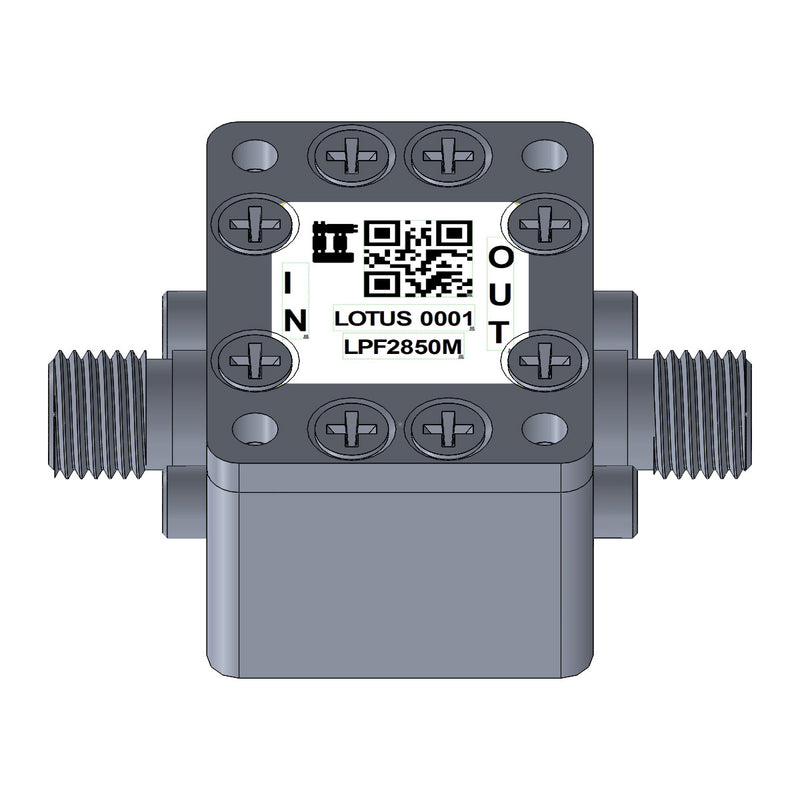

Enclosure uses RF Design Kit with dimension 0.9375"x0.75x0.59". S-Parameter of part measured on VNA (0 Hz to 8G Hz) is shown in third picture. SKU#: AK28_001AB.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).

Collections: Low Pass Filter

Features

Operational Temperature: -55 ~ 100℃
Temperature Stable
Cut Off Frequency: 2850M
RF Power Input: 9W max. at 25C, derate linearly to 0.25W at 100C
Insertion Loss in Pass Band: (1.5dB Max)
Stainless Steel SMA Female Connector
High Quality Rogers RO4350 RF PCB
ROHS Compliant

Applications

Harmonic Rejection
Transmitters / Receivers / SDR
Test Instrumentation

Resources (PDF Datasheet)

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png

LPF2850M Datasheet
