Low Pass Filter (LTCC Construction) Pass Band DC-2000MHz

Low Pass Filter (LTCC Construction) Pass Band DC-2000 MHz

Part Numbers:  LPF2000M

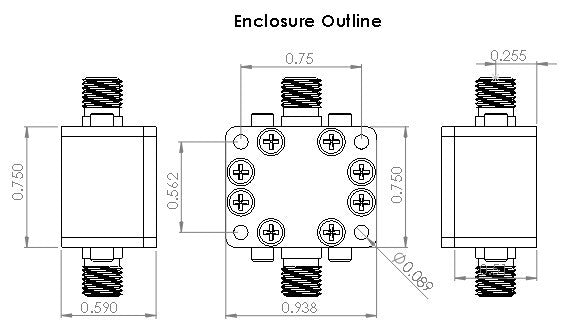

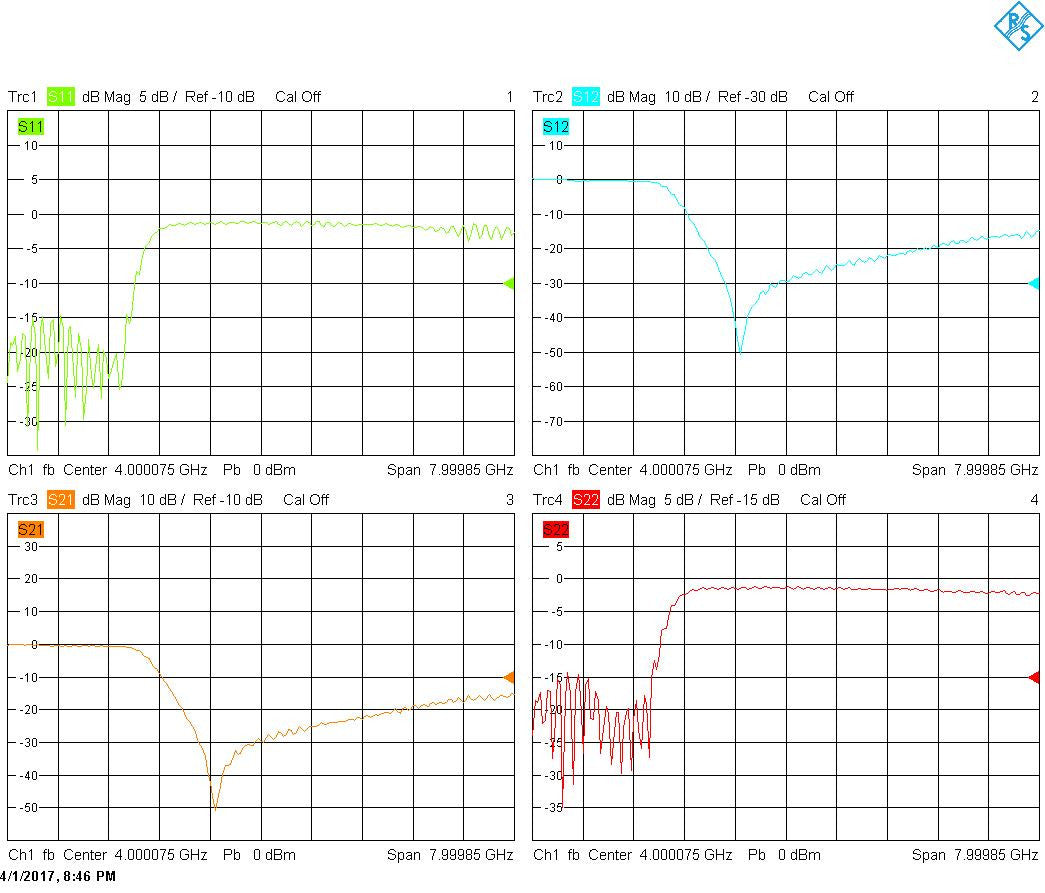

Enclosure uses RF Design Kitwith dimension 0.9375"x0.75"x0.59". S-Parameter of part measured on VNA (0 Hz to 8G Hz) is shown in third picture.

• Operational Temperature: -55 ~ 100C
• Temperature Stable

• Cut Off Frequency: 2000MHz
• RF Power Input: 9W max. at 25C, derate linearly to 0.25W at 100C

• Insertion Loss in Pass Band: (1.5dB Max)

• High Quality SMA Female Connector (Amphenol)
• High Quality RF PCB (Rogers 4350) -- Low loss and High Thermal Performance


Applications

• Harmonic Rejection
• Transmitters / Receivers / SDR
• Test Instrumentation

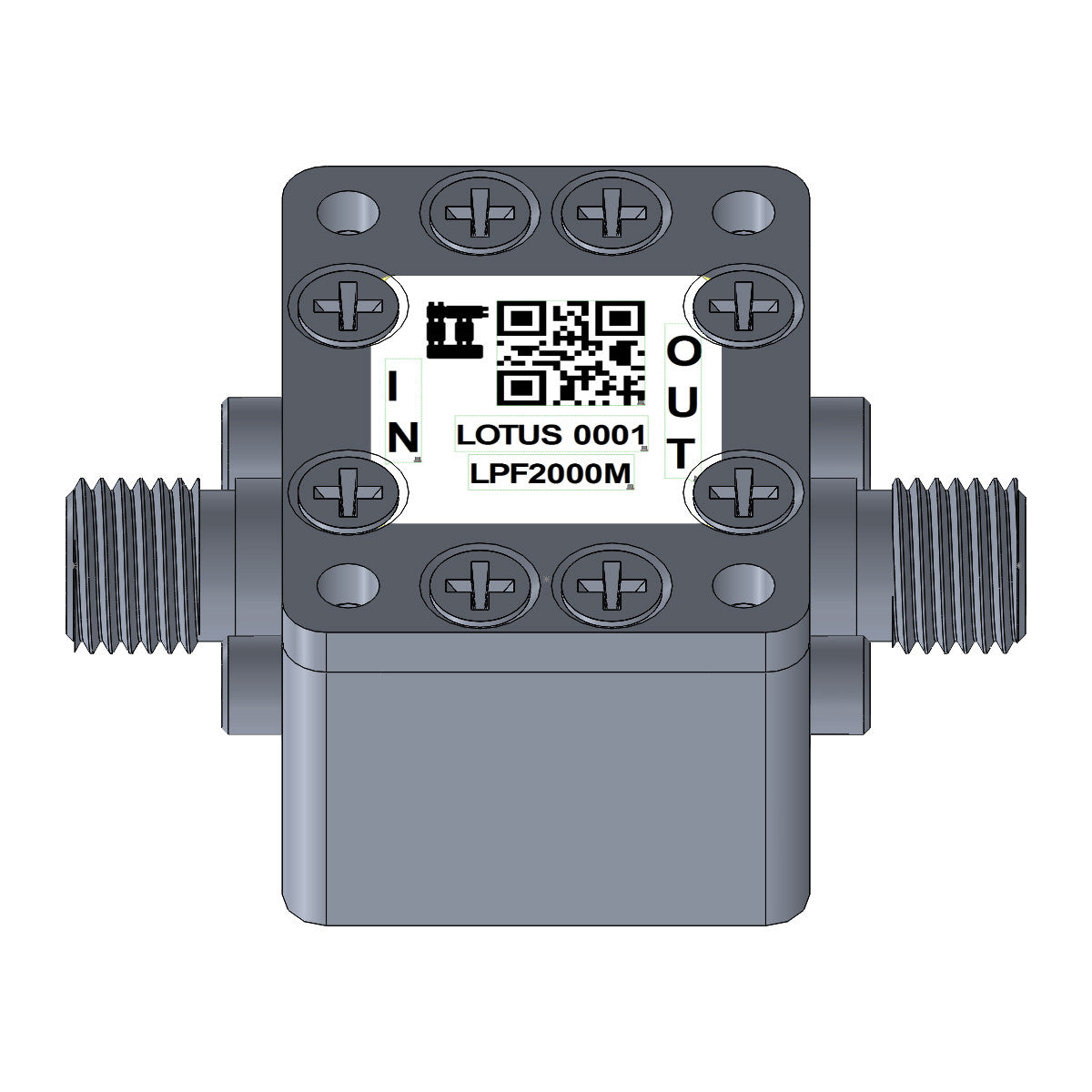

This LPF Module includes the RF Enclosure as shown in picture. SKU#: AK20-010D.

Proudly MADE IN USA.
