  • GPS/GNSS L1&L2 Filtered Inline Low Noise Amplifier 0.6dB NF 1.1G-1.7GHz 27dB Gain SMA

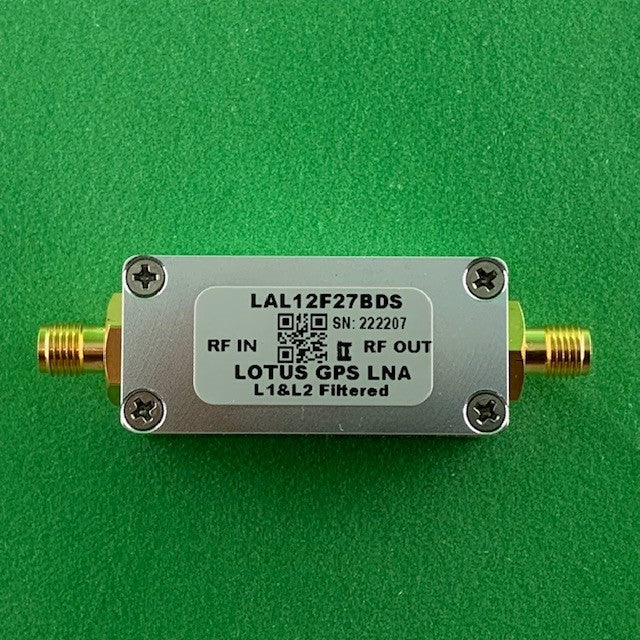

    Part Number: LAL12F27BDS is a high-linearity, high gain, ultra low current (34mA) and ultra low noise (0.65dB NF) amplifier in a ultra small 1.625”x0.75"x0.595” shielded RF enclosure.  The LNA provides a +/-1.5 dB flat gain for GPS L1 & L2 band. At 1227.6 MHz (L2), the amplifier typically provides 27 dB gain, +23.4 dBm OIP3, and 0.56 dB noise figure.  At 1575.42 MHz (L1), the LNA provides 24 dB gain and 0.65 dB noise figure.  The LNA can be biased from a single supply +5~+12V from output port. Listed pictures include Product Picture and S Parameter from 1.1G to 1.7GHz.

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com). SKU#: AK20-005Q.

    5 items left

    Features

    • Frequency Range: 1.1 to 1.7 GHz (L1 & L2 narrow band filtered)
    • Input Filtered for Out of Band Rejection
    • Noise Figure: 0.56 dB @ 1227.6 MHz
    • High Gain: 27 dB Gain at 1227.6 MHz
    • Output P1dB: +19.8 dBm CW
    • Ultra Low Current: 34mA
    • +23.4 dBm OIP3
    • +5~+15 VDC, Biasing through output connector
    • ROHS Compliant
    • Female SMA Connectors for RF Input and RF Output
    • EMI Shielding (including IP67 Waterproofing) option available

    Applications

    • GPS/GNSS
    • Test Instrumentation

    Resources (PDF Datasheet)
